Specifications

• ACCESSORIES
  • Stainless Steel Cleaner : Included
  • Griddle Accessory : JXGRIDL230 Included
• APPEARANCE
  • Color Appearance : Stainless Steel
  • Cooktop Burner Grate Color : Matte Black
  • Control Knobs : Dishwasher Safe, Stainless Steel Appearance, White LED Backlit
• FEATURES
  • Cooktop Burner Type : 5 Sealed
  • Valves (Degree of Turn) : 270
  • Burner - Right Rear : 5,000 BTU
  • Power Boil Burner : Yes
  • Control Location : Front Center
  • Cooktop Type : Continuous Grates
  • Burner - Center : 18,000 BTU Tri-ring Power Boil
  • Cooktop Surface : Deep Stainless Steel
  • Cooktop Control Features : Child Lock
  • Burner - Left Rear : 9,500 BTU
  • Cooktop Burner Grate Features : Continuous Grates, Dishwasher Safe, Edge-to-Edge Grates
  • Griddle : Cast Iron, JXGRIDL230
  • Ignition System : Electronic
  • Burner - Left Front : 9,500 BTU
  • Burner - Right Front : 12,000 BTU
  • Fuel Type : Natural Gas (factory set)
  • Control Type : Knob
  • Cooktop Burner Grate Material : Medium Cast
• FILTER
  • App Filter - Cooktop Type : Continuous Grates
  • App Filter - Fuel Type : Gas
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Control Type : Rotary knobs
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
• POWER / RATINGS
  • Burner BTU Ratings (000's/BTU) - Natural Gas : (1) 18.0; (1) 12.0; (2) 9.5; (1) 5.0
  • Volts/Hertz/Amps : 120V; 60Hz; 5A
  • Burner BTU Ratings (000's/BTU) - LP Gas : (1) 18.0; (1) 12.0; (2) 9.5; (1) 5.0
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Approximate Shipping Weight : 50 lb
  • Overall Width : 30 in
  • Net Weight : 44 lb
  • Overall Depth : 21 in
  • Cabinet Width : 30 in
  • Overall Height : 5.5 in
  • Cutout Depth (in) : 19 5/8 in
  • Cutout Width (in) : 28-1/2

Description

30'' built-in design for a sleek and seamless integration into your kitchen

Five burners, including a powerful tri-ring burner, for precise heat control

Extra-large integrated griddle for even heat distribution, perfect for pancakes, sandwiches, and more

Versatile cooking surface ideal for various techniques, from boiling to searing

Built-in structure maximizes countertop space while offering a modern aesthetic

Durable construction ensures long-lasting, reliable performance

Combines style, functionality, and convenience to enhance your cooking experience

Features

• 18,000-BTU Power Boil Tri-Ring Burner : 3-in-1 burner is designed to accelerate boiling and provide gentle simmering
• More Cooking, Less Cookware : Eliminate the need for extra cookware with an optional integrated griddle perfect for pancakes, grilled cheeses and other favorites
• Maximize Your Cooking Space : Continuous cast iron grates provide more room for large cookware
• Precise Simmer Burner : Protect delicate foods with low, even heating
• Spend Less Time Cleaning Up : Sealed cooktop burners contain spills and make cleaning quick and easy
• Dishwasher-Safe Grates : Heavy-duty grates are easy to clean in the dishwasher

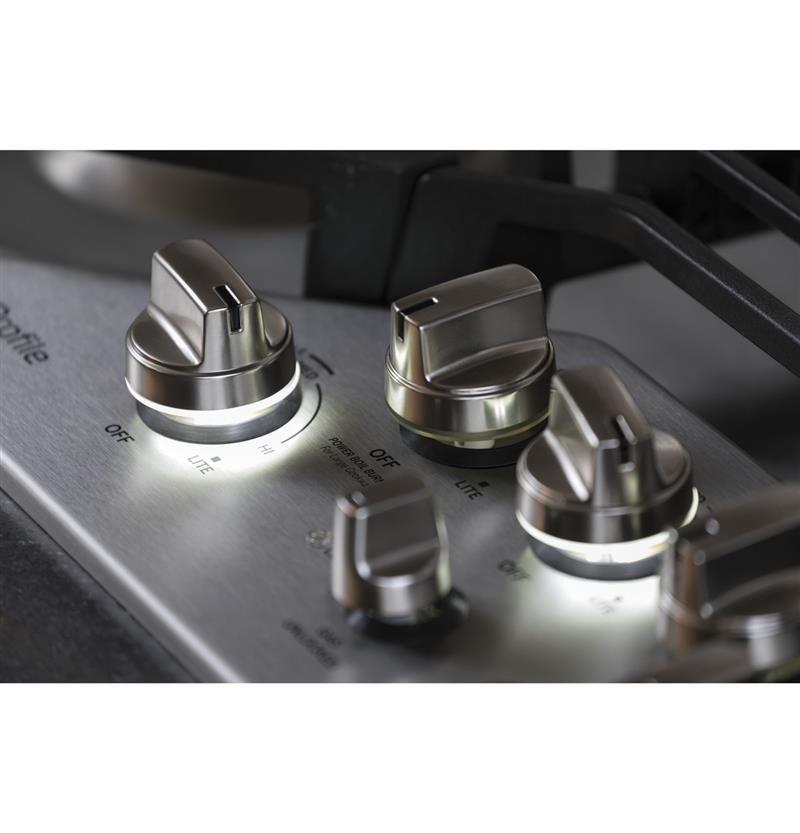

• White LED Backlit Heavy-Duty Knobs : Durable knobs are back-lit for a sleek appearance when burners are on
• Control Lock Capability : Protects against unintended activation
• MAX Burner System : Delivers the same maximum BTU power to propane and natural gas cooktops
• Fit Guarantee : Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
• Included Griddle JXGRIDL230
