Specifications

• ACCESSORIES
  • Optional 12' Drain Hose : Optional hose kit (WD24X10065)
• APPEARANCE
  • Handle Color : Black Stainless
  • Door Style : Long Door with Top Controls
  • Door Appearance : Full-length door
  • Handle : Towel Bar Handle with Dark Chrome accents and treated with Microban™ Antimicrobial Technology
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Color Appearance : Fingerprint Resistant Black Stainless
  • Control Panel Color : Matte Onyx Black treated with Microban™ Antimicrobial Technology
• ECONOMICAL / QUIET
  • Motor Type : Variable Speed
  • Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim
  • Door Insulation : Insulation, Mastic
  • Quiet Package : 39 dBA
  • Outer Wrap : Bitumen, Full-wrap Blanket
• FEATURES
  • Lower Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, 1 Rack handle, Ball-Tip Tines, Multi-Position Fold Down Tines
  • Wash System : 4-Level, 700 Series
  • Sensor : Clean Sensor
  • Additional Protection : Active Flood Protect, Leak Defense with Active Flood Protect
  • Number of Place Settings : 16
  • Latch : Pull with Handle
  • Number of Options : 15
  • Style : Built-In Top Control
  • Cutlery Tray : One piece removable 3rd rack
  • Rack Features : 1 Piece Silverware Basket with 3 Cell Covers, Adjustable Upper Rack, Ball-Tipped Tines, Blue cell covers treated with Microban™ Antimicrobial Technology, Fold-Down Tines - Lower, Fold-Down Tines - Upper
  • Racking Material : Nylon
  • Smart Assist : Yes
  • Floor Protection : Leak Defense with Active Flood Protect - Leak Pan with Sensor
  • OdorBlock Capabilities : Microban + UltraFresh Smart System
  • Rack Color : Silver
  • WiFi Connect : Built-In
  • Control Type : 8 Touchpads, Fingerprint Resistant Cap Touch Controls, Top Controls
  • Racking System : Full 3rd rack
  • Wash Arms : 3rd Rack, 4 Wash Levels, Bottle Jets, Deep Clean Silverware Jets, Lower, Middle, Upper
  • Wash System Features : 90+ Spray Jet Wash System, Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Deep Clean Silverware Jets, Drain Pump, Piranha™ Hard Food Disposer with removable filter, UltraFresh Smart System, Variable Speed Dual Pumps and Motors
  • Tub Type : Tall Tub
  • Water Filtration System : 100% Filtration with Piranha Hard Food Disposer and Removable Filter, Blue filters treated with Microban™ Antimicrobial Technology

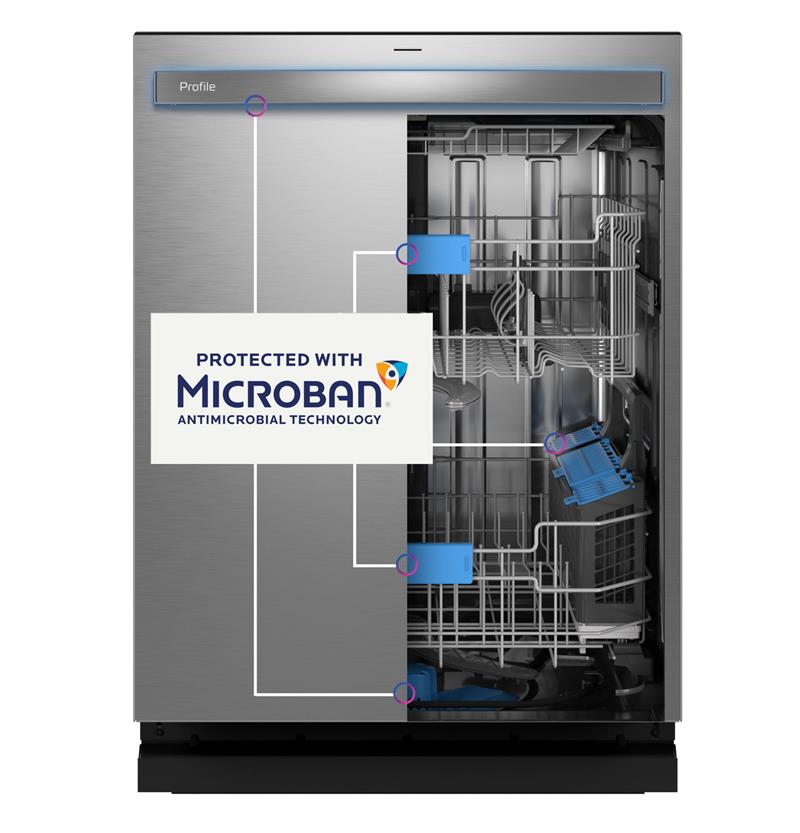

  • Microban™ Antimicrobial Treated Surfaces : Yes - Exterior Handle, Control Panel, Interior Rack Handles, Silverware Basket Cell Covers, Fine & Ultra Fine Filters
  • Upper Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, 1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines, Premium Height Adjustable, Smooth Glide Upper Rack
  • Sabbath Mode : Optional
  • Leveling System : 3 Point Leveling
  • OU Certified : No
  • Dishwasher Options : Bottle Wash (on app), Child Lock (on app), Delay Start 1-12 Hr., Sabbath Mode, Sani (Certified to NSF Standard 184), Start/Cancel, Steam PreWash, Twin-Turbo Dry Boost - High, Twin-Turbo Dry Boost - Normal Heated Dry, Twin-Turbo Dry Boost - Off, UltraFresh, Wash TempBoost, Wash Zones/Half Load (on app)
  • Dishwasher Cycles : 1 Hour Wash, AutoSense, Cascade Platinum Plus (on app), Custom (assigned to Rinse - reassignable on app), Heavy Wash, Normal Wash
  • Dispenser : Electronic Low Rinse Aid Sensor, Rinse Aid with Indicator and Adjustment
  • Top Rack/3rd Rack : Washing 3rd Rack with removable caddy
  • Exterior Style : Traditional
  • Dishwasher Drying Features : Heated Dry - On/Off, Twin Turbo Dry Boost™

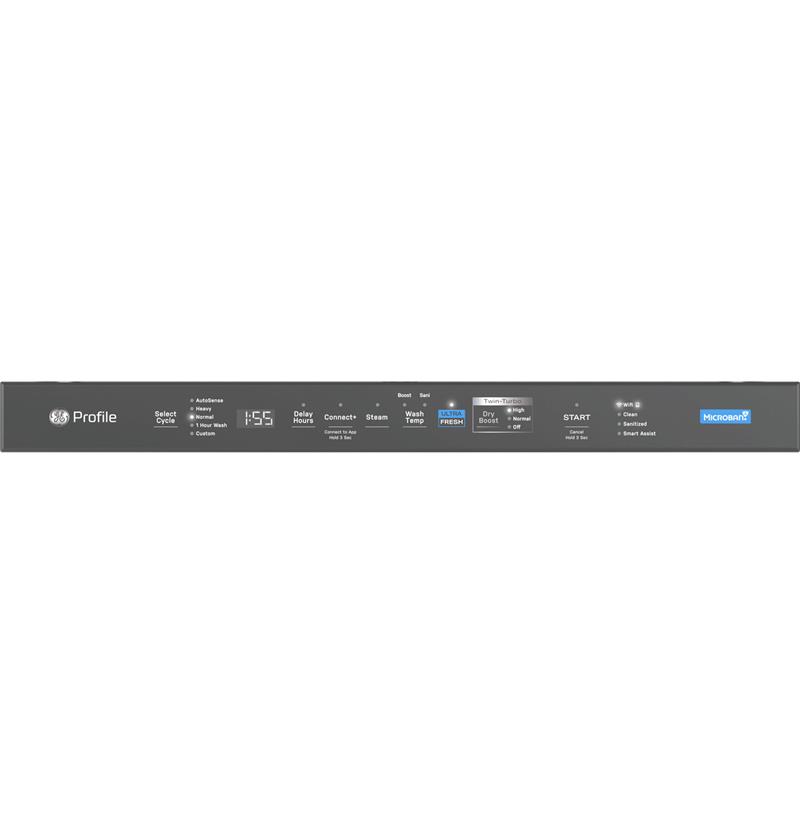

  • Dishwasher Control Features : 3 Digit Display Cycle Countdown with Notification Bar on door, Audible End-of-Cycle Signal, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory, White LEDs
  • Number of Cycles : 6
  • Tub and Door Liner : Stainless Steel
  • Showroom Power Mode : Yes
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 240
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Volts/Hertz/Amps : 120V; 60Hz; 6.6A
  • Calrod Heater Watts : 800/500
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Depth : 24 in
  • Overall Width : 23.75 in
  • Net Weight : 124 lb
  • Approximate Shipping Weight : 137 lb
  • Overall Height : 34 in
  • Overall Depth with Handle : 26.7 in
  • Cutout Depth (in) : 24 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Height w/ Legs Retracted - Minimum Height : 33.375 in
  • Cutout Height (in) : 33 1/2 in
  • Cutout Width (in) : 24 in
  • Cabinet Width : 24 in
  • Depth with Door Open : 27.5 in

Description

24-inch fully integrated smart dishwasher for a sleek, modern kitchen look.

16 place settings accommodate large loads for family-sized dishwashing.

39 dBa quiet operation ensures minimal noise during wash cycles.

6 wash cycles offer versatility for different cleaning needs.

3rd rack provides extra space for smaller items, maximizing load capacity.

Microban® Antimicrobial Technology helps reduce bacteria growth and ensures a cleaner wash.

Dry Boostâ„¢ feature provides better drying performance, even for plastic items.

NSF Certified for sanitization, meeting strict cleanliness standards.

ENERGY STAR® certified for energy efficiency, helping to reduce electricity costs.

Black stainless steel finish adds a stylish and modern touch to your kitchen

Features

• Deep Clean Washing 3rd Rack : This innovative third rack offers a flexible design that lets you clean a variety of items in a single load. Dedicated jets provide a targeted wash that removes stuck-on food from spatulas, ramekins, utensils and more for a next-level clean!
• 39 dBA Dishwasher : Get reliable wash performance and a deep clean without unwanted noise thanks to this super silent 39 dBA dishwasher.
• Smart Features Powered by SmartHQ™ : Built-In WiFi and the SmartHQ™ app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including customized cycles, remote status notifications and more.
• Smart Assist : Smart sensors continuously monitor and ensure optimal washing and drying performance throughout the life of your dishwasher. Receive alerts when regular maintenance is needed and address issues before they become a problem.
• Microban® Antimicrobial Technology : Enjoy longer lasting dishwasher protection thanks to Microban® Antimicrobial Technology. Built into high usage points to prevent bacteria growth, it keeps surfaces 99% cleaner than unprotected surfaces.
• UltraFresh System : Smart dishwasher algorithms introduce clean air and reduce moisture, refreshing the wash system to help prevent the growth of odor-causing bacteria. Interior filters are treated with Microban antimicrobial technology.
• Twin Turbo Dry Boost™ : The Twin Turbo Dry Boost™ system uses a smart dual wattage heater and 2 fans that work together to remove water from hard-to-dry items like plastics and sports bottles.
• Deep Clean Silverware Jets : A system of deep clean silverware jets blasts the silverware basket from the bottom up, targeting stuck-on foods to help eliminate the need for hand washing.
• 4 Bottle Wash Jets : This dishwasher with bottle jets ensures a targeted wash and deep clean for tall items, narrow glasses, jars and more. In the middle rack, each of the 4 bottle wash jets directs water and detergent inside to effectively wash hard-to-reach areas.
• Steam : Loosen tough soils with the Steam option before the wash cycle begins to avoid pre-rinsing or soaking items by hand.
• Sanitize : Enjoy piece of mind with a sanitization cycle that reduces up to 99.999% of bacteria on dishes.
• Leak Defense with Active Flood Protect : Leak Defense with Active Flood Protect senses and prevents potential overflows. A powerful water sensor alerts and guides you through the new Smart Assist feature if even a small amount of water leaks below the unit.
• Piranha™ Hard Food Disposer : The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
• Upper and Lower Rack Fold-Down Tines : Get next-level loading flexibility in this dishwasher. Adjust the upper and lower racks to accommodate any item thanks to multi-position, fold-down tines.
• Smooth-Glide Adjustable Middle Rack : This dishwasher with a smooth glide rack makes loading and unloading smooth and simple. The rack adjusts up or down to fit taller items and easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.
