Specifications

• ACCESSORIES
  • Optional 12' Drain Hose : Optional hose kit (WD24X10065)
• APPEARANCE
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Handle : Towel Bar Handle with Chrome accents and treated with Microban™ Antimicrobial Technology
  • Handle Color : Stainless Steel
  • Door Style : Long Door with Top Controls
  • Door Appearance : Full-length door
  • Color Appearance : Fingerprint Resistant Stainless
  • Control Panel Color : Matte Onyx Black treated with Microban™ Antimicrobial Technology
• ECONOMICAL / QUIET
  • Door Insulation : Insulation, Mastic
  • Outer Wrap : Bitumen, Full-wrap Blanket
  • Quiet Package : 42 dBA
  • Motor Type : Variable Speed
  • Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim
• FEATURES
  • Lower Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, Ball-Tip Tines
  • Leveling System : 4 Leveling Legs
  • OU Certified : No
  • Additional Protection : Active Flood Protect
  • Number of Place Settings : 16
  • Number of Options : 15
  • Water Filtration System : 100% Filtration with Piranha Hard Food Disposer and Removable Filter, Blue filters treated with Microban™ Antimicrobial Technology
  • Rack Features : 1 Piece Silverware Basket with 3 Cell Covers - Blue cell covers treated with Microban™ Antimicrobial Technology, Adjustable Upper Rack, Ball-Tipped Tines, Fold-Down Tines - Lower
  • Sensor : Clean Sensor
  • Tub Type : Tall Tub
  • Latch : Pull with Handle
  • Style : Built-In Top Control
  • Cutlery Tray : One piece removable 3rd rack
  • Dishwasher Cycles : 1 Hour Wash, AutoSense, Cascade Platinum Plus (on app), Custom (assigned to Rinse - reassignable on app), Heavy Wash, Normal Wash
  • Wash System : 4-Level, 700 Series
  • OdorBlock Capabilities : Microban + UltraFresh Smart System
  • Rack Color : Silver
  • Dispenser : Rinse Aid with Indicator and Adjustment
  • WiFi Connect : Built-In
  • EcoBalance Compatible : Yes
  • Control Type : 8 Touchpads, Fingerprint Resistant Cap Touch Controls, Top Controls
  • Racking System : Full 3rd rack
  • Dishwasher Drying Features : Heated Dry - On/Off, Multi-Wattage Wash & Dry Element, Normal, High, Off, Twin Turbo Dry Boost™
  • Wash Arms : 3rd Rack, 4 Wash Levels, Bottle Jets, Deep Clean Silverware Jets, Lower, Middle, Upper
  • Wash System Features : 90+ Spray Jet Wash System, Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Deep Clean Silverware Jets, Drain Pump, Piranha™ Hard Food Disposer with removable filter, UltraFresh Smart System, Variable Speed Dual Pumps and Motors
  • Dishwasher Options : Bottle Wash (on app), Child Lock (on app), Connect+ (assignable on app), Delay Start 1-12 Hr., FilterFresh (on app), Sabbath Mode, Sani (Certified to NSF Standard 184), Start/Cancel, Steam PreWash, Twin-Turbo Dry Boost - High, Twin-Turbo Dry Boost - Normal Heated Dry, Twin-Turbo Dry Boost - Off, UltraFresh, Wash TempBoost, Wash Zones/Half Load (on app)
  • Racking Material : Nylon
  • Smart Assist : Yes
  • Number of Cycles : 6
  • Upper Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, Ball-Tip Tines, Smooth Glide Upper Rack
  • Top Rack/3rd Rack : Washing 3rd Rack with removable caddy
  • Exterior Style : Traditional
  • Microban™ Antimicrobial Treated Surfaces : Yes - Exterior Handle, Control Panel, Interior Rack Handles, Silverware Basket Cell Covers, Fine & Ultra Fine Filters
  • Dishwasher Control Features : 3 Digit Display Cycle Countdown with Notification Bar on door, Audible End-of-Cycle Signal, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory, White LEDs
  • Tub and Door Liner : Stainless Steel
  • Sabbath Mode : Optional
  • Showroom Power Mode : Yes
• POWER / RATINGS
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Energy Consumption (kWh/year) : 240
  • Volts/Hertz/Amps : 120V; 60Hz; 6.6A
  • Calrod Heater Watts : 800/500
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Height w/ Legs Retracted - Minimum Height : 33.375 in
  • Cutout Width (in) : 24 in
  • Overall Depth : 24 in
  • Cabinet Width : 24 in
  • Net Weight : 105 lb
  • Overall Width : 23.75 in
  • Cutout Height (in) : 33 1/2 in
  • Overall Depth with Handle : 25.6 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Approximate Shipping Weight : 118 lb
  • Overall Height : 34 in
  • Cutout Depth (in) : 24 in
  • Depth with Door Open : 27.5 in

Description

ENERGY STAR Certified: Designed to meet ENERGY STAR standards, this dishwasher reduces water and energy consumption, helping you save on utility bills while maintaining powerful cleaning performance.

Smart UltraFresh System: Features advanced technology that ensures a deeper, more efficient clean with optimized wash cycles, removing tough stains and residues from dishes and cookware.

Microban Antimicrobial Technology: Built-in Microban technology helps prevent the growth of bacteria, mold, and mildew, keeping your dishwasher cleaner for longer and reducing odors.

Deep Clean Washing: Powerful water pressure and targeted cleaning ensure even the most heavily soiled dishes come out spotless, while still being gentle on delicate items.

3rd Rack: Adds extra space for utensils, small dishes, and more, making the most of your dishwasher’s capacity and allowing you to wash more in every load.

Ultra-Quiet Operation (42 dBA): Operates at a quiet 42 dBA, ensuring minimal noise during cycles, so you can run it any time without disturbing your home or household activities.

User-Friendly Smart Features: Easily integrates with smart home systems, allowing you to control and monitor the dishwasher remotely for added convenience and flexibility.

Sleek, Modern Design: The dishwasher's stylish, contemporary design seamlessly fits into any kitchen, offering a sophisticated look alongside advanced functionality.

Features

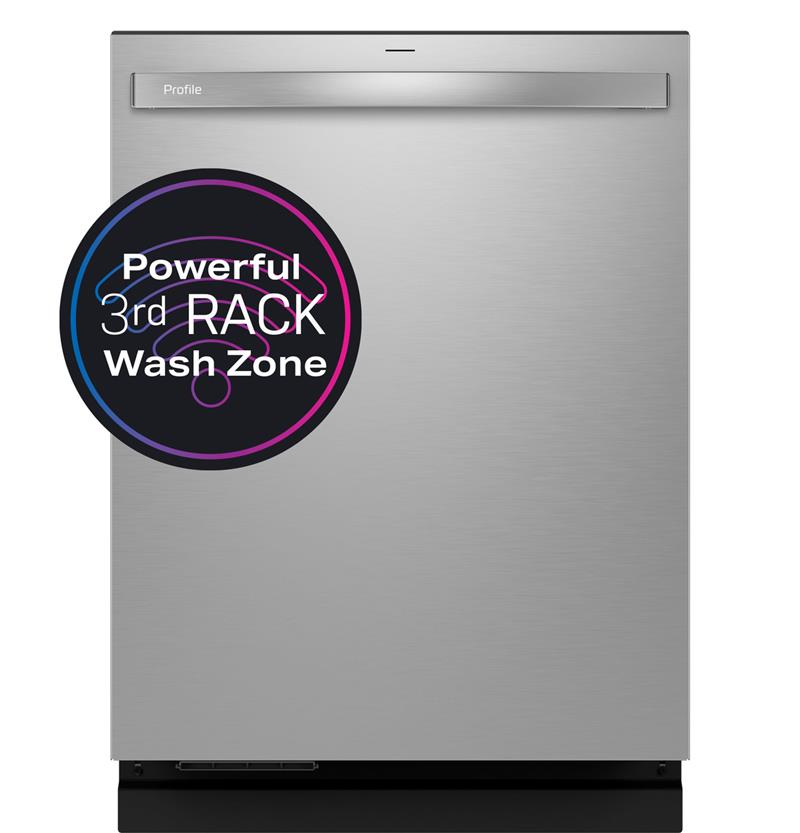

• Deep Clean Washing 3rd Rack : This innovative third rack offers a flexible design that lets you clean a variety of items in a single load. Dedicated jets provide a targeted wash that removes stuck-on food from spatulas, ramekins, utensils and more for a next-level clean!
• UltraFresh System : Smart dishwasher algorithms introduce clean air and reduce moisture, refreshing the wash system to help prevent the growth of odor-causing bacteria. Interior filters are treated with Microban antimicrobial technology.
• Twin Turbo Dry Boost™ : The Twin Turbo Dry Boost™ system uses a smart dual wattage heater and 2 fans that work together to remove water from hard-to-dry items like plastics and sports bottles.

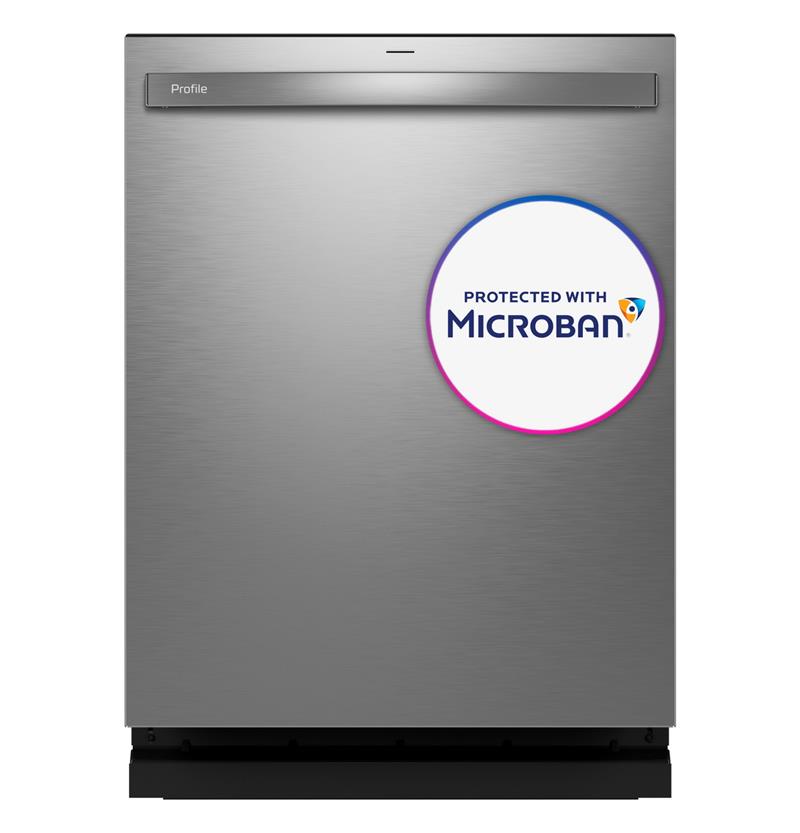

• Microban® Antimicrobial Technology : Enjoy longer lasting dishwasher protection thanks to Microban® Antimicrobial Technology. Built into high usage points to prevent bacteria growth, it keeps surfaces 99% cleaner than unprotected surfaces.
• Smart Features Powered by SmartHQ™ : Built-In WiFi and the SmartHQ™ app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including customized cycles, remote status notifications and more.
• Smart Assist : Smart sensors continuously monitor and ensure optimal washing and drying performance throughout the life of your dishwasher. Receive alerts when regular maintenance is needed and address issues before they become a problem.
• Deep Clean Silverware Jets : A system of deep clean silverware jets blasts the silverware basket from the bottom up, targeting stuck-on foods to help eliminate the need for hand washing.
• 4 Bottle Wash Jets : This dishwasher with bottle jets ensures a targeted wash and deep clean for tall items, narrow glasses, jars and more. In the middle rack, each of the 4 bottle wash jets directs water and detergent inside to effectively wash hard-to-reach areas.
• Steam : Loosen tough soils with the Steam option before the wash cycle begins to avoid pre-rinsing or soaking items by hand.
• Sanitize : Enjoy piece of mind with a sanitization cycle that reduces up to 99.999% of bacteria on dishes.
• Active Flood Protect : This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
• Lower Rack Fold-Down Tines : Get next-level loading flexibility in this dishwasher. Adjust the lower rack to accommodate any item thanks to multi-position, fold-down tines.
• Smooth-Glide Adjustable Middle Rack : This dishwasher with a smooth glide rack makes loading and unloading smooth and simple. The rack adjusts up or down to fit taller items and easily extends on stainless steel ball bearings, so you can make light work of even the heaviest loads.
• 42 dBA Dishwasher : Get reliable wash performance and a deep clean without unwanted noise thanks to this super silent 42 dBA dishwasher.
• Piranha™ Hard Food Disposer : The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged.
