Specifications

• ACCESSORIES
  • Optional 12' Drain Hose : Optional hose kit (WD24X10065)
• APPEARANCE
  • Handle : Towel Bar Handle with Chrome accents and treated with Microban™ Antimicrobial Technology
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Handle Color : Stainless Steel
  • Door Style : Long Door with Top Controls
  • Control Panel Color : Matte Onyx Black treated with Microban™ Antimicrobial Technology
  • Color Appearance : Fingerprint Resistant Stainless
  • Door Appearance : Full-length door
• ECONOMICAL / QUIET
  • Door Insulation : Insulation, Mastic
  • Motor Type : Variable Speed
  • Quiet Package : 44 dBA
  • Outer Wrap : Bitumen, Full-wrap Blanket
  • Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim
• FEATURES
  • Wash System : 3-Level, 700 Series
  • Sensor : Clean Sensor
  • OU Certified : No
  • Additional Protection : Active Flood Protect
  • Dishwasher Options : Bottle Jets, Child Lock (on app), Connect+ (assignable on app), Delay Start 1-12 Hr., Dry Boost™ (High), Dry Boost™ (Normal), Dry Boost™ (Off), FilterFresh (on app), Sabbath Mode, Sani (Certified to NSF Standard 184), Start/Cancel, Steam PreWash, Wash TempBoost, Wash Zones/Half Load (on app)
  • Latch : Pull with Handle
  • Exterior Style : Traditional
  • Dishwasher Control Features : 3 Digit Display Cycle Countdown with Notification Bar on door, Audible End-of-Cycle Signal, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory, White LEDs
  • Number of Cycles : 6
  • Sabbath Mode : Optional
  • Lower Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, Ball-Tip Tines
  • Number of Options : 14
  • Style : Built-In Top Control
  • Water Filtration System : 100% Filtration with Piranha Hard Food Disposer and Removable Filter, Blue filters treated with Microban™ Antimicrobial Technology
  • Cutlery Tray : One piece removable 3rd rack
  • Smart Assist : Yes
  • Control Type : 8 Touchpads, Fingerprint Resistant Cap Touch Controls, Top Controls
  • Racking System : Full 3rd rack
  • Dishwasher Drying Features : Dry Boost™, Multi-Wattage Wash & Dry Element, Normal, High, Off
  • Number of Place Settings : 16
  • Leveling System : 4 Leveling Legs
  • Top Rack/3rd Rack : 3rd Rack + Caddy
  • Microban™ Antimicrobial Treated Surfaces : Yes - Exterior Handle, Control Panel, Interior Rack Handles, Silverware Basket Cell Covers, Fine & Ultra Fine Filters
  • Tub Type : Tall Tub
  • Dishwasher Cycles : 1 Hour Wash, AutoSense, Cascade Platinum Plus (on app), Custom (assigned to Rinse - reassignable on app), Heavy Wash, Normal Wash
  • WiFi Connect : Built-In
  • Wash Arms : 3 Wash Levels, Bottle Jets, Deep Clean Silverware Jets, Lower, Middle, Upper
  • Wash System Features : 90+ Spray Jet Wash System, Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Deep Clean Silverware Jets, Drain Pump, Piranha™ Hard Food Disposer with removable filter, Variable Speed Dual Pumps and Motors
  • Showroom Power Mode : Yes
  • Rack Features : 1 Piece Silverware Basket with 3 Cell Covers, Adjustable Upper Rack, Ball-Tipped Tines, Blue cell covers treated with Microban™ Antimicrobial Technology, Fold-Down Tines - Lower
  • Racking Material : Nylon
  • OdorBlock Capabilities : Microban + FilterFresh
  • Rack Color : Silver
  • Upper Rack : 1 Blue rack handle treated with Microban™ Antimicrobial Technology, Ball-Tip Tines, Smooth Glide Upper Rack
  • Tub and Door Liner : Stainless Steel
  • Dispenser : Rinse Aid with Indicator and Adjustment
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 240
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Calrod Heater Watts : 800/500
  • Volts/Hertz/Amps : 120V; 60Hz; 6.6A
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Cutout Width (in) : 24 in
  • Cutout Depth (in) : 24 in
  • Overall Depth : 24 in
  • Cabinet Width : 24 in
  • Net Weight : 105 lb
  • Height w/ Legs Retracted - Minimum Height : 33.375 in
  • Cutout Height (in) : 33 1/2 in
  • Overall Height : 34 in
  • Overall Width : 23.75 in
  • Overall Depth with Handle : 25.6 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Depth with Door Open : 27.5 in
  • Approximate Shipping Weight : 118 lb

Description

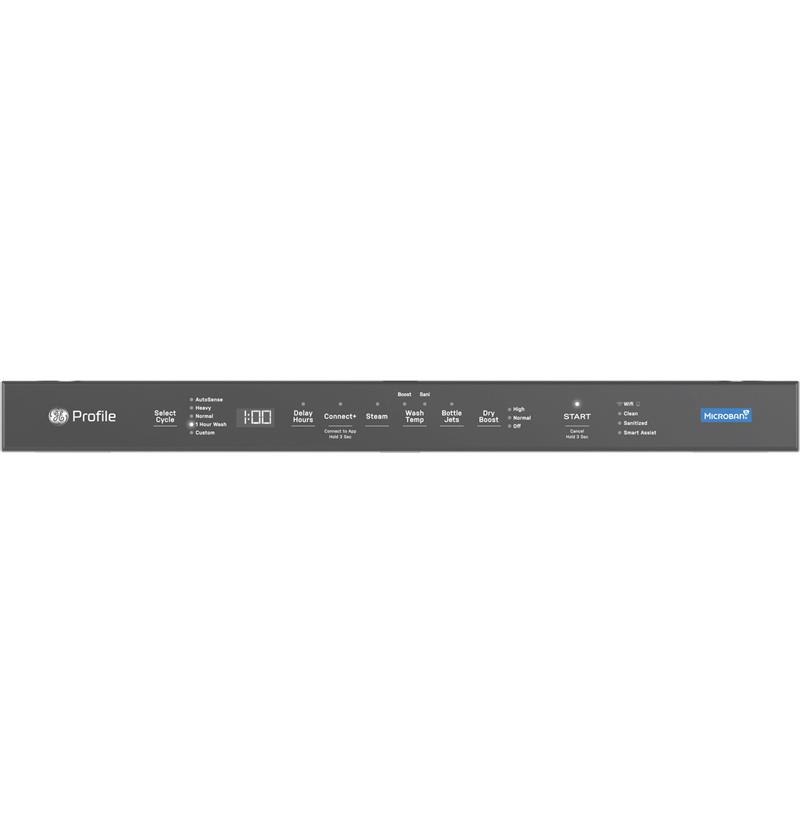

Fingerprint Resistant Top Control Panel: Sleek, top-mounted control panel resists fingerprints, ensuring a clean, polished appearance while providing easy access to all settings and wash cycles.

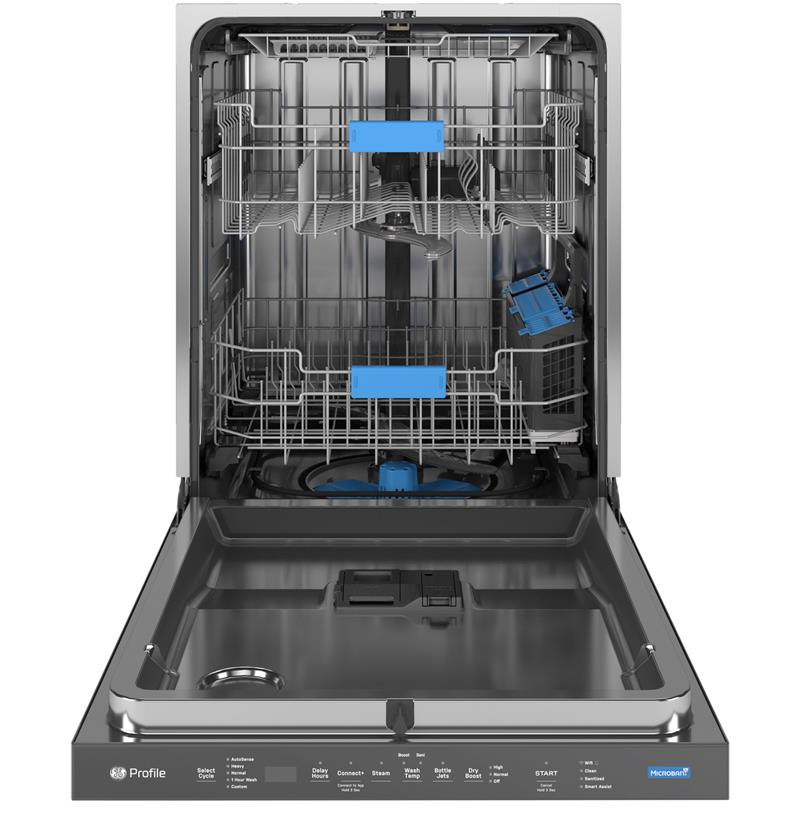

Stainless Steel Interior: Durable and resistant to stains, the stainless steel interior offers long-lasting performance and a professional, modern look.

Microban Antimicrobial Technology: Built-in Microban technology prevents the growth of bacteria, mold, and mildew, helping to keep your dishwasher cleaner for longer and reducing odors.

Sanitize Cycle: Effectively eliminates harmful bacteria and germs, ensuring your dishes are sanitized and hygienically safe.

Multiple Wash Cycles: Offers a variety of wash cycles to handle different dishwashing needs, from heavy-duty cleaning to delicate washes for fragile items.

Quiet Operation: Designed for minimal noise, providing a peaceful environment and allowing you to run the dishwasher without disturbing your household.

Energy Efficient: Reduces water and electricity consumption, helping lower utility bills while still delivering powerful cleaning performance.

User-Friendly Controls: Intuitive, top-mounted control panel for easy selection and customization of wash cycles, ensuring a hassle-free dishwashing experience.

Modern Design: Fingerprint-resistant finish and stainless steel interior create a sleek, contemporary look that complements any kitchen décor.

Features

• Microban® Antimicrobial Technology : Enjoy longer-lasting dishwasher protection thanks to Microban® Antimicrobial Technology. Built into high-usage touchpoints to help prevent bacteria growth, it keeps protected surfaces 99% cleaner than unprotected surfaces
• Dry Boost™ : Dry Boost™ technology outperforms standard heated-dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry
• Smart Features Powered by SmartHQ™ : Built-In WiFi and the SmartHQ™ app make it easy to connect, control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features, including customized cycles, remote status notifications and more
• Smart Assist : Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time
• Deep Clean Silverware Jets : A system of deep clean silverware jets blasts the silverware basket from the bottom up, removing all stuck-on foods and providing sparkling results
• Third Rack with Removable Silverware Caddy : The versatile third rack was redesigned to load more than just silverware with additional space for unique items
• Active Flood Protect : To prevent potential overflows, a sensor detects when the water is too high and pumps it out until a safe level is reached
• 4 Bottle Wash Jets : This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the 4 bottle wash jets directs water and detergent inside to effectively wash hard-to-reach areas
• Steam + Sani : Save time with a high-temperature cycle that steams and sanitizes to loosen tough soils before the wash cycle begins, reducing bacteria by 99.999% without pre-rinsing or soaking
• Piranha™ Hard Food Disposer : The Piranha™ Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate to pulverize food particles and an anti-jamming design makes sure wash arms stay unclogged
• 44 dBA Dishwasher : Get reliable wash performance and a deep clean without unwanted noise thanks to this super-silent 44 dBA dishwasher
• Extra-Large Capacity : Have enough space for 16 place settings and large dishware in this extra-large capacity dishwasher, making cleanup after large gatherings a breeze
• Notification Bar : Always know the status of your clean with this notification display dishwasher feature. A bright bar illuminates different colors to indicate the status of the cycle
