Specifications

• APPEARANCE
  • Handle : Pocket Handle
  • Door Style : Stainless Full-Length Flat Door
  • Handle Design : Recessed
  • Color Appearance : Stainless Steel
  • Handle Color : Stainless Steel
• ECONOMICAL / QUIET
  • Door Insulation : Insulation, Mastic
  • Quiet Package : 47 dBA
  • Motor Type : Single Speed
  • Quiet Features : Sealed Toe Kick, Tub Collar Trim
  • Outer Wrap : U-Blanket
• FEATURES
  • Number of Options : 5
  • Style : Built-In Top Control Spacemaker
  • Water Filtration System : 3-Stage Manual Clean Filtration
  • Lower Rack : 1 Rack handle, Nylon
  • Number of Place Settings : 8
  • Dishwasher Options : Child Lock, Delay Start 1-12 Hr., Sani (Certified to NSF Standard 184), Start/Reset, TempBoost
  • Leveling System : Leveling Legs
  • Rack Features : 1 Piece Mid Silverware Basket w/ 1 Cell Cover, 1 Plastic Utility Shelf - Upper, Ball-Tipped Tines, Fold-Down Tines - Lower, Stem Safe
  • Dishwasher Cycles : AutoSense, Heavy Wash, Light Wash
  • RV Ready : Yes
  • Wash System : 3-Level, Standard
  • Sensor : Clean Sensor
  • WiFi Connect : Optional (Requires part no. PBX23W00Y0)
  • Racking System : Gray
  • Dishwasher Drying Features : Condensate Dry
  • Wash Arms : 2 with Upper Nozzle
  • Connected Capabilities : Amazon Alexa, IFTTT, Sonos, The Google Assistant

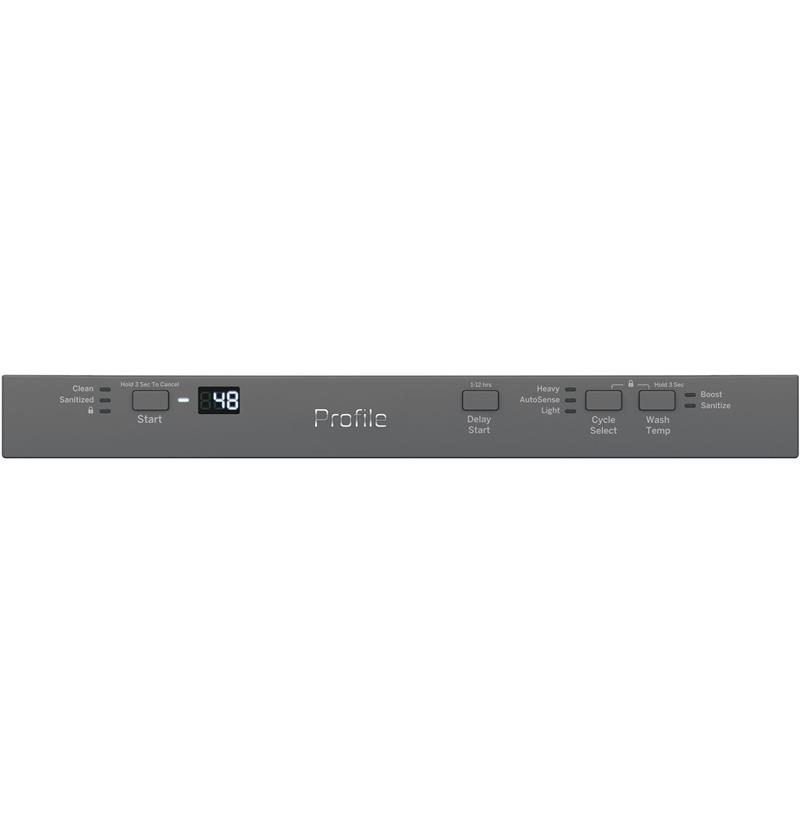

  • Dishwasher Control Features : 3 Digit Countdown Display with 1 "Clean" light / 1 "Sanitized" light Cycle Progress Indicators, Audible End-of-Cycle Signal, Cycle Countdown, Last Cycle Memory, Start/Reset Pad
  • Latch : Center Pull
  • Wash System Features : Automatic HotStart, Automatic Temperature Control, Dual Pump, Flood Control System, Piranha™ Hard Food Disposer
  • Number of Cycles : 3
  • Tub and Door Liner : Stainless Steel
  • Control Type : 4 Pushbuttons, Fully Integrated Electronic, Top Controls
  • Dispenser : Rinse Aid with Indicator and Adjustment
  • Exterior Style : 18" Wide
  • Upper Rack : 1 Rack handle, Adjustable, Nylon
• FILTER
  • App Filter - Cabinet Width : Dish Compact 18 in.
  • App Filter - Stainless Steel Interior : Yes
  • App Filter - WiFi Connect : Optional
  • App Filter - Food Disposer : Yes
  • App Filter - Product Type : Dish Built-In Top Control
  • App Filter - Bottle Wash : No
• POWER / RATINGS
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Energy Consumption (kWh/year) : 240
  • Electrical Requirements : 120V ; 60 Hz ; 8.9 A
  • Calrod Heater Watts : 1100
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Depth : 22.5 in
  • Cabinet Width : 18 in
  • Height w/ Legs Retracted - Minimum Height : 32.5 in
  • Cutout Height (in) : 32 1/2 in
  • Net Weight : 71.2 lb
  • Overall Width : 17.75 in
  • Overall Height : 32.5 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Depth with Door Open : 23.125 in
  • Cutout Width (in) : 18 in
  • Cutout Depth (in) : 24 in
  • Approximate Shipping Weight : 83.2 lb

Description

18'' ADA-compliant design, ensuring accessibility for individuals with disabilities

Durable stainless steel interior for a sleek, modern look and long-lasting reliability

Includes a sanitize cycle for effective cleaning and sanitizing of dishes

Compact size perfect for smaller kitchens or spaces, offering powerful cleaning performance

Quiet operation, ideal for homes or businesses seeking efficient and peaceful dishwashing

Designed to meet ADA compliance, providing both functionality and style in a space-saving unit

Features

• ADA Compliant with Low-Profile Installation : Great for 34” counter top heights and raised subfloors
• 3-Level Wash : Expect exceptionally clean table-ready dishes with powerful wash arms
• Autosense Cycle : A beam of light measures soil levels and water temperature to adjust to the ideal cycle time
• Piranha™ hard food disposer with removable filter : To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms
• Sanitize option (NSF Certified) : High-temperature rinse sanitizes and reduces by 99.999% the bacteria found on dishes
• Quiet Package : dBA 47, dramatically reduces the sound of washing the dishes
