Specifications

• ACCESSORIES
  • Optional Accessories : WB48X20990 Roller Rack
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • LP Conversion Kit : Included
  • Trim Kit : JXFILLR1SS, Optional
• APPEARANCE
  • Handle : Designer Style
  • Cooktop Burner Grate Color : Matte Black
  • Installation : Flush Appearance, Free-standing cut-out
  • Oven Door Features : Big View Oven Window
  • Control Knobs : Stainless Steel Appearance, Weighted
  • Color Appearance : Fingerprint Resistant Stainless
  • Handle Color : Stainless Steel
• CAPACITY
  • Total Capacity (cubic feet) : 5.7 cu ft
• FEATURES
  • Ignition System : Electronic
  • Oven Interior : 1 Incandescent Light, Black
  • Oven Rack Features : 3 Self-Clean Oven Racks
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Self-Clean, Steam Clean
  • Griddle : Reversible Cast Grill/Griddle
  • Cooktop Type : Standard Grates
  • Burner - Right Rear : 9,500 BTU
  • Oven Control Features : Audible Preheat Signal, Auto Recipe Conversion, Auto Self Clean, Certified Sabbath Mode, Control Lock Capability, Convection Bake, Convection Roast, Dual Broil, Electronic Clock & Kitchen Timer, Front Controls, In-Oven Broiling, Temperature Probe
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • Product Type : Slide-In Single Oven
  • WiFi Enabled Features : Baked Goods, Convection Roast, Enhanced Temp Probe, Frozen Pizza Multi Rack, Frozen Pizza Single Rack, Frozen Snacks Multi Rack, Frozen Snacks Single Rack, No Preheat Air Fry, Remote Control, Remote Notifications, Scan To Cook (Oven)
  • Cooktop Burner Grate Material : Heavy Cast Iron
  • Fuel Type : Dual Fuel
  • Burner - Center : 9,500 BTU Dual Oval
  • Dual Ring Burners : Yes
  • WiFi Connect : Built-In
  • Burner - Left Front : 21,000 BTU Tri-ring Burner
  • Cooktop Burner Type : Sealed
  • Cooktop Surface : Deep Recessed, Edge-to-Edge, Stainless Steel
  • Drawer Type : Storage
  • Sabbath Mode : Yes
  • Cooking Technology : True European Convection with Precise Air
  • Configuration : Range with Smooth Glide Storage Drawer
  • OU Certified : No
  • Burner - Right Front : 15,000 BTU
  • Self-Clean Oven Door Lock : Automatic
  • Cooktop Burner Grate Features : Edge-to-Edge Grates
  • Oven Cooking Modes : Bake, Broil, Convection Bake, No Preheat Air Fry, Proof, Warming
  • Grill : Included, JXGRILL1
  • Control Type : Glass Touch
• FILTER
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Product Type : Ranges Slide-In Single Oven
  • App Filter - Fuel Type : Dual Fuel
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Convection : Yes
  • App Filter - Drawer Type : Storage
  • App Filter - Cooking Technology : Convection
  • App Filter - Cleaning Type : Steam and Self-Clean
  • App Filter - Cooktop Type : Standard Grates
• POWER / RATINGS
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 (1) 15.0; (2) 9.5; (1)5.0
  • Volts/Hertz/Amps : 208/240V; 60Hz; 30A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0
  • Amp Rating at 208V : 30
  • Broiler Wattage : 4000W
  • Amp Rating at 240V : 30
  • KW Rating at 240V : 3.6
  • KW Rating at 208V : 2.7
  • Power Connection : Power Cord - Not Included
  • Bake Wattage : 2850W
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 236 lb
  • Depth Without Handle : 26.875 in
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 256 lb
  • Overall Width : 30 in
  • Cabinet Opening : 30 in
  • Overall Height : 36.5 in
  • Depth with Door Open : 47.5 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 19 x 20-5/8
  • Overall Depth : 29.5 in
  • Height to Top of Rear Vent Trim : 37.625 in

Description

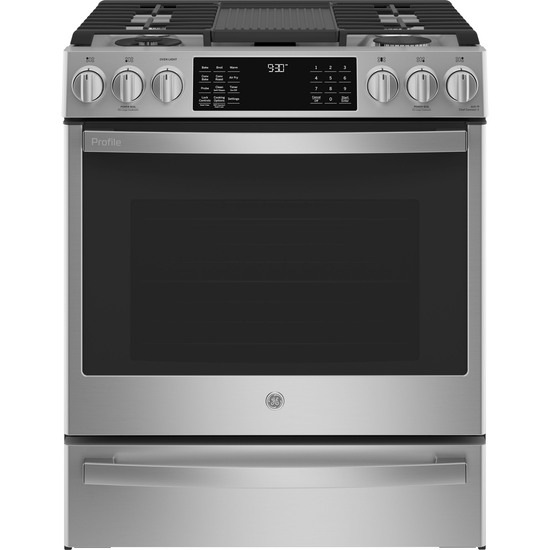

30-inch dual fuel smart range offers a combination of gas burners and an electric oven for versatile cooking.

Five sealed burners, including a tri-ring burner, provide precise heat control for various cooking needs.

5.7 cu. ft. oven capacity accommodates large meals with ease.

True Convection with Precise Air ensures even baking and roasting for consistent results.

Air Fry feature allows for healthier cooking without oil for crispy, delicious dishes.

Steam & Self Clean functions simplify oven maintenance, making cleaning effortless.

Wi-Fi connectivity enables remote monitoring and control via a smartphone or smart device.

Reversible Grill-Griddle offers flexible cooking options for grilling and griddling.

CSA certified, ensuring safe and reliable operation.

Enhanced Shabbos Mode capable to accommodate specific religious practices.

ADA compliant design ensures accessibility for all users.

Storage drawer provides additional space for kitchen essentials

Features

• No Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Built-In WiFi, Powered by SmartHQ App : Connect, control and manage your oven from anywhere with your smartphone or tablet (Select features require WiFi Connection) See details
• GE Profile Connect + : Ensure your oven always has the latest features, like new Air Fry modes, with downloadable software upgrades
• Fingerprint resistant stainless : Easily wipe away smudges and fingerprints for a look that's always sparkling clean
• Fit Guarantee : This dual fuel range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300. https://www.geappliances.com/content/pdfs/GE_Appliances_Fit_Guarantee_2H2023.pdf
• Edge-to-edge cooktop : Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
• Tri-ring burner : A versatile burner offers three different-sized flame rings on a single burner element, so it's like having three burners in one
• Reversible grill and griddle : This extra-large, reversible griddle and grill combination lets you enjoy the best in cooking versatility
• Dual purpose center burner : This flexible gas cooktop burner lets you choose between round and oval burner shapes

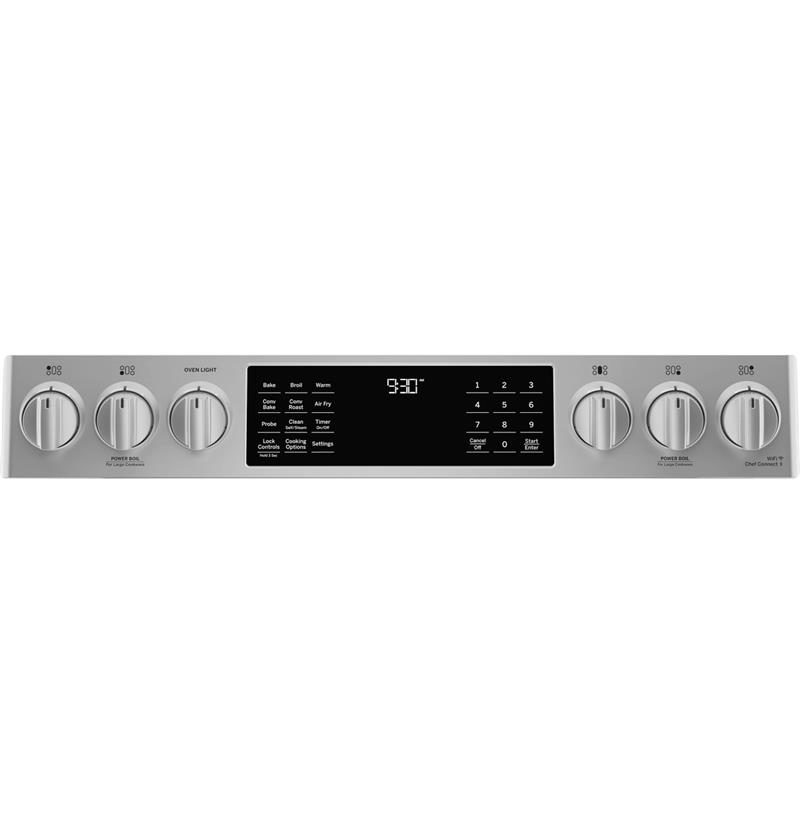

• Backlit glass touch controls : Backlit touch controls give this oven a high-tech look with a display that disappears when not in use and reappears when touched
• Synchronized clocks and lights : Synchronize your oven and GE Appliances over-the-range microwave so that clocks are always matching and lights automatically come on when a burner is activated with Chef Connect
• True Convection with Precise Air : This oven features True Convection, an advanced convection system that uses a third heating element and reversing fan for the highest level of heat and air circulation
• Never-scrub oven racks : These durable oven racks can be left in the oven during the self-clean cycle so you never have to scrub
• Precision temperature probe : An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
• Self-clean with steam clean : This self-cleaning oven uses optional steam cleaning for light soils to clean the oven cavity with less heat and odor
