Specifications

• Certifications and Approvals
  • CEE Tier : Tier 1
  • ENERGY STAR Certified : Yes
  • NSF Certified : Yes
  • UL Listed : Yes
  • ETL Listed : Yes
  • ADA Compliant : No
  • cUL Listed : Yes

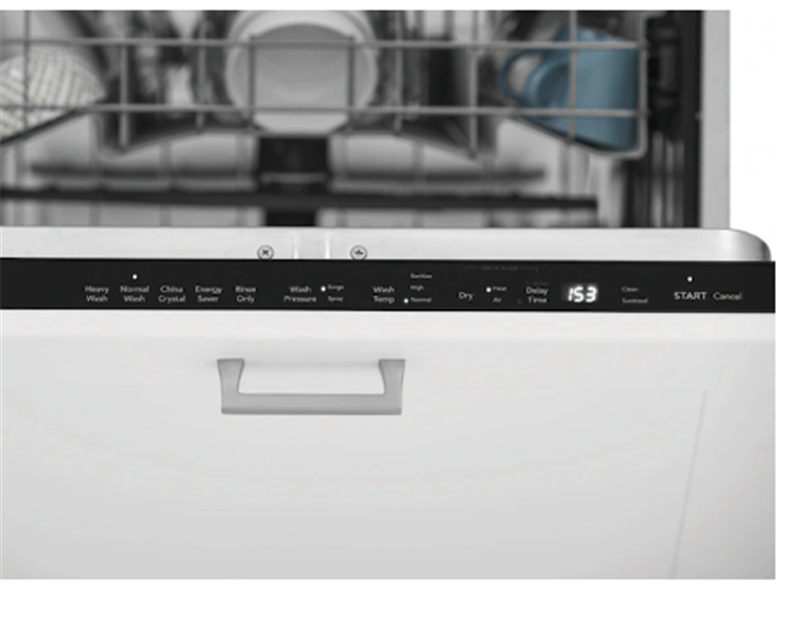

• Controls
  • Control Location : Top
  • Digital Display : No
  • Delay Start Hours : 1-24 Hours
• Dimensions and Volume
  • Minimum Height : 33 3/4"
  • Depth With Door Open : 50 1/4"
• Dishwasher
  • Automatic Temperature Control : Yes
  • Detergent Dispenser : Yes
  • Hard Food Disposer or Filtration : Yes
  • Place Setting Capacity : 14
  • Rinse Aid Dispenser : Yes
  • Smart Soil Sensor : Yes
  • Lower Spray Arm : Blade
  • Middle Spray Arm : Bi-Beam
  • Upper Spray Arm : Spray Arm
  • Tub Material : Stainless Steel
  • Wash Levels : 5
  • Wash System : Direct Feed
  • Filter Trap : Removable
  • Motor Speeds : Multi-Speed
  • Tub Design : Tall Tub
  • Filter Material : Stainless Steel
  • Water Pressure : 120 psi
  • Filtered Water : 100 %
  • Tub Color : Stainless Steel
• Dishwasher Cycles
  • China Crystal : Yes
  • Heavy : Yes
  • Number of Cycles : 5
  • Rinse Only : Yes
  • Energy Saver : Yes
  • Normal : Yes
• Dishwasher Options
  • Dry - Max : No
  • Washing Temperature - High : Yes
  • Washing Temperature - Normal : Yes
  • Drying System : Even Dry
  • High Temperature : No
  • Start/Cancel : Yes
  • Dry - Air : Yes
  • Dry - Heat : Yes
  • Washing Temperature - Sanitize : Yes
• Electrical Specifications
  • Amps @ 120 Volts : 15 Amps
  • Voltage Rating : 120 V
• Exterior
  • Panel Ready : Yes
• General Specifications
  • Sound Level : 49 dBA
  • Product Weight : 85 lbs
  • Warranty - Parts : 1 Year
  • Annual Energy : 240 kWh
  • Prop 65 Label : No
  • Warranty - Labor : 1 Year
• Installation
  • Number of Leveling Legs : 3
• Lower Rack
  • Number of Silverware Basket : 1
  • Number of Silverware Basket Lids : 2
  • Rack Type : Deluxe
  • Rack Coating : Nylon
• Third Level Rack
  • Third Level Rack : Yes
• Upper Rack
  • Rack Coating : Nylon
  • Cup Shelf : Yes
  • Rack Type : Deluxe
  • Stemware Holder : Yes
  • Targeted Wash Zone : No

Description

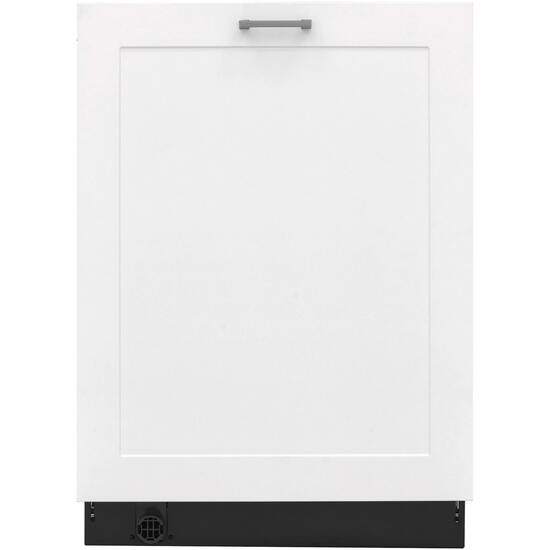

• 24-Inch Fully Integrated Panel Ready Design: Seamlessly blends into your kitchen cabinetry for a sleek, modern appearance.
• 14 Place Settings Capacity: Ideal for medium to large households, offering ample space for all your dishwashing needs.
• 49 dBA Operation: Quiet performance ensures minimal noise while delivering powerful cleaning results.
• 5 Wash Cycles: Provides a range of options to tackle different types of dishwashing needs, from delicate glassware to heavily soiled dishes.
• Nylon Racks: Durable and flexible racks that offer easy loading and unloading while accommodating various dish sizes.
• DishSense® Technology: Automatically adjusts the wash cycle based on soil level, ensuring optimal cleaning efficiency.
• EvenDryâ„¢ Technology: Ensures thorough drying, even for plastic items, preventing spots and residues.
• BladeSpray® Arm: Provides precise water coverage, delivering an effective and thorough cleaning of all your dishes.
• NSF® Certified Sanitize Option: Guarantees the highest level of sanitation, meeting professional standards for dish cleanliness.
• ENERGY STAR® Certified: Energy-efficient operation reduces utility costs while maintaining excellent cleaning performance.

Features

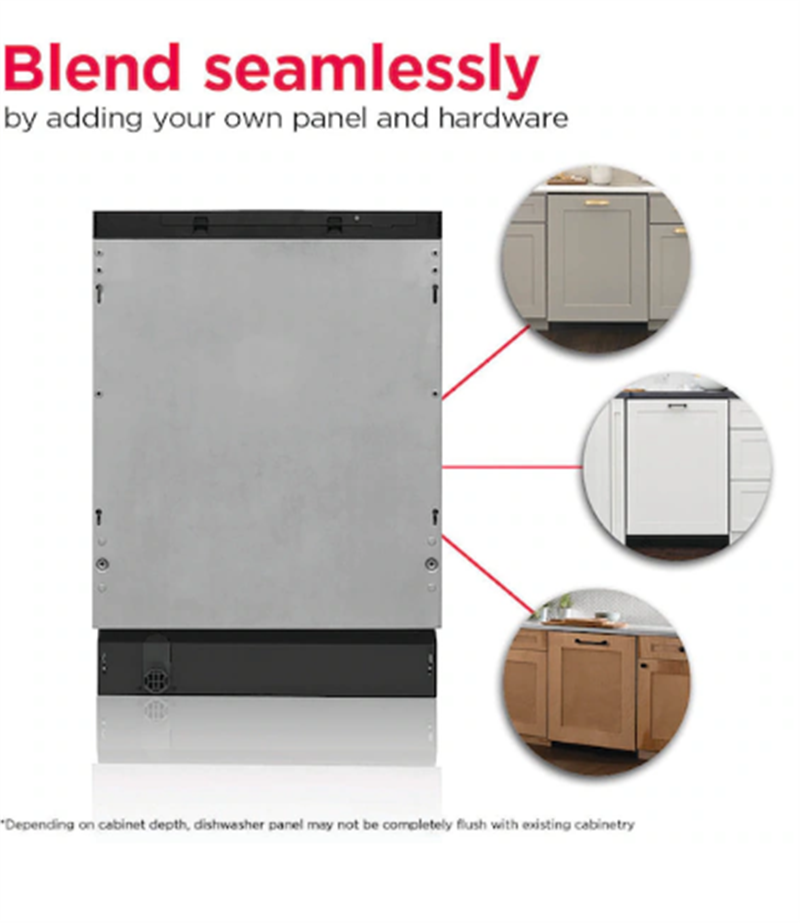

• Install a custom front panel and handle (not included) over the dishwasher door to effortlessly create a built-in look that blends into your kitchen cabinetry.
• Unlike traditional spray arms, our BladeSpray® arm rotates in two directions, so you get better water coverage that reaches every corner.

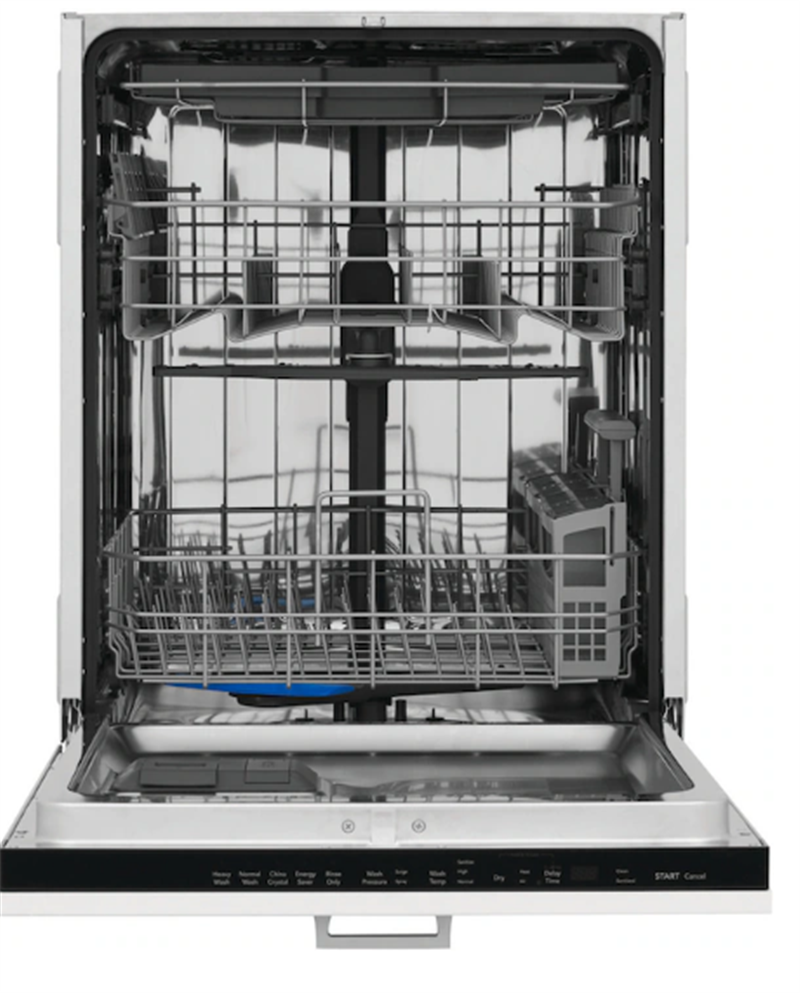

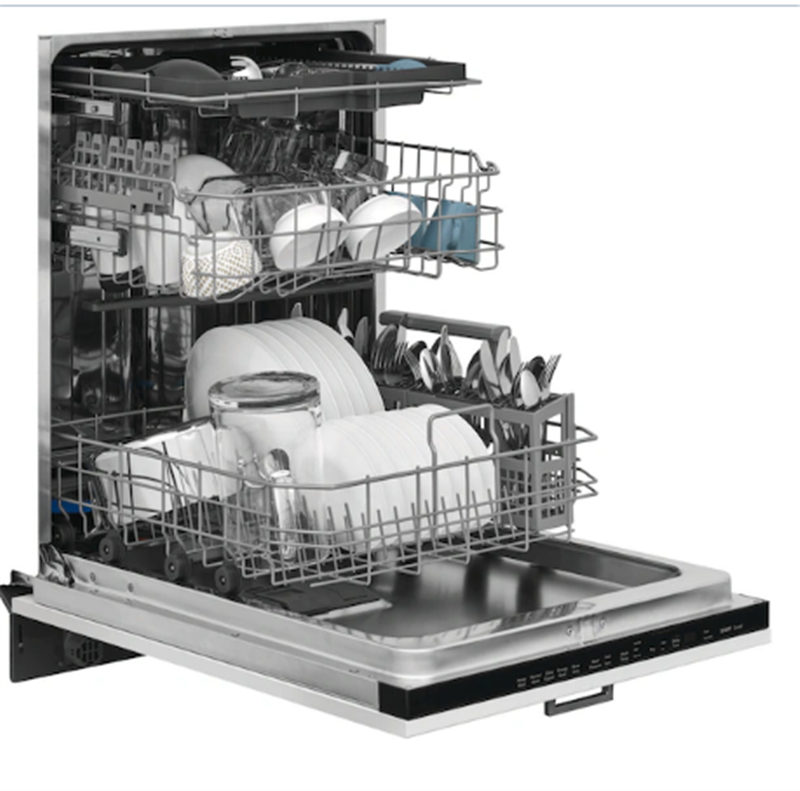

• Save time loading and unloading and fit more with a third level rack that easily fits silverware, cooking utensils and tools.
• With the fan assisted EvenDry™, air flow is evenly circulated and moisture is removed for clean, spot-free dishes.
• Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
• Sanitize option removes 99.9% of common household bacteria.
• Clean even your largest dishes and bakeware with an adjustable upper level rack that lets you fit more in the bottom rack.
• So quiet your dishwasher won't disturb you, even if you run it while you're in the room--runs at 49 dBA.
• Save money and maximize energy efficiency.
• This dishwasher was assembled in a certified zero waste to landfill facility. Electrolux's goals is for all of our production facilities to be certified by 2025.
