Specifications

• Controls
  • Delay Start Hours : 2-4-6 Hours
  • Rinse Aid Indicator : Yes
  • Control Lock : Yes
  • Control Location : Top
  • Digital Display : No
• Dimensions and Volume
  • Depth With Door Open : 49 1/4"
  • Minimum Height : 33 1/2"
• Dishwasher
  • Filter Trap : Removable
  • Hard Food Disposer or Filtration : Yes
  • Tub Color : Midnight Ink
  • Wash Levels : 5
  • Water Usage : 3.2 Gallons
  • Automatic Temperature Control : Yes
  • Detergent Dispenser : Yes
  • Filter Material : Plastic
  • Tub Design : Tall Tub
  • Tub Material : Plastic
  • Wash System : Direct Feed
  • Water Pressure : 120 psi
  • Middle Spray Arm : Bi-Beam
  • Upper Spray Arm : Spray Arm
  • Place Setting Capacity : 14
  • Lower Spray Arm : Bi-Beam
  • Filtered Water : 100 %
  • Motor Speeds : Single-Speed
  • Rinse Aid Dispenser : Yes
  • Smart Soil Sensor : Yes
• Dishwasher Cycles
  • Energy Saver : Yes
  • Heavy : Yes
  • Normal : Yes
  • Number of Cycles : 4
  • Quick : Yes
• Dishwasher Options
  • Start/Cancel : Yes
  • Washing Temperature - High : Yes
  • Dry - Heat : Yes
  • Washing Temperature - Sanitize : Yes
  • Dry - Max : Yes
  • Air Dry : Yes
  • Drying System : Static Vent
  • Heated Dry : Yes
  • High Temperature : Yes
• Electrical Specifications
  • Amps @ 120 Volts : 10 Amps
  • Voltage Rating : 120 V
  • Connected Load @ 120V : 1.2 kW
• Exterior
  • Door Latch : Pull
  • Door Type : StayPut
  • Door and Handle Design : Handle
• General Specifications
  • Annual Energy : 240 kWh
  • Prop 65 Label : Yes
  • Sound Level : 52 dBA
  • Warranty - Parts : 1 Year
  • Product Weight : 56 lbs
  • Warranty - Labor : 1 Year
• Installation
  • Connection Location : Right Bottom
  • Number of Leveling Legs : 4
  • Water Inlet Location : Left Bottom Front
• Lower Rack
  • Maximum Height Clearance : 13"
  • Minimum Height Clearance : 11"
  • Number of Silverware Basket Lids : 3
  • Rack Coating : PVC
  • Number of Silverware Basket : 1
  • Rack Type : Standard
• Performance Certifications and Approvals
  • CEE Tier : Tier 1
  • ENERGY STAR Certified : Yes
  • cUL Listed : Yes
  • UL Listed : Yes
  • Meets ASSE 1006 Requirements : Yes
  • NSF Certified : Yes
• Upper Rack
  • Cup Shelf : Yes
  • Minimum Height Clearance : 8"
  • Rack Coating : PVC
  • Rack Spacer : Yes
  • Rack Type : Standard

Description

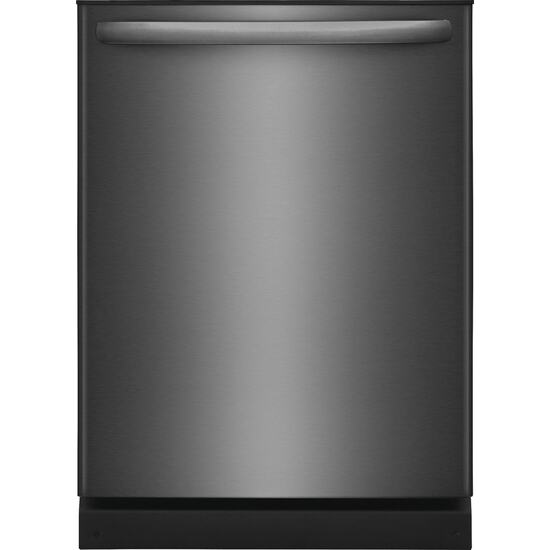

24-Inch Fully Integrated Dishwasher: A sleek, modern dishwasher that blends seamlessly into your kitchen while offering high-performance cleaning.

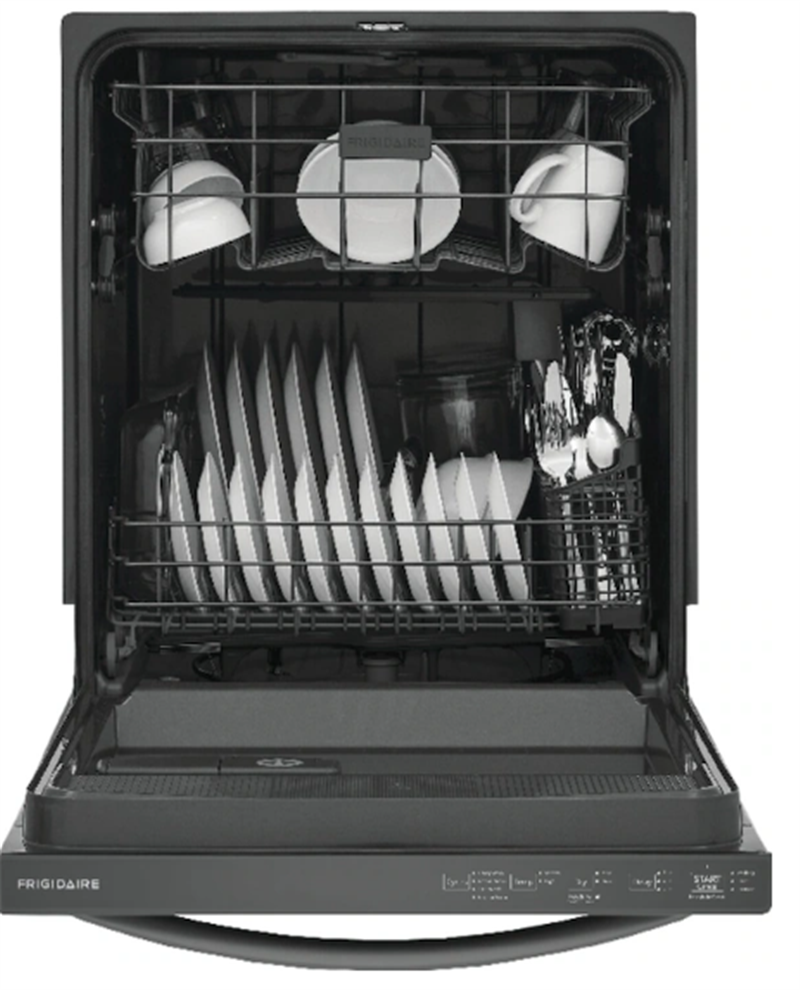

14 Place Settings: Provides ample space for large loads, making it ideal for families or those who entertain frequently.

4 Wash Cycles: Offers versatility to handle different types of dishwashing needs, from light to heavy cleaning.

52 dBA: Operates quietly at just 52 dBA, ensuring minimal noise and disruption while running.

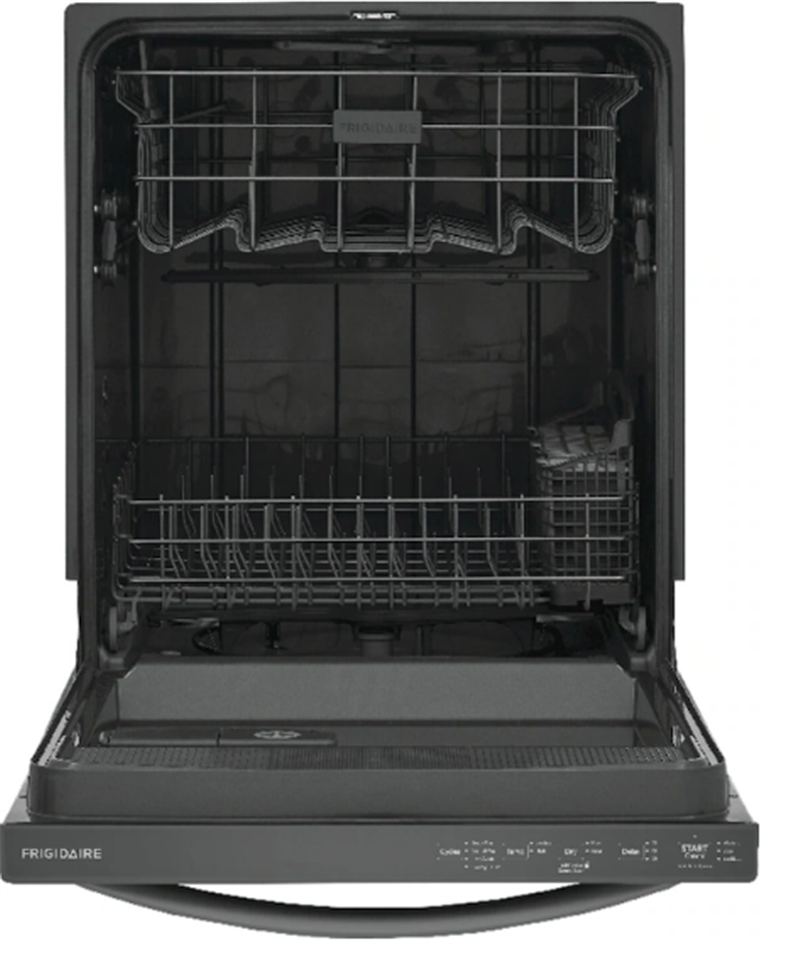

PVC Coated Racks: Durable racks with a protective PVC coating to help prevent scratches and secure dishes during the wash cycle.

MaxDryâ„¢: Advanced drying technology that ensures your dishes come out completely dry and spot-free.

DishSense® Sensor: Automatically adjusts the wash cycle based on load size and soil level for efficient, tailored cleaning.

NSF® Certified: Meets the high sanitation standards set by NSF®, ensuring clean and hygienic dishes every time.

Energy Star® Certified: Designed to meet energy efficiency standards, helping to conserve energy and lower your utility costs.

Features

• Give your dishes a more effective clean with our three spray arms, which achieve better water coverage during the cleaning cycle.
• Get an enhanced dry with the MaxDry™ option, which raises the temperature and delivers better results reducing the need for towel drying.
• Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
• Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
• Save money and maximize energy efficiency.
• Get a complete clean faster with the 60-Minute wash cycle.
• Enjoy a quiet performance of 52 dBA with a noise insulation system that reduces noise while the dishwasher is in use.
• Sleek bar handle design upgrades the look of your kitchen.
• Set your dishwasher to run on your schedule with our delay start option.
• Reduce door slamming and dishes clinking with our stay-put door that allows you to open the door at any angle to load and unload dishes.
