Specifications

• Accessories
  • Optional Trim Kit Part Number : WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Bake : Yes
  • Bake Time : Yes
  • Broil : Yes
  • Cancel : Yes
  • Cook Time : Yes
  • Delay Start : Yes
  • Keep Warm : Yes
  • Kitchen Timer : Yes
  • Preheat : Yes
  • Self Clean : Yes
  • Start : Yes
  • Temperature Display : Yes
  • Off : Yes
  • Oven Light : Yes
  • Timer On / Off : Yes
  • Clock : Yes
  • Convection Bake : Yes
  • Light : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
• Dimensions and Volume
  • Lower Oven Interior Depth : 19 7/8"
  • Upper Oven Interior Width : 25 1/5"
  • Upper Oven Interior Depth : 19 7/8"
  • Minimum Cutout Height : 48 7/8"
  • Minimum Cutout Width : 28 1/2"
  • Maximum Cutout Height : 50 1/4"
  • Maximum Cutout Width : 29"
  • Oven Lower Capacity : 5.3 Cu. Ft.
  • Oven Upper Capacity : 5.3 Cu. Ft.
  • Total Capacity : 10.6 Cu. Ft.
  • Depth With Door 90° Open : 48 3/16"
  • Depth With Handle : 27 3/5"
  • Lower Oven Interior Height : 18 1/8"
  • Lower Oven Interior Width : 25 1/5"
  • Upper Oven Interior Height : 18 1/8"
• Display
  • Display Light Color : White
  • Display Type : Capacitive Touch
  • Display Interface Color : White
• Electrical Specifications
  • Connected Load @ 240V : 7.4 kW
  • Voltage Rating : 240 V
  • Amps @ 240 Volts : 40 Amps
  • Minimum Circuit Required : 40 Amps
• Exterior
  • Handle Color : Stainless Steel
• General Specifications
  • Warranty - Labor : 1 Year
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Product Weight : 215 lbs
  • Prop 65 Label : Yes
  • Frigidaire Fit Promise : Yes
• Installation
  • Power Supply Connection Location : Top Left
• Oven
  • Bake Element : 2500 Watts
  • Broil Element : 4000 Watts
  • Broil Element Pass : 6
  • Broil System : Yes
  • Convection Type : Fan
  • Number of Convection Fans : 1
  • Oven Light Quantity : 1
  • Oven Light Type : Halogen
  • Oven Light Watts : 40 Watts
  • Bake Element Pass : 8
  • Convection : Yes
  • Rack Position Type : Embossed
  • Number of Rack Positions : 6
  • Oven Interior Color : Midnight Black
  • Bake Element Type : Hidden
  • Cleaning System : Yes
  • Rack Type 1 : Flat
  • Rack Type 1 Quantity : 4
• Safety Certifications and Approvals
  • CSA Listed : Yes
  • RoHS : Yes
  • UL Listed : Yes

Description

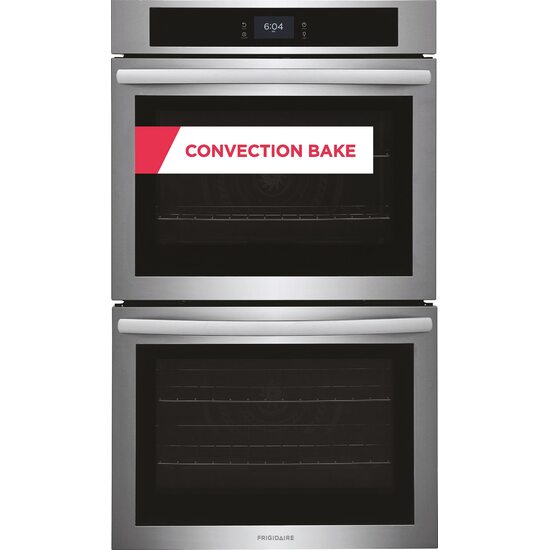

30-Inch Double Convection Electric Wall Oven: A spacious and versatile oven designed to provide superior cooking performance for large meals or multiple dishes at once.

10.6 Cu. Ft. Capacity: Offers an expansive cooking space, allowing for cooking large meals or multiple dishes simultaneously, perfect for families or entertaining.

Fan Convection: Ensures even heat distribution for consistent cooking results, providing perfectly cooked meals every time.

Self Clean: Features a convenient self-cleaning option, making it easy to maintain a spotless oven interior without the need for manual scrubbing.

Keep Warm: Keeps your dishes at the ideal temperature until you're ready to serve, ensuring that food stays warm without overcooking.

Cook Time Setting: Allows you to set a specific cooking time, automatically turning off the oven once the time has elapsed for precise and reliable cooking.

Delay Start: Lets you schedule the oven to start cooking at a later time, making it easier to cook meals according to your schedule.

Convection Bake: Circulates hot air evenly for faster, more efficient baking, delivering perfect results for baked goods and other dishes.

Control Lock: Prevents accidental changes to oven settings, ensuring safety and peace of mind, especially in homes with children.

Sabbath Mode: A feature that ensures the oven operates in accordance with religious practices, allowing you to cook in compliance with specific requirements.

Features

• Get faster, more even multi-rack baking results with Fan Convection - in both ovens!
• Self clean options available in convenient 2, 3 and 4-hour cycles.
• We promise that your new 30" Frigidaire® double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
• Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
• Cook more at once with a combined 10.6 cu.ft. of oven capacity.
• Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
• Allows you to program the amount of time you want your oven to cook and then turn off.
• Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
