Specifications

• Certifications and Approvals
  • ADA Compliant : Yes
  • CSA Listed : Yes
• Cooking Controls
  • Clock : Yes
  • Cook Time : Yes
  • Keep Warm : Yes
  • Oven Light : Yes
  • Preheat : Yes
  • Steam Clean : Yes
  • Up / Down Arrow : Yes
  • Delay Start : Yes
  • Kitchen Timer : Yes
  • Off : Yes
  • Timer On / Off : Yes
  • Bake : Yes
  • Broil : Yes
  • Child Lock : Yes
  • Start : Yes
  • Temperature Display : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
  • Delayed Bake : Yes

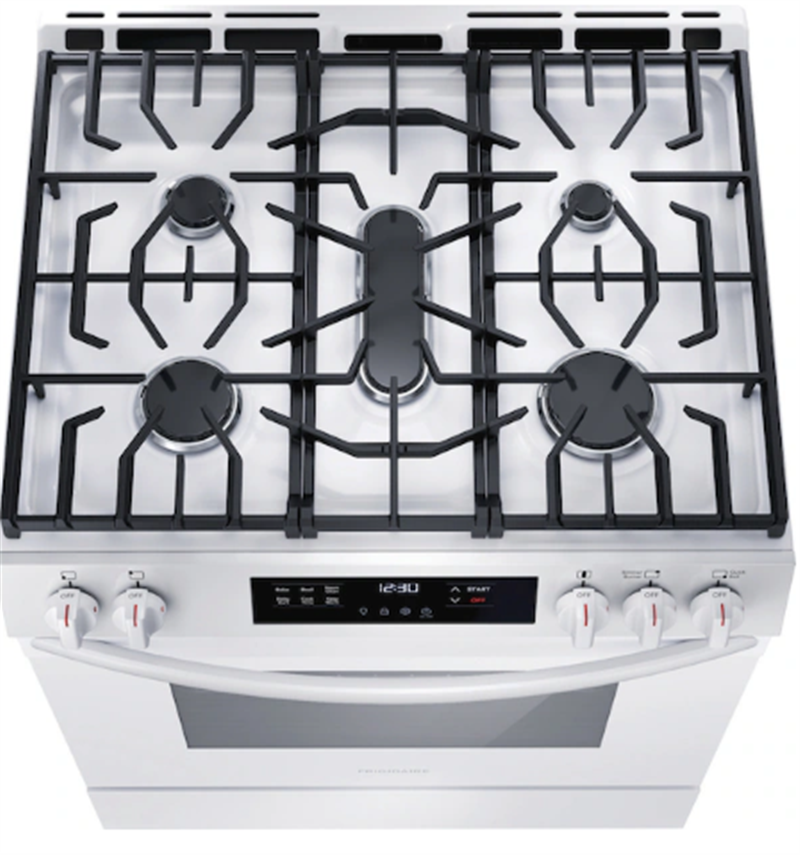

• Cooktop
  • Cooking Surface Type : Gas
  • Grate Style : Continuous
  • Sealed Burners : Yes
  • Grate Material : Cast Iron
  • Grate Quantity : 3
• Cooktop Performance
  • Right Rear Element Burner : 5000 BTU
  • Right Front Element Burner : 18000 BTU
  • Left Front Element Burner : 14000 BTU
  • Center Rear Element Burner : 10000 BTU
  • Left Rear Element Burner : 10000 BTU
• Dimensions and Volume
  • Minimum Height : 35 5/8"
  • Depth With Handle : 28 1/2"
  • Oven Interior Width : 25 3/16"
  • Oven Interior Depth : 19 7/8"
  • Oven Capacity : 5.1 Cu. Ft.
  • Depth With Door 90° Open : 47 1/4"
  • Oven Interior Height : 17 5/8"
• Display
  • Control Location : Front
  • Display Interface Color : White
  • Display Type : Capacitive Touch
• Drawer
  • Drawer Type : Storage
• Electrical Specifications
  • Amps @ 120 Volts : 12 Amps
  • Voltage Rating : 120 V
• General Specifications
  • Warranty - Labor : 1 Year
  • Frigidaire Fit Promise : Yes
  • Product Weight : 175 lbs
  • Prop 65 Label : Yes
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
• Installation
  • Adjustable Leveling Legs : Yes

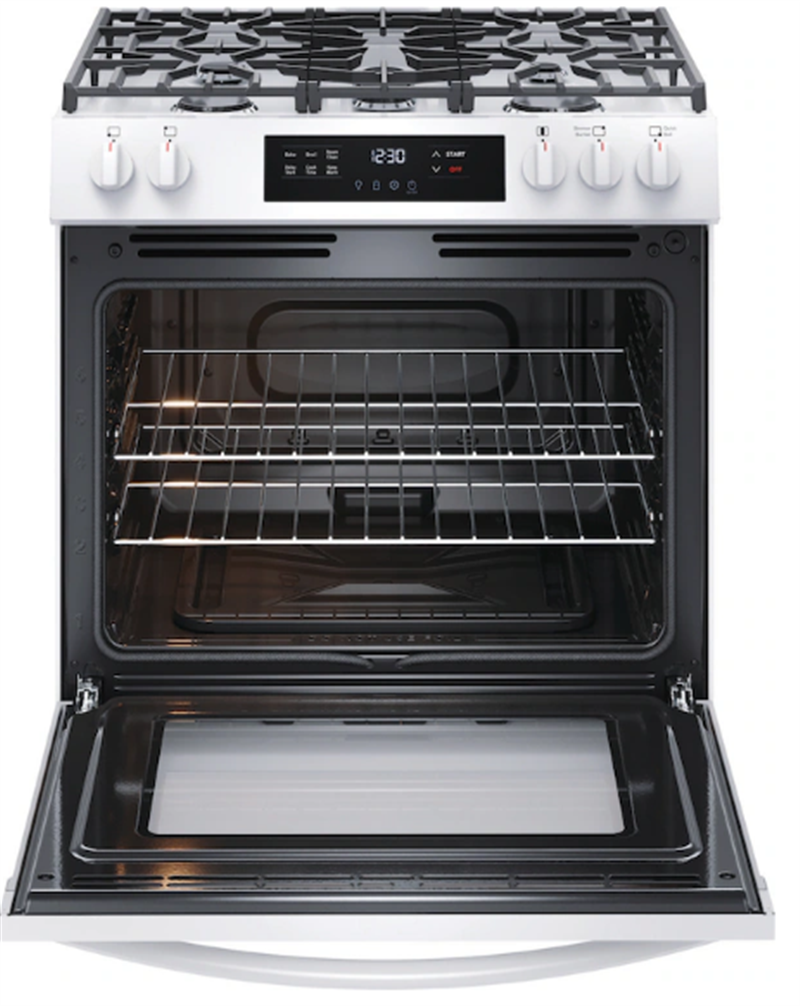

• Oven
  • Broil Element : 1400 Watts
  • Cleaning System : Yes
  • Number of Rack Positions : 6
  • Oven Interior Color : Midnight Black
  • Oven Light Quantity : 1
  • Oven Light Watts : 40 Watts
  • Rack Position Type : Embossed
  • Rack Type 1 Quantity : 2
  • Oven Light Type : Halogen
  • Rack Type 1 : Flat
  • Bake Element : 17000 BTU

Description

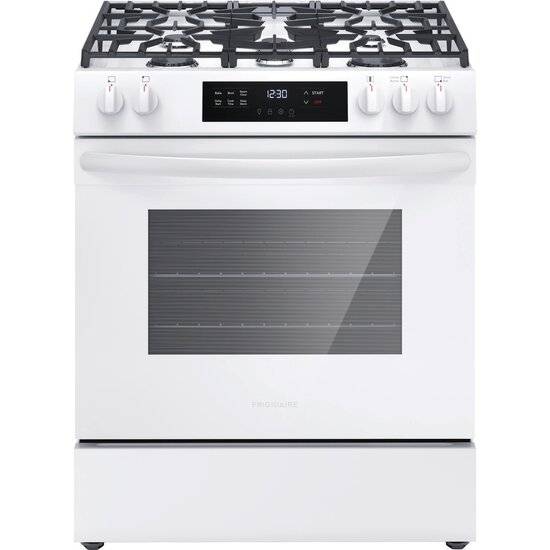

30'' Front Control Freestanding Gas Range with Quick Boil

18,000 BTU Quick Boil burner for faster boil times

Flexible five-burner cooktop designed to meet all cooking needs

Steam Clean cycle offers a quick, 30-minute oven cleaning

Chemical-free and odor-free cleaning for easy maintenance

Features

• Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
• Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.
• Designed to deliver even baking results, every time.
• A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
• Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

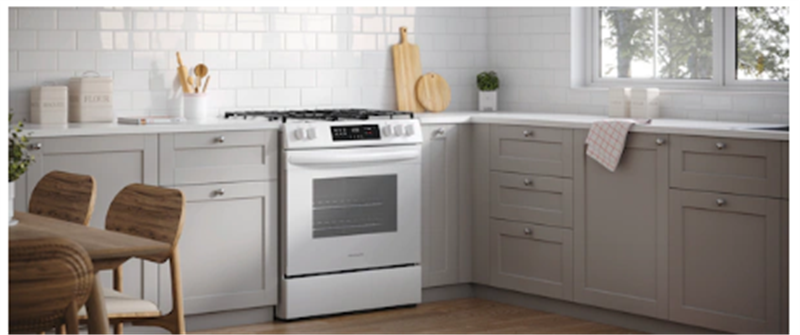

• Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
• We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!

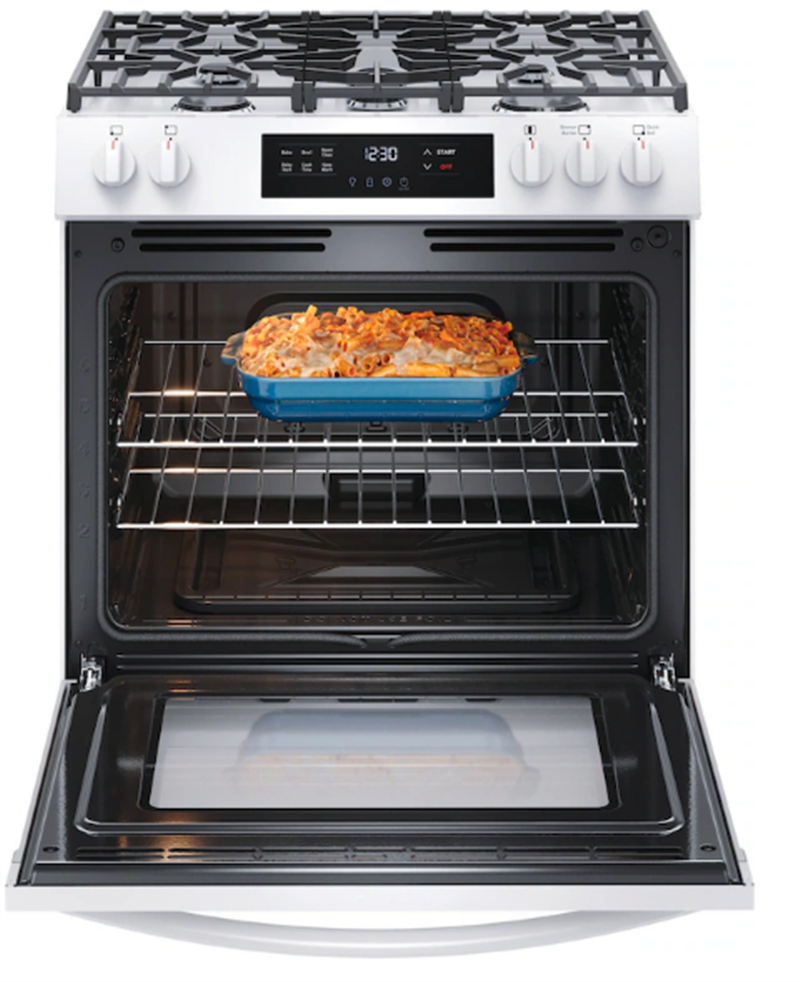

• Cook more at once with our large oven capacity.
• Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
• Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
