Specifications

• Certifications and Approvals
  • cUL Listed : Yes
  • ENERGY STAR Certified : Yes
  • UL Listed : Yes
  • ADA Compliant : Yes
• Controls
  • Sabbath Mode : No
  • Control Lock : No
• Cooking Controls
  • Delay Start : Yes
  • Kitchen Timer : Yes
  • Bake : Yes
  • Broil : Yes
  • Cancel : Yes
  • Clear Off : Yes
  • Clock : Yes
  • Cook Time : Yes
  • On / Off (for each element) : Yes
  • Preheat : Yes
  • Probe : No
  • Steam Clean : Yes
  • Temperature Display : Yes
  • Timer On / Off : Yes
  • Keep Warm : Yes
  • Lockout : Yes
  • Timed Bake : Yes
  • Oven Light : Yes
  • Warm Zone : Yes
• Cooking Controls Function
  • Silent Control Panel : Yes
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
• Cooktop
  • Cooking Surface Type : Smooth
  • Element On Indicator Light : Yes
  • Hot-Surface Indicator Light : Yes
• Cooktop Performance
  • Right Front Element Burner Size : 9"
  • Right Rear Element Burner Size : 6"
  • Left Rear Element Burner Size : 6"
  • Right Front Element Burner : 3200 Watts
  • Left Front Element Burner (Small) : 1400 Watts
  • Left Front Element Burner (Large) : 3000 Watts
  • Left Rear Element Burner : 1200 Watts
  • Center Rear Element Burner : 100 Watts
  • Left Front Element Burner Size (Large) : 9"
  • Right Rear Element Burner : 1200 Watts
  • Left Front Element Burner Size (Small) : 6"
• Dimensions and Volume
  • Depth With Handle : 28 1/2"
  • Oven Interior Height : 18 1/8"
  • Oven Interior Depth : 19 7/8"
  • Oven Capacity : 5.3 Cu. Ft.
  • Depth With Door 90° Open : 47 5/16"
  • Minimum Height : 35 3/8"
  • Oven Interior Width : 25 3/16"
• Display
  • Control Location : Front
  • Display Type : Capacitive Touch
  • Display Interface Color : White
• Drawer
  • Drawer Handle Style : Integrated
  • Drawer Type : Storage
• Electrical Specifications
  • Connected Load @ 240V : 12 kW
  • Voltage Rating : 240 V
  • Minimum Circuit Required : 40 Amps
• General Specifications
  • Frigidaire Fit Promise : Yes
  • Product Weight : 149 lbs
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Warranty - Labor : 1 Year
  • Warranty - Parts : 1 Year
  • Prop 65 Label : Yes
• Oven
  • Bake Element : 2500 Watts
  • Bake Element Type : Hidden
  • Broil Element : 3000 Watts
  • Oven Interior Color : Midnight Black
  • Oven Light Quantity : 1
  • Rack Position Type : Embossed
  • Bake Element Pass : 8
  • Bake System : Yes
  • Broil Element Pass : 4
  • Broil System : Yes
  • Cleaning System : Yes
  • Number of Rack Positions : 6
  • Oven Light Type : Halogen
  • Rack Type 1 Quantity : 2
  • Oven Light Watts : 40 Watts
  • Rack Type 1 : Flat

Description

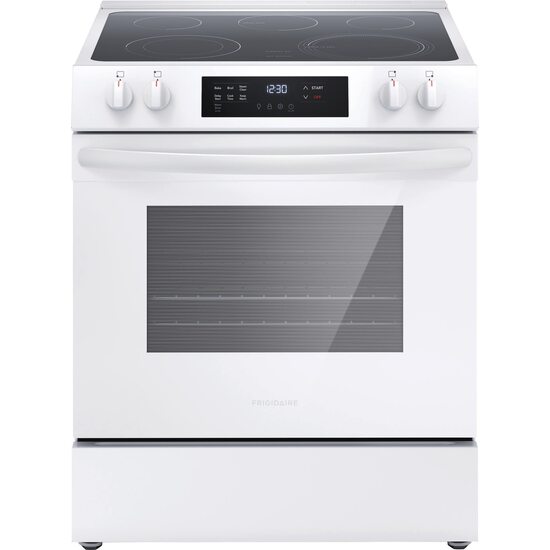

Size and Capacity: 30-inch freestanding electric range with a 5.3 cu. ft. oven capacity, offering ample cooking space.

Smoothtop Elements: Features five smoothtop elements for versatile cooking options and easy cleanup.

EvenTempâ„¢ Element: Includes an EvenTempâ„¢ element for consistent and even heat distribution across the cooking surface.

SpaceWise® Element: Equipped with a SpaceWise® element, providing flexible cooking options with varying sizes of heat zones.

Keep Warm Zone: A dedicated Keep Warm Zone to keep your food warm until you're ready to serve.

Steam Clean: Steam Clean function for a simple, chemical-free way to clean the oven.

Store-Moreâ„¢ Storage: Features a Store-Moreâ„¢ storage drawer for convenient storage of cookware and utensils.

ADA Compliant: Designed to meet ADA (Americans with Disabilities Act) requirements for accessibility.

Energy Star Certified: Energy-efficient, helping to reduce energy consumption while maintaining high performance.

Features

• Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
• Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.
• Designed to deliver even baking results, every time.
• A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
• Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Cook more at once with our extra-large 5.3 cu.ft. capacity oven.
• Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
• We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
• Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
• Keep food warm until everything - and everyone - is ready.
