Specifications

• Certifications and Approvals
  • CEE Tier : Tier 1
  • Meets ASSE 1006 Requirements : Yes
  • NSF Certified : Yes
  • ADA Compliant : No
  • cUL Listed : Yes
  • ENERGY STAR Certified : Yes
  • UL Listed : Yes
• Controls
  • Control Location : Top
  • Control Lock : Yes
  • Delay Start Hours : 1-12 Hours
  • Digital Display : Yes
  • Rinse Aid Indicator : Yes
• Dimensions and Volume
  • Depth With Door Open : 50 1/4"
  • Minimum Height : 33 3/4"
  • Depth With Handle : 26 69/100"
• Dishwasher
  • Automatic Temperature Control : No
  • Detergent Dispenser : Yes
  • Filter Material : Stainless Steel
  • Filter Trap : Removable
  • Interior Light : No
  • Leak Detection System : Yes
  • Motor Speeds : Multi-Speed
  • Place Setting Capacity : 14
  • Rinse Aid Dispenser : Yes
  • Smart Soil Sensor : Yes
  • Lower Spray Arm : Orbit
  • Middle Spray Arm : Bi-Beam
  • Status Indicator Floor Beam : Yes
  • Tub Color : Stainless Steel
  • Tub Design : Tall Tub
  • Tub Material : Stainless Steel
  • Wash Levels : 5
  • Wash System : Direct Feed
  • Filtered Water : 100 %
  • Hard Food Disposer or Filtration : Yes
  • Upper Spray Arm : Spray Arm
• Dishwasher Cycles
  • China Crystal : Yes
  • Favorite : Yes
  • Normal : Yes
  • Quick : Yes
  • Rinse Only : Yes
  • Sanitize : Yes
  • Heavy : Yes
  • Number of Cycles : 8
  • Energy Saver : Yes
• Dishwasher Options
  • Air Dry : Yes
  • Dry - Air : Yes
  • Heated Dry : Yes
  • Start/Cancel : Yes
  • Dry - Heat : Yes
  • Dry - Max : Yes
  • Drying System : Even Dry
• Electrical Specifications
  • Amps @ 120 Volts : 15 Amps
  • Voltage Rating : 120 V
• Exterior
  • Door Latch : Pull
  • Door and Handle Design : Handle
  • Door Type : StayPut
  • Exterior Finish : Smudge-Proof® Stainless Steel
• General Specifications
  • Annual Energy : 240 kWh
  • Product Weight : 86 lbs
  • Warranty - Parts : 1 Year
  • Sound Level : 47 dBA
  • Prop 65 Label : No
  • Warranty - Labor : 1 Year
• Installation
  • Number of Leveling Legs : 3
• Lower Rack
  • Fold-Down : Yes
  • Number of Silverware Basket : 1
  • Number of Silverware Basket Lids : 2
  • Rack Coating : Nylon
  • Maximum Height Clearance : 13 1/4"
  • Minimum Height Clearance : 11 1/4"
  • Rack Type : Deluxe
• Third Level Rack
  • Third Level Rack : Yes
  • Rack Coating : Nylon
  • Rack Handles : No
• Upper Rack
  • Minimum Height Clearance : 8 1/2"
  • Maximum Height Clearance : 10 3/8"
  • Cup Shelf : Yes
  • Fold-Down : Yes
  • Rack Handles : Yes
  • Rack Type : Deluxe
  • Stemware Holder : Yes
  • Targeted Wash Zone : Yes
  • Rack Coating : Nylon

Description

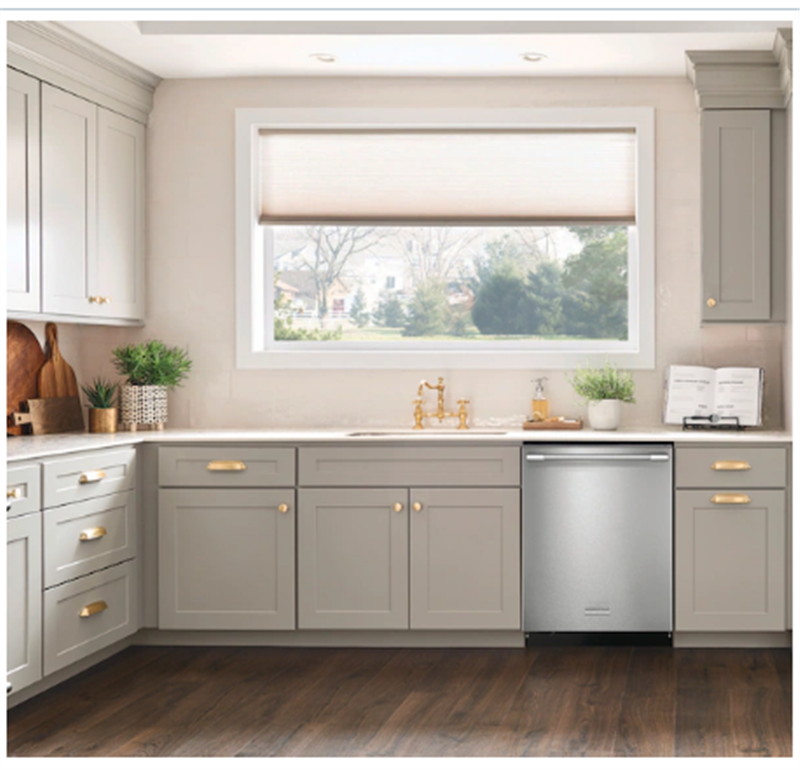

• 24-Inch Fully Integrated Design: Features a modern, fully integrated look with smudge-proof stainless steel, seamlessly blending into your kitchen cabinetry.
• 14 Place Settings: Offers a spacious capacity for up to 14 place settings, perfect for large families or frequent entertainers.
• 8 Wash Cycles: Equipped with eight versatile wash cycles, allowing you to choose the ideal setting for different cleaning needs.
• 47 dBA Silence Rating: Operates at a quiet 47 dBA, ensuring a peaceful environment while the dishwasher runs.
• CleanBoostâ„¢: Provides extra cleaning power to tackle stubborn stains and debris, ensuring a deep clean for all your dishes.
• MaxBoostâ„¢ Dry: Guarantees exceptional drying performance, ensuring that dishes come out dry and ready to use.
• DishSense® Sensor Technology: Automatically adjusts the wash cycle based on the soil level of your dishes, optimizing water and energy usage.

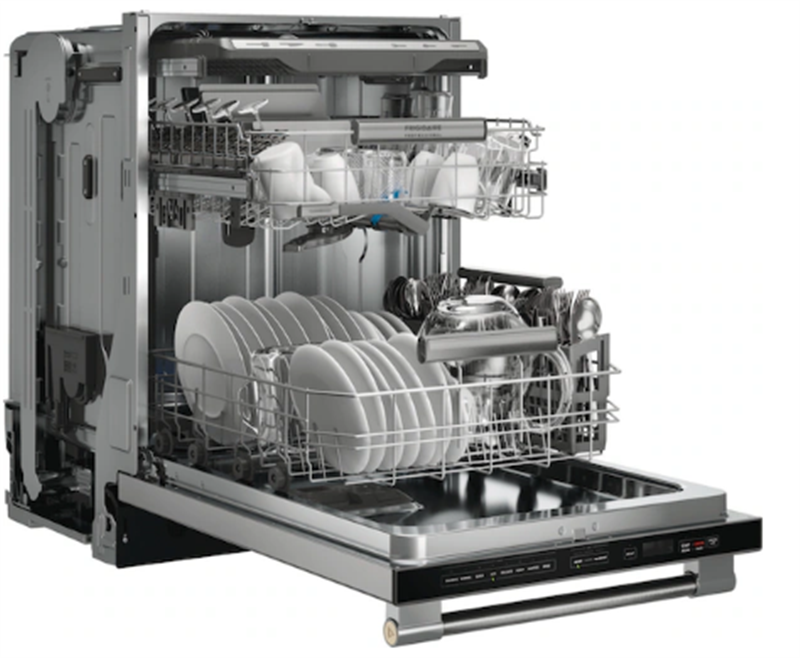

• 3 Racks: Includes three racks, providing flexible loading options and extra space for various dish types, including a third rack for smaller items.
• Leak Detection System: Features a leak detection system that quickly identifies any leaks to prevent water damage.
• Sanitize Cycle: Includes a sanitize cycle that eliminates bacteria and ensures your dishes are hygienically clean.
• Smudge-Proof® Stainless Steel: The smudge-proof finish resists fingerprints, keeping your dishwasher looking clean and sleek.
• ENERGY STAR® Certified: Energy Star certified for energy efficiency, helping reduce electricity usage and lower utility costs while delivering excellent performance.

Features

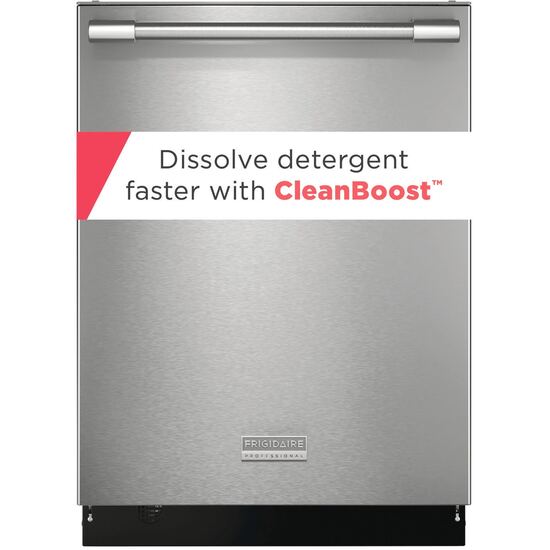

• Remove tough baked-on foods and boost the cleaning power of any detergent with our patented CleanBoost™ premix technology

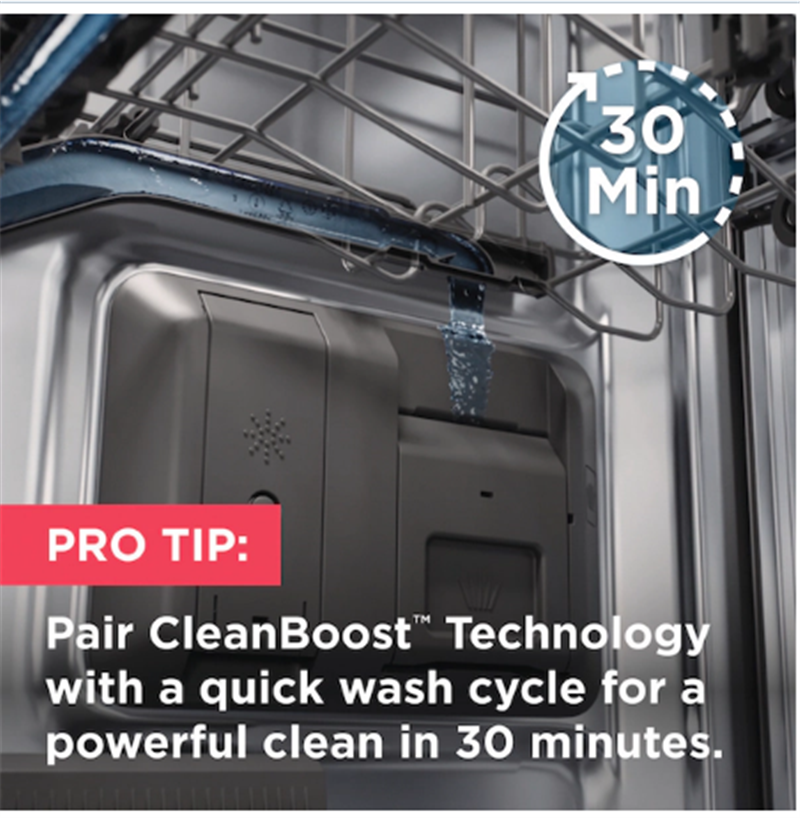

• Get a powerful clean, fast in just 30 minutes.
• Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.
• Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
• In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher.
• Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.
• Using a rotating wash arm with multi-directional spray patterns provides maximum coverage without using more water.
• Save time loading and unloading with a third level rack that easily fits silverware, cooking utensils and tools.
• Make loading the dishwasher easier with an adjustable rack and enough space to fit large items.
• Save money and maximize energy efficiency.
• Get a great clean and avoid the hassle of handwashing, all while saving over 4,000 gallons of water per year.

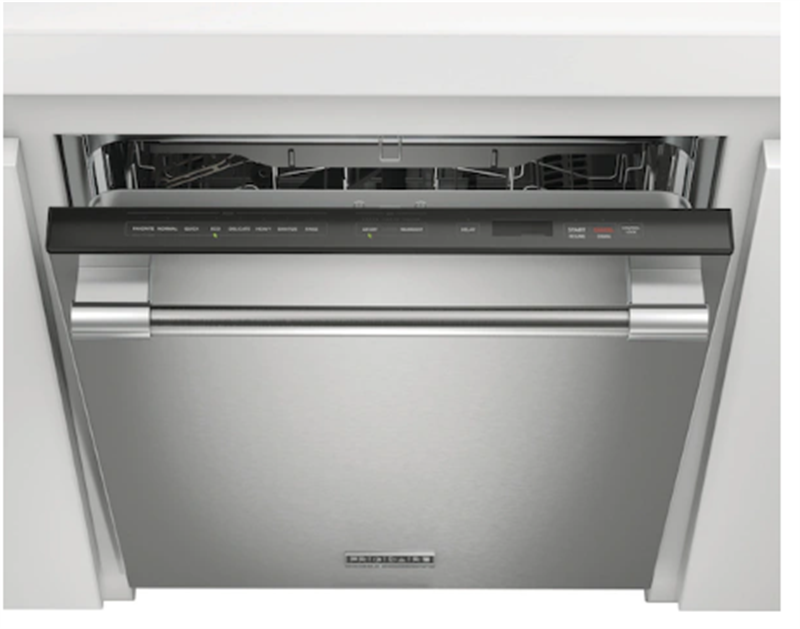

• Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dishes.
• Convenient LED floor light shows cycle status- blue when your dishes are washing and white when they are clean.
• Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
• Resists fingerprints and cleans easily.
• MaxBoost Dry™ technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
