Specifications

• Accessories
  • Included Steam Tray : Yes
• Certifications and Approvals
  • ADA Compliant : Yes
  • RoHS : Yes
  • UL Listed : Yes
  • Star-K Certification : Yes
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Set Clock : Yes
  • Warm and Hold : Yes
  • Air Sous Vide : Yes
  • Bake Time : Yes
  • Broil : Yes
  • Cancel : Yes
  • Clock : Yes
  • Convection Bake : Yes
  • Delay Start : Yes
  • Fast Preheat : Yes
  • Kitchen Timer : Yes
  • Light : Yes
  • My Favorite : Yes
  • No Preheat : Yes
  • Quick Preheat : Yes
  • Convection Roast : Yes
  • Self Clean : Yes
  • Start : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Stop : Yes
  • User Preferences : Yes
  • Air Fry : Yes
  • Bake : Yes
  • Preheat : Yes
  • Probe : Yes
  • Oven Light : Yes
  • Start Time : Yes
  • Timer On / Off : Yes
  • Off : Yes
  • Temperature Display : Yes
• Cooking Controls Function
  • Silent Control Panel : Yes
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Program Fahrenheit or Celsius : Yes

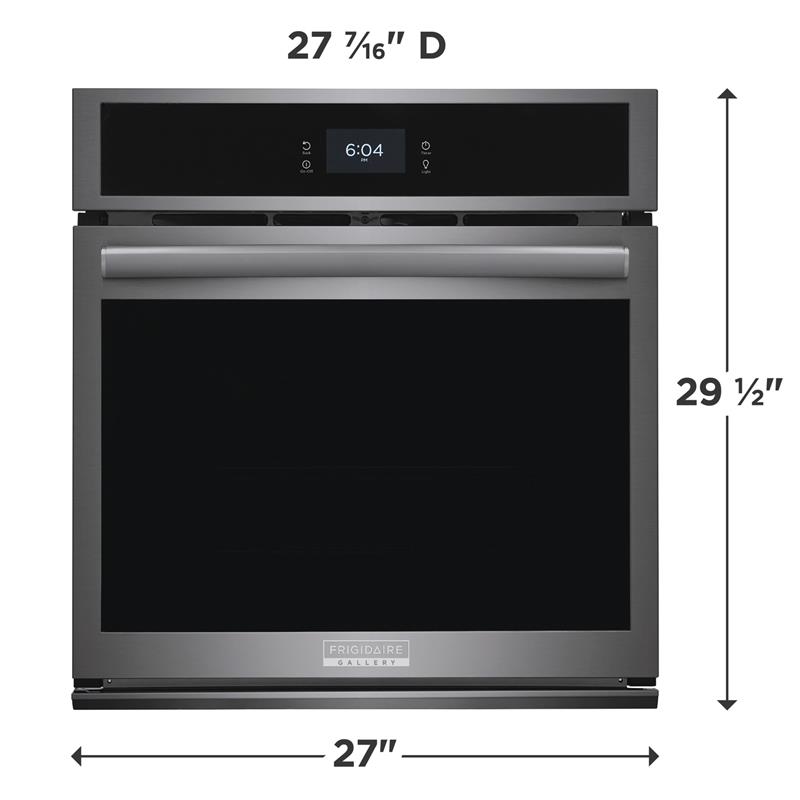

• Dimensions and Volume
  • Maximum Cutout Height : 28 1/4"
  • Depth With Door 90° Open : 45 3/4"
  • Depth With Handle : 27 7/16"
  • Oven Interior Height : 17"
  • Oven Interior Width : 20 1/2"
  • Oven Interior Depth : 18 3/4"
  • Minimum Cutout Height : 27 1/4"
  • Minimum Cutout Width : 24 7/8"
  • Maximum Cutout Width : 25 1/4"
  • Oven Capacity : 3.8 Cu. Ft.
• Display
  • Display Type : Capacitive Touch
  • Display Interface Color : White
  • Display Light Color : White
• Electrical Specifications
  • Amps @ 240 Volts : 20 Amps
  • Connected Load @ 240V : 4.5 kW
  • Minimum Circuit Required : 20 Amps
  • Voltage Rating : 240 V
• Exterior
  • Handle Color : Stainless Steel
  • Exterior Finish : Smudge-Proof® Black Stainless Steel
• General Specifications
  • Warranty - Labor : 1 Year
  • Frigidaire Fit Promise : Yes
  • Product Weight : 110 lbs
  • Prop 65 Label : Yes
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
• Installation
  • Power Supply Connection Location : Top Right
• Oven
  • Bake Element : 2500 Watts
  • Broil Element : 4000 Watts
  • Broil Element Pass : 6
  • Oven Light Quantity : 2
  • Oven Light Type : Halogen
  • Rack Position Type : Embossed
  • Bake Element Pass : 8
  • Bake Element Type : Hidden
  • Broil System : Yes
  • Convection : Yes
  • Convection Element : 2500 Watts
  • Oven Interior Color : Midnight Black
  • Oven Light Watts : 40 Watts
  • Cleaning System : Yes
  • Convection Type : Total
  • Number of Convection Fans : 1
  • Number of Rack Positions : 5
  • Rack Type 1 : Handle
  • Rack Type 1 Quantity : 2
  • Rack Type 2 Quantity : 1
  • Rack Type 2 : Glide

Description

Steam Bake enhances baking by adding moisture, ensuring a crisp exterior and soft interior on baked goods.

Temperature Probe provides accurate temperature monitoring for perfect cooking every time.

Glide Rack allows easy access to dishes with smooth and secure movement.

Air Sous Vide lets you cook low and slow, delivering tender and flavorful meals.

Control Lock ensures safety by preventing accidental changes to oven settings.

Sabbath Mode allows for compliance with religious practices by maintaining a consistent temperature.

Star-K Certified guarantees the oven meets stringent kosher standards.

The Black Stainless Steel finish adds a modern, elegant touch to your kitchen décor.

Features

• Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• We promise that your new 27" Frigidaire® Gallery single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.

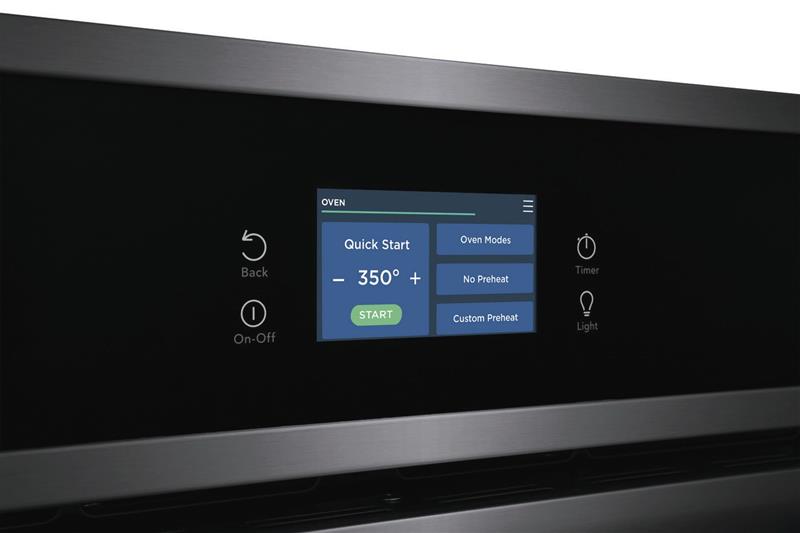

• Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• Resists fingerprints and cleans easily.
• Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results.
