Specifications

• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Air Fry : Yes
  • Clock : Yes
  • Convection Bake : Yes
  • Convection Roast : Yes
  • Delay Start : Yes
  • Door Lock : Yes
  • Keep Warm : Yes
  • Lockout : Yes
  • Numerical Keypad : Yes
  • Probe : Yes
  • Bake Time : Yes
  • Cook Time : Yes
  • Delay Clean : Yes
  • Kitchen Timer : Yes
  • Set Clock : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Air Sous Vide : Yes
  • User Preferences : Yes
  • Light : Yes
  • No Preheat : Yes
  • Bake : Yes
  • Broil : Yes
  • Off : Yes
  • Oven Light : Yes
  • Start : Yes
  • Self Clean : Yes
  • Slow Cook : Yes
  • Temperature Display : Yes
  • Timer On / Off : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Delayed Bake : Yes
  • Silent Control Panel : Yes
  • Program Fahrenheit or Celsius : Yes
• Cooktop
  • Cooking Surface Type : Gas
  • Grate Material : Cast Iron
  • Integrated Griddle Included : Yes
  • Sealed Burners : Yes
  • Grate Quantity : 2
  • Grate Style : Individual
  • Optional Center Grate : 5304535284
• Cooktop Performance
  • Right Front Element Burner : 18000 BTU
  • Right Rear Element Burner : 5000 BTU
  • Left Front Element Burner : 14000 BTU
  • Left Rear Element Burner : 10000 BTU
  • Center Rear Element Burner : 10000 BTU
• Dimensions and Volume

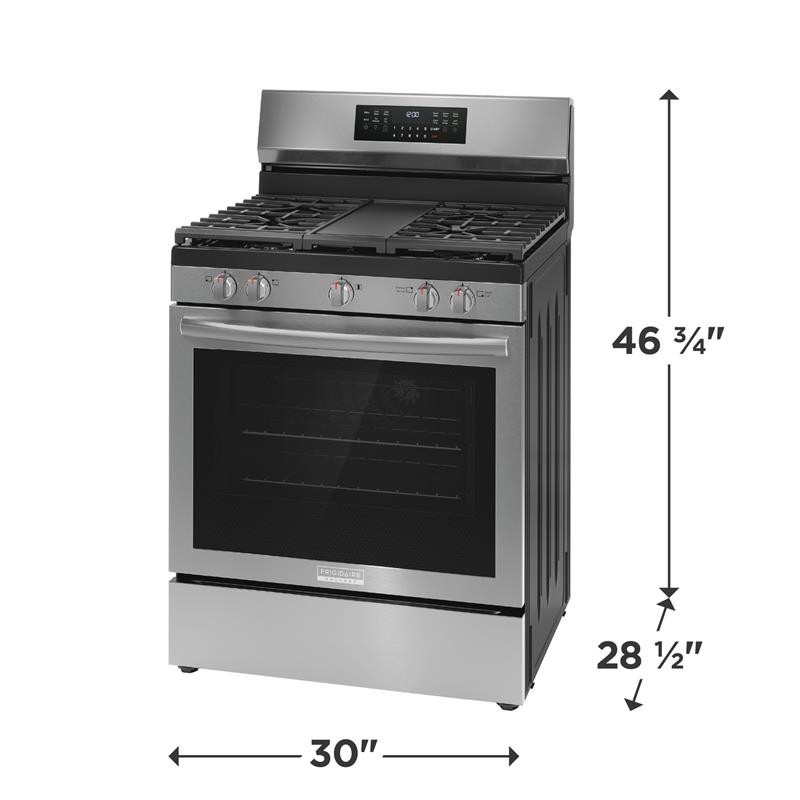

  • Minimum Height : 46 3/4"
  • Depth With Door 90° Open : 47 5/16"
  • Oven Interior Width : 25 3/16"
  • Oven Interior Depth : 19 7/8"
  • Oven Capacity : 5.1 Cu. Ft.
  • Depth With Handle : 28 1/2"
  • Oven Interior Height : 17 5/8"
• Display
  • Display Interface Color : White
  • Control Location : Rear
• Drawer
  • Drawer Handle Style : Integrated
  • Drawer Type : Storage
• Electrical Specifications
  • Minimum Circuit Required : 12 Amps
  • Voltage Rating : 120 V
• Exterior
  • Exterior Finish : Smudge-Proof® Stainless Steel
• General Specifications
  • Product Weight : 190 lbs
  • Prop 65 Label : Yes
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Warranty - Labor : 1 Year
• Installation
  • Adjustable Leveling Legs : Yes
  • Power Cord Included : Yes
• Oven
  • Convection Element : 1000 Watts
  • Convection Type : Total
  • Number of Rack Positions : 6
  • Oven Light Quantity : 1
  • Oven Light Type : Halogen
  • Oven Light Watts : 40 Watts
  • Rack Position Type : Embossed
  • Cleaning System : Yes
  • Number of Convection Fans : 1
  • Rack Type 1 : Flat
  • Rack Type 1 Quantity : 2
  • Broil Element : 1400 Watts
  • Broil Element Pass : 6
  • Bake Element : 18000 BTU
  • Broil System : Yes
  • Convection : Yes
  • Oven Interior Color : Midnight Black
• Safety Certifications and Approvals
  • CSA Listed : Yes

Description

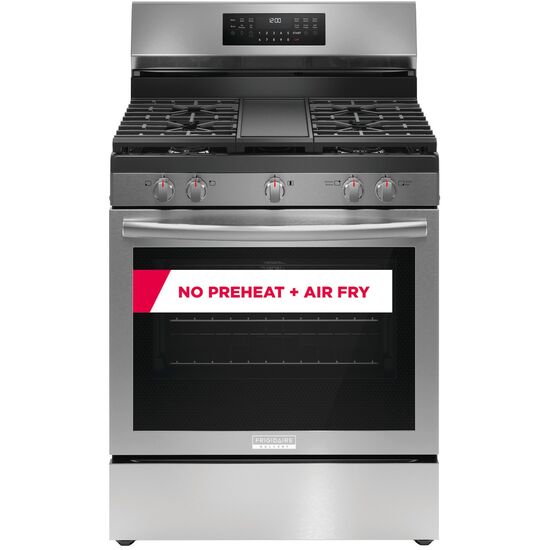

The Frigidaire Gallery 30'' Rear Control Gas Range features the advanced Total Convection system, offering multiple cooking modes including No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, and more.

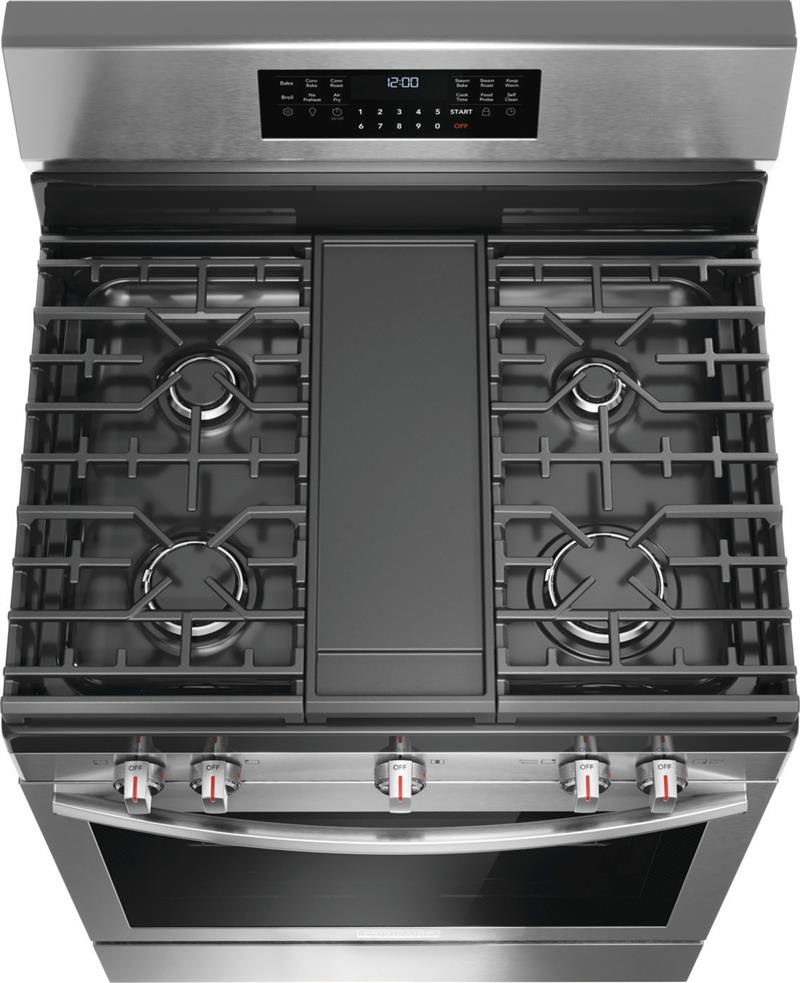

The flexible five-burner cooktop includes an 18,000 BTU Quick Boil Burner for faster cooking and a center oval burner with an integrated cast iron griddle.

The range is equipped with the fingerprint-resistant, Smudge-Proofâ„¢ Stainless Steel finish, ensuring a clean and sleek appearance.

Features

• Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• Designed to meet all of your cooking needs with a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
• With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• Resists fingerprints and cleans easily
