Specifications

• Certifications and Approvals
  • ADA Compliant : Yes
  • CSA Listed : Yes
  • RoHS : Yes
  • Star-K Certification : Yes
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Air Sous Vide : Yes
  • Bread Proof : Yes
  • Convection Roast : Yes
  • Cook Time : Yes
  • Dehydrate : Yes
  • Delay Clean : Yes
  • Delay Start : Yes
  • Light : Yes
  • Lockout : Yes
  • Multi-Stage Cooking : Yes
  • Kitchen Timer : Yes
  • Off : Yes
  • Oven Lock : Yes
  • Preheat : Yes
  • Probe : Yes
  • Self Clean : Yes
  • Set Clock : Yes
  • Slow Cook : Yes
  • Temperature Display : Yes
  • Clock : Yes
  • Convection Convert : Yes
  • Keep Warm : Yes
  • Oven Light : Yes
  • Start : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Timer On / Off : Yes
  • Air Fry : Yes
  • Bake : Yes
  • Convection Bake : Yes
  • Door Lock : Yes
  • No Preheat : Yes
  • Bake Time : Yes
  • Broil : Yes
  • My Favorite : Yes
  • Oven Indicator Light : Yes
  • Start Time : Yes
  • Timed Bake : Yes
  • User Preferences : Yes
  • Perfect Turkey : Yes
• Cooking Controls Function
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
• Cooktop
  • Center Grate Finish : Cast Iron
  • Cooking Surface Type : Gas
  • Grate Material : Cast Iron
  • Grate Quantity : 3
  • Grate Style : Continuous
  • Griddle Included : Yes
  • Sealed Burners : Yes
• Cooktop Performance
  • Right Front Element Burner : 18000 BTU
  • Left Rear Element Burner : 10000 BTU
  • Right Rear Element Burner : 5000 BTU
  • Center Element Burner : 10000 BTU
  • Left Front Element Burner : 14000 BTU
• Dimensions and Volume
  • Minimum Height : 35 5/8"
  • Depth With Handle : 28 1/2"
  • Depth With Door 90° Open : 47 1/4"
  • Oven Interior Width : 25 3/16"
  • Oven Interior Depth : 19 7/8"
  • Oven Capacity : 6 Cu. Ft.
  • Oven Interior Height : 20 11/16"
• Display
  • Control Location : Front
  • Display Interface Color : White
  • Display Type : Capacitive Touch
• Drawer
  • Drawer Type : Storage
  • Drawer Handle Style : Integrated
• Electrical Specifications
  • Minimum Circuit Required : 12 Amps
  • Voltage Rating : 120 V
• Exterior
  • Backlit Knobs : Yes
  • Exterior Finish : Smudge-Proof® Stainless Steel
• General Specifications
  • Warranty - Parts : 1 Year
  • Frigidaire Fit Promise : Yes
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Product Weight : 204 lbs
  • Prop 65 Label : Yes
  • Warranty - Labor : 1 Year
• Installation
  • Power Cord Included : Yes
  • Adjustable Leveling Legs : Yes
• Oven
  • Convection : Yes
  • Convection Type : Total
  • Number of Rack Positions : 8
  • Rack Type 1 Quantity : 2
  • Oven Interior Color : Midnight Black
  • Oven Light Watts : 40 Watts
  • Bake Element : 18000 BTU
  • Broil Element : 13500 BTU
  • Cleaning System : Yes
  • Convection Element : 1000 Watts
  • Number of Convection Fans : 1
  • Oven Light Quantity : 2
  • Oven Light Type : Halogen
  • Rack Position Type : Embossed
  • Rack Type 1 : Flat

Description

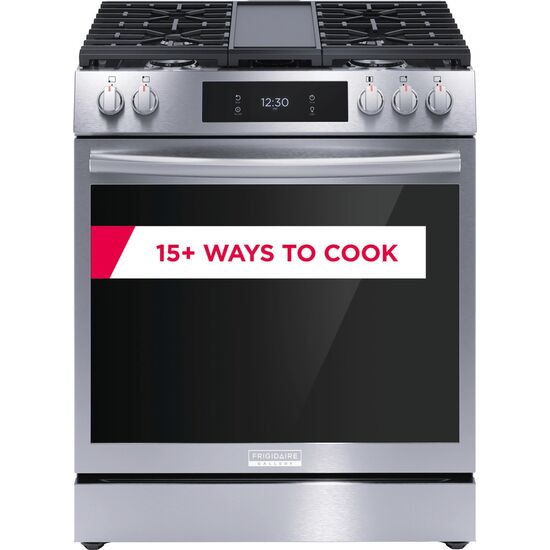

The Frigidaire Gallery 30'' Rear Control Gas Range features the advanced Total Convection system, enabling various cooking modes such as No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, and more.

The flexible five-burner cooktop includes a powerful 18,000 BTU Quick Boil Burner.

A center oval burner with an integrated cast iron griddle is included for versatile cooking.

The range is equipped with a fingerprint-resistant, Smudge-Proofâ„¢ Stainless Steel finish for easy cleaning and maintenance.

Features

• Get over 15 ways to cook - Total Convection powers cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Air Sous Vide, Bread Proof, Dehydrate and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• Designed to meet all of your cooking needs with a powerful 18,000 BTU Quick Boil Burner and a center oval burner with an integrated cast iron griddle.
• With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Includes a premium cast-iron griddle pan that seamlessly integrates into your cooktop.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
• Backlit LED knobs light up when your burner is turned on.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
• Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Cook more at once with our extra large, 6.0 cu. ft. capacity oven.
• Resists fingerprints and cleans easily.
