Specifications

• Certifications and Approvals
  • UL Listed : Yes
  • ADA Compliant : Yes
  • RoHS : Yes
  • Star-K Certification : Yes
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Cooking Controls
  • Air Fry : Yes
  • Air Sous Vide : Yes
  • Bread Proof : Yes
  • Bake : Yes
  • Bake Time : Yes
  • Broil : Yes
  • Clock : Yes
  • Dehydrate : Yes
  • Keep Warm : Yes
  • No Preheat : Yes
  • Oven Light : Yes
  • Probe : Yes
  • Self Clean : Yes
  • Set Clock : Yes
  • Convection Roast : Yes
  • Delay Start : Yes
  • On / Off (for each element) : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Steam Roast : Yes
  • Timer On / Off : Yes
  • User Preferences : Yes
  • Convection Bake : Yes
  • Light : Yes
  • Lockout : Yes
  • Oven Indicator Light : Yes
  • Preheat : Yes
  • Cook Time : Yes
  • Cooktop Lockout : Yes
  • Delay Clean : Yes
  • Door Lock : Yes
  • Hot Surface : Yes
  • Kitchen Timer : Yes
  • Off : Yes
  • Oven Lock : Yes
  • Perfect Turkey : Yes
  • Temperature Display : Yes
  • Convection Convert : Yes
  • Multi-Stage Cooking : Yes
  • My Favorite : Yes
  • Slow Cook : Yes
  • Start : Yes
  • Start Time : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
• Cooktop
  • Bridge Element Location : Left
  • Cooking Surface Type : Smooth
  • Element On Indicator Light : Yes
  • Hot-Surface Indicator Light : Yes
  • Bridge Element : Yes
• Cooktop Performance
  • Right Front Element Burner Size : 9"
  • Right Rear Element Burner Size : 6"
  • Left Front Element Burner Size : 7"
  • Keep Warm Burner Location : Center Rear
  • Left Rear Element Burner : 1800 Watts
  • Center Rear Element Burner : 100 Watts
  • Left Rear Element Burner Size : 7"
  • Right Front Element Burner : 3200 Watts
  • Right Rear Element Burner : 1200 Watts
  • Left Front Element Burner : 1800 Watts
• Dimensions and Volume
  • Depth With Door 90° Open : 47 5/16"
  • Oven Capacity : 6.2 Cu. Ft.
  • Oven Interior Depth : 19 7/8"
  • Minimum Height : 35 3/8"
  • Depth With Handle : 28 1/2"
  • Oven Interior Height : 21 1/4"
  • Oven Interior Width : 25 3/16"
• Display
  • Control Location : Front
  • Display Interface Color : White
  • Display Type : Capacitive Touch
• Drawer
  • Drawer Handle Style : Integrated
  • Drawer Type : Storage
• Electrical Specifications
  • Connected Load @ 240V : 13 kW
  • Minimum Circuit Required : 40 Amps
  • Voltage Rating : 240 V
• Exterior
  • Backlit Knobs : Yes
  • Exterior Finish : Smudge-Proof® Black Stainless Steel
• General Specifications
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at frigidaire.com/en/ab1200
  • Frigidaire Fit Promise : Yes
  • Product Weight : 170 lbs
  • Prop 65 Label : Yes
  • Warranty - Labor : 1 Year
• Installation
  • Adjustable Leveling Legs : Yes
• Oven
  • Bake Element : 2500 Watts
  • Cleaning System : Yes
  • Convection : Yes
  • Convection Element : 3800 Watts
  • Convection Type : Total
  • Number of Rack Positions : 8
  • Bake Element Pass : 8
  • Bake Element Type : Hidden
  • Number of Convection Fans : 1
  • Oven Interior Color : Midnight Black
  • Broil Element : 4000 Watts
  • Broil Element Pass : 6
  • Oven Light Quantity : 2
  • Oven Light Type : Halogen
  • Oven Light Watts : 40 Watts
  • Rack Position Type : Embossed
  • Rack Type 1 : Flat
  • Rack Type 1 Quantity : 2

Description

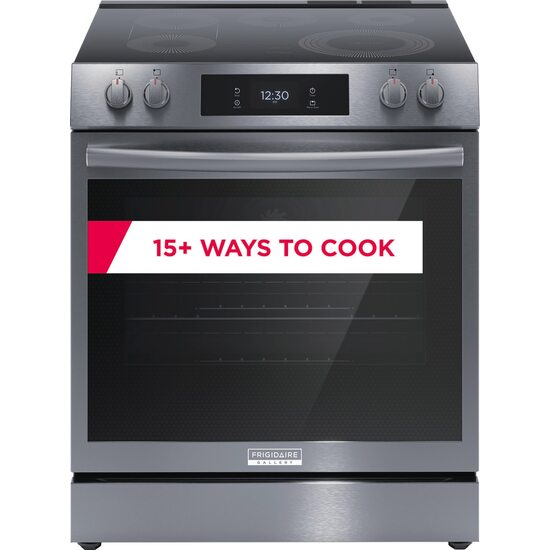

The Frigidaire Gallery 30'' Front Control Electric Range with Total Convection, features our most powerful and advanced convection system, which enables over 15 cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! The flexible five element cooktop includes a powerful 3,200 Watt EvenTemp� element and a convenient bridge element - designed to handle all of your cooking needs. This range also features backlit LED knobs, our premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof� Stainless Steel finish.

Features

• Get over 15 ways to cook - Total Convection powers cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Air Sous Vide, Bread Proof, Dehydrate and more!
• Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
• Make healthier and delicious meals for your entire family - right in your oven.
• Designed to handle all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element and convenient Bridge Element.
• With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
• Monitors and alerts when the desired finished cooking temperature has been reached.
• With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
• Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
• Connects two elements to create a larger cooking surface, perfect for a griddle or large pan.
• Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
• Lights up when the burner is turned on.
• Uses precisely-controlled temperature and airflow to lock in flavor and moisture to cook foods to the finish temperature you want.
• We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
• Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
• Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
• Cook more at once with our extra large, 6.2 cu.ft. capacity oven.
• Resists fingerprints and cleans easily.
