Specifications

• Accessories (sold separately)
  • Door panel stainless steel Left hinge 84" : RD2484WLD
  • Handle kit Contemporary round, aluminium : AHSRD2484W
  • Handle kit Contemporary square fine, aluminium : AHD5RD2484W
  • Handle kit Contemporary square fine, black : AHD5RD2484WB
  • Toe kick stainless steel 24" : AKRS2404
  • Toe kick stainless steel 54" : AKRS5404
  • Toe kick stainless steel 60" : AKRS6004
  • Door panel stainless steel Right hinge 84" : RD2484WRD
  • Handle kit Classic : AHCLRD2484W
  • Handle kit Professional round flush : AHP3RD2484W
  • Toe kick stainless steel 48" : AKRS4804
  • Toe kick stainless steel 72" : AKRS7204
  • Toe kick stainless steel 78" : AKRS7804
  • Handle kit Professional round flush, Brass off-stands : AHP3RD2484WBA
  • Handle kit Professional round flush, Dark Copper off-stands : AHP3RD2484WDC
  • Joiner kit : AJ-RS84LR
  • Toe kick stainless steel 42" : AKRS4204
  • Toe kick stainless steel 66" : AKRS6604
  • Toe kick stainless steel 84" : AKRS8404
• Capacity
  • Volume : 12.1cu ft
  • Volume freezer : 4.1cu ft
  • Volume refrigerator : 8cu ft
  • Total gross capacity : 12.08cu ft
• Consumption
  • Energy rating : Energy star
  • Energy usage : 439kWh/year
• Features
  • Door alarm : true
  • Fruit and vegetable bins : 2
  • LED side lighting : true
  • SmartTouch interface at counter height : true
  • Stackable bottle holders : 4
  • Adjustable door shelves : 4
  • LED ceiling lighting : true
  • LED lighting : true
  • Adjustable glass cantilevered shelves : true
  • Covered door shelves : 1
  • Gallon door shelves : 1
  • Internal water dispenser : true
  • LED bin lighting : true
• Freezer features
  • Automatic ice maker : true
  • Bottle chill : true
  • Door alarm : true
  • Fast freeze : true
  • Freezer bins : 2
  • LED bin lighting : true
  • LED side lighting : true
  • Max Cold : true
  • LED ceiling lighting : true
  • Freezer trays : 1
  • Ice Boost : true
  • SmartTouch interface at counter height : true
• Performance
  • ActiveSmart™ Foodcare : true
  • Adaptive defrost : true
  • Frost free freezer : true
  • Dual evaporator : true
  • Inverter controlled compressor : true
  • Sabbath mode : true
  • Variable food modes : Pantry; Fridge; Soft freeze; Freezer
  • Variable temperature zones : 2
  • Humidity control system : true
• Power requirements
  • Supply frequency : 60Hz
  • Rated current : 10A
  • Supply voltage : 115V
• Product dimensions
  • Depth : 24"
  • Height : 84"
  • Width : 23 3/4"
• Product information
  • Unpackaged weight : 269lbs
  • Packaged weight : 357lbs
• Warranty
  • Parts and labor : 2 years
  • Sealed system parts only : 5 years

Description

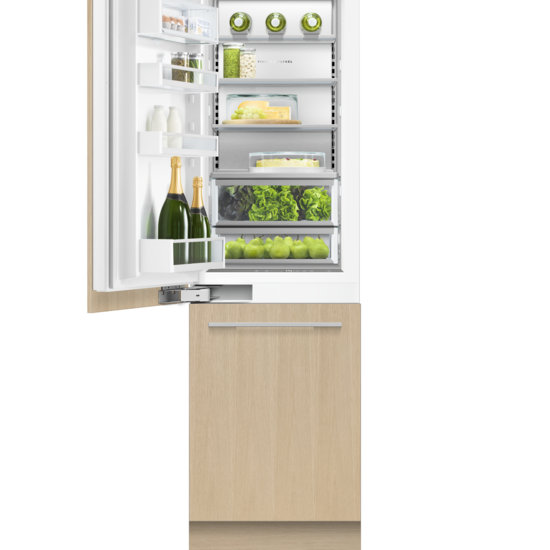

24 Inch Panel Ready Built-In Bottom Mount Refrigerator

12.1 Cu. Ft. Total Capacity, offering ample space for fresh and frozen foods

Features ActiveSmartâ„¢ Foodcare technology for optimal food preservation and energy efficiency

Humidity-Controlled System to maintain the ideal environment for fruits and vegetables

Equipped with an Internal Water Dispenser for convenient access to chilled water

Includes an Ice Maker to provide a steady supply of ice whenever needed

SmartTouch Control Panel for intuitive and easy operation

ENERGY STAR® certified, ensuring energy efficiency and reducing utility costs

Left Hinge design for seamless integration into your kitchen cabinetry

Features

• Create the perfect climate and store each type of food at optimal temperature and humidity with Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze or Freezer. Use the Max cold feature for periods of high refrigerator or freezer use, or full grocery loads.
• ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
• Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. Internal storage space is maximized thanks to a flush-fit slimline water dispenser that gives a continuous flow of temperature-controlled chilled water to fill almost any size or shape of vessel. The dual valve system instantly stops water flow to prevent drips and spills.
• Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer. The door and veggie bins are family safe, allowing for hands-free operation thanks to its soft close mechanism
• Both the 24" and 30" Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
• These models fit flush and have only ?” gaps around them with no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry for an understated and clean look with any kitchen layout.
• The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and quality hinges designed for daily use.
