Specifications

• Accessories (included)
  • Adjustable feet covers : true
  • Branded coin end cap : true
• Accessories (sold separately)
  • Square handle option : AH-R48
• Burner ratings
  • Maximum burner power : 23500 BTU
  • Power front right : 18500BTU
  • Total cooktop power : 79000 BTU
  • Power back right : 18500BTU
  • Power back left : 18500BTU
  • Power front left : 23500BTU
• Capacity
  • Shelf positions (main oven) : 5
  • Shelf positions (second oven) : 5
  • Total capacity second oven : 2.1cu ft
  • Usable capacity (main oven) : 3.8cu ft
  • Total capacity (main oven) : 4.8cu ft
• Cleaning
  • Pyrolytic self-clean : true
  • Easy clean porcelain basepan : true
• Controls
  • Dial with illuminated halo : true
  • Dual control oven dials : true
  • Precise cooking with food probe : true
  • Recipe and food based functions : true
  • Electric circuit : 4 wire
  • Multi-language interface : true
  • Sabbath mode : true
  • Smart Appliance : true
  • Tilting touch screen interface : true
  • High resolution display : true
  • Metal illuminated dials : true
• Gas requirements
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
  • Supply Pressure (natural gas) : 6" to 9" W.C
• Oven features
  • Internal light : true
  • True convection : true
  • Electronic oven control : true
  • Full extension telescopic sliding shelves : true
  • Auto re-ignition system : true
  • Concealed element : true
• Oven functions
  • Bake : true
  • Clean : true
  • Air fry : true
  • Classic bake : true
  • Convection bake : true
  • Convection broil : true
  • Warm : true
  • Maxi Broil : true
  • Pastry bake : true
  • Rapid proof : true
  • Roast : true
  • Slow cook : true
  • True convection : true
  • Dehydrate : true
  • Number of functions : 15
  • Pizza bake : true
• Oven performance
  • Bake : 4600W
  • Broil : 3600W
  • Broil power : 4000W
  • Main oven - True convection power : 2500W
• Power requirements
  • Power supply : 120 / 240 V, 60 Hz
  • Connection : 4-prong grounding type [NEMA 14-50P plug]
  • Service : 50 A
• Product dimensions
  • Depth : 29 1/8"
  • Height : 35 3/4 - 36 3/4"
  • Width : 47 7/8"
• Rangetop features
  • Gentle heat : true
  • Heat settings : 9
  • Sealed range top : true
  • SmartZone : 2
  • Vent trim included : true
  • Zone bridging : true
  • Induction cooking technology : true
• Rangetop Performance
  • Left front zone rating : 2100 (3700)W
  • Left rear zone rating : 2100 (3700)W
  • Number of burners : 4
  • Number of cooking zones : 4
  • PowerBoost : true
  • PowerBoost all zones : up to 3700W
  • Right rear zone rating : 2100 (3700)W
  • Right front zone rating : 2100 (3700)W
• Recommended Back Guards Ventilation
  • Recommended hood : HCB48-12_N (48" Professional Range Hood, Dual Blower)
  • Combustible situation : BGRV3-3048H
  • Non combustible situation : BGRV2-3048 / BGRV2-1248
• Safety
  • ADA compliant : true
  • Pan detection system : true
  • Safety time out : true
  • Surface hot indicators : true
• Secondary oven features
  • Electronic oven control : true
  • Food probe : true
  • Internal light : true
  • 3/4 Extension racks : 2
• Secondary oven functions
  • Air fry : true
  • Bake : true
  • Classic bake : true
  • Convection bake : true
  • Convection broil : true
  • Maxi broil : true
  • Number of secondary oven functions : 11
  • Pastry bake : true
  • Pizza bake : true
  • Rapid proof : true
  • Roast : true
  • Warm : true
• Warranty
  • Parts and labor : Limited 2 years

Description

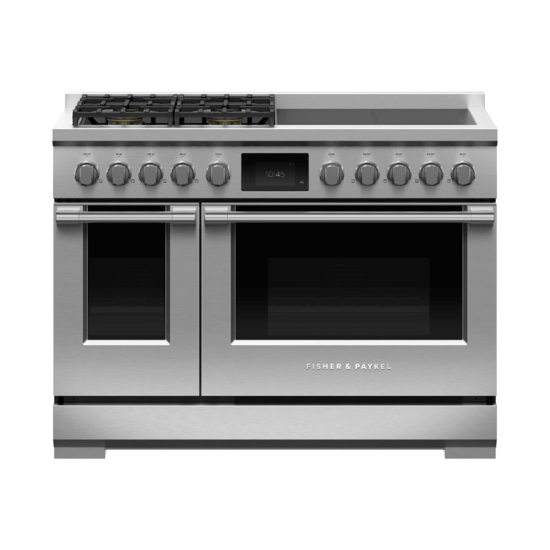

With both induction and gas cooktops and two convection ovens, you're ready to create a feast � guided by an intuitive touchscreen.

Features

• Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
• Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
• No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
• On the gas side of the cooktop, Sealed dual flow burners deliver power up to 23,500 BTU, while the induction side delivers up to 3700W. This finely tuned cooktop provides instant and immediate control from the highest heat to the most gentle simmer.
• This range has craftsmanship in every detail, with real stainless steel, high-quality glass, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
• The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function. The induction zones only need a quick wipe after use to keep them clean.
