Specifications

• Accessories (sold separately)
  • Square handle option : AH-R48
• Burner ratings
  • Maximum burner power : 23500 BTU
  • Power back centre : 18500BTU
  • Power back left : 18500BTU
  • Power front centre : 18500BTU
  • Power griddle : 16500BTU
  • Power front right : 18500BTU
  • Total cooktop power : 132500 BTU
  • Power back right : 18500BTU
  • Power front left : 23500BTU
• Capacity
  • Shelf positions (main oven) : 5
  • Shelf positions (second oven) : 5
  • Total capacity (main oven) : 5.3cu ft
  • Usable capacity (main oven) : 3.9cu ft
  • Total capacity second oven : 2.4cu ft
• Cleaning
  • Easy clean porcelain basepan : true
• Controls
  • Metal illuminated dials : true
• Gas requirements
  • Supply Pressure (natural gas) : 6" to 9" W.C
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
• Oven features
  • Auto re-ignition system : true
  • Electronic oven control : true
  • Full extension telescopic sliding shelves : true
  • Infrared Broiler : true
  • Broil pan : true
  • Internal light : true
• Oven functions
  • Bake : true
  • Broil : true
  • Convection bake : true
  • Number of functions : 4
  • Slow cook : true
• Oven performance
  • Bake power : 19700BTU
  • Broil : 18500 BTU
  • Secondary oven - Bake power : 18000BTU
• Power requirements
  • Power supply : 120 V, 60 Hz
  • Service : 15 A
  • Connection : 3-prong grounding type plug
• Product dimensions
  • Depth : 29 1/8"
  • Height : 35 3/4 - 36 3/4"
  • Width : 47 7/8"
• Rangetop features
  • Vent trim included : true
  • Sealed range top : true
• Rangetop Performance
  • Number of burners : 6
• Recommended Back Guards Ventilation
  • Recommended hood : HCB48-12_N (48" Professional Range Hood, Dual Blower)
  • Combustible situation : BGRV3-3048H
  • Non combustible situation : BGRV2-3048 / BGRV2-1248
• Safety
  • ADA compliant : true
• Secondary oven features
  • 3/4 Extension racks : 2
  • Electronic oven control : true
  • Internal light : true
• Secondary oven functions
  • Bake : true
  • Convection bake : true
  • Proof : true
  • Number of secondary oven functions : 4
  • Slow cook : true
• Warranty
  • Parts and labor : Limited 2 years

Description

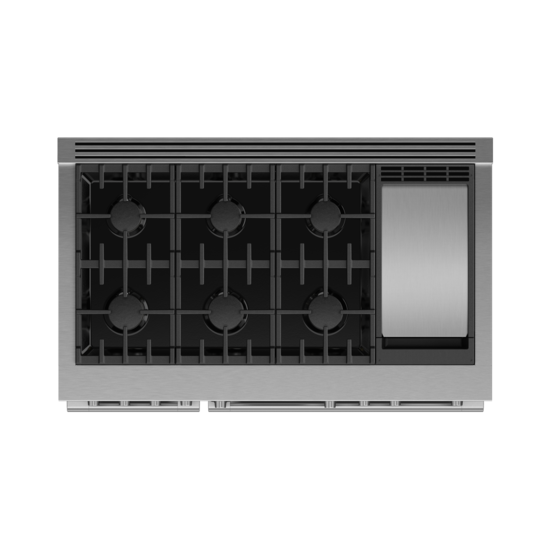

With Professional styling, this large range has six burners delivering powerful high heat, a griddle and two gas ovens.

Features

• Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey. The griddle plate allows you to cook several foods at once.
• Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
• The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
• This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
• Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.
• Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
