Specifications

• Burner ratings
  • Power back left : 11500BTU
  • Power back right : 11500BTU
  • Power centre : 16000BTU
  • Power front left : 15000BTU
  • Total cooktop power : 91000 BTU
  • Maximum burner power : 16000 BTU
  • Power griddle : 22000BTU
  • Power front right : 15000BTU
• Capacity
  • Shelf positions (main oven) : 5
  • Total capacity second oven : 2.4cu ft
  • Usable capacity (main oven) : 3.9cu ft
  • Shelf positions (second oven) : 5
  • Total capacity (main oven) : 5.3cu ft
• Cleaning
  • Easy clean porcelain basepan : true
• Controls
  • Electric circuit : 3 wire
  • Metal illuminated dials : true
• Gas requirements
  • Supply Pressure (LPG) : 11" to 14" W.C
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
• Oven features
  • Electronic oven control : true
  • Full extension telescopic sliding shelves : true
  • Infrared Broiler : true
  • Internal light : true
  • Titanium coated, illuminated metal dials : true
  • Auto re-ignition system : true
• Oven functions
  • Convection bake : true
  • Bake : true
  • Broil : true
  • Slow cook : true
• Oven performance
  • Main oven - Broil power : 19,000 BTU
  • Secondary oven - Bake power : 14,000 BTU
  • Main oven - Bake power : 21,500 BTU
• Power requirements
  • Supply frequency : 60Hz
  • Amperage : 15A
• Product dimensions
  • Depth : 29 1/8"
  • Height : 35 3/4 - 36 3/4"
  • Width : 47 7/8"
• Rangetop features
  • Sealed range top : true
  • Vent trim included : true
• Recommended Back Guards Ventilation
  • Combustible situation : BGRV3-3048H
  • Non combustible situation : BGRV2-3048 / BGRV2-1248
  • Recommended hood : HCB48-12_N (48"" Professional Range Hood, Dual Blower)
• Safety
  • ADA compliant : true
  • Full extension telescopic sliding shelves : true
• Secondary oven features
  • Electronic oven control : true
  • 3/4 Extension racks : 2
  • Internal light : true
• Secondary oven functions
  • Proof : true
  • Slow cook : true
  • Bake : true
  • Convection bake : true
  • Number of secondary oven functions : 4

Description

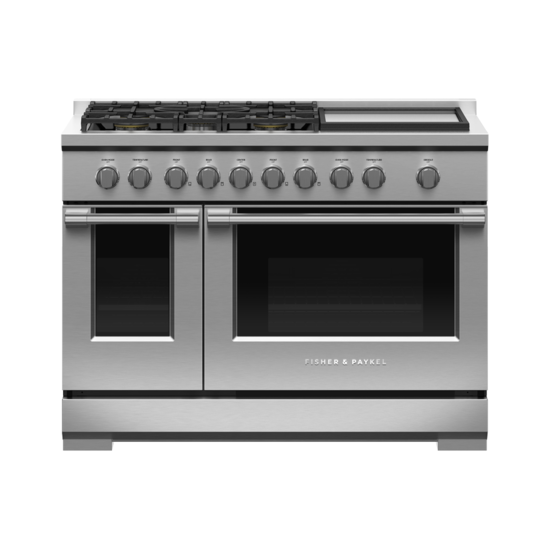

With Professional styling, this large range has five burners delivering powerful high heat, a griddle and two gas ovens.

Features

• Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey. The griddle plate allows you to cook several foods at once.
• Sealed Dual Flow Burners™ deliver cooktop power up to 17,000 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
• The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
• This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
• Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.
• Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
