Specifications

• Accessories (included)
  • Adjustable feet covers : true
  • Branded coin end cap : true
• Accessories (sold separately)
  • Square handle option : AH-R48
• Burner ratings
  • Power back right : 18500BTU
  • Power back centre : 23500BTU
  • Power back left : 18500BTU
  • Power front left : 18500BTU
  • Maximum burner power : 23500 BTU
  • Power front right : 18500BTU
  • Power griddle : 24000BTU
  • Total cooktop power : 121500 BTU
• Capacity
  • Shelf positions (main oven) : 5
  • Shelf positions (second oven) : 5
  • Total capacity second oven : 2.1cu ft
  • Total capacity (main oven) : 4.8cu ft
  • Usable capacity (main oven) : 3.8cu ft
• Cleaning
  • Easy clean porcelain basepan : true
  • Pyrolytic self-clean : true
• Controls
  • Dial with illuminated halo : true
  • Dual control oven dials : true
  • Electric circuit : 4 wire
  • High resolution display : true
  • Metal illuminated dials : true
  • Sabbath mode : true
  • Smart Appliance : true
  • Tilting touch screen interface : true
  • Wi-Fi connectivity : true
  • Precise cooking with food probe : true
  • Recipe and food based functions : true
  • Multi-language interface : true
• Gas requirements
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
  • Supply Pressure (natural gas) : 6" to 9" W.C
• Oven features
  • Full extension telescopic sliding shelves : true
  • Internal light : true
  • Auto re-ignition system : true
  • Concealed element : true
  • Electronic oven control : true
  • Titanium coated, illuminated metal dials : true
• Oven functions
  • Bake : true
  • Convection broil : true
  • Classic bake : true
  • Clean : true
  • Dehydrate : true
  • Maxi Broil : true
  • Number of functions : 15
  • Pizza bake : true
  • Rapid proof : true
  • Roast : true
  • Slow cook : true
  • True convection : true
  • Air fry : true
  • Convection bake : true
  • Warm : true
  • Pastry bake : true
• Oven performance
  • Bake power : 4600
  • Broil : 3600W
  • Main oven - True convection power : 2500W
• Power requirements
  • Power supply : 120 / 240 V, 60 Hz
  • Connection : 4-prong grounding type [NEMA 14-50 plug]
  • Service : 50 A
• Product dimensions
  • Height : 35 3/4 - 36 3/4"
  • Width : 47 7/8"
  • Depth : 29 1/8"
• Rangetop features
  • Sealed range top : true
  • Vent trim included : true
• Recommended Back Guards Ventilation
  • Non combustible situation : BGRV2-3048 / BGRV2-1248
  • Recommended hood : HCB48-12_N (48"" Professional Range Hood, Dual Blower)
  • Combustible situation : BGRV3-3048H
• Safety
  • ADA compliant : true
• Secondary oven features
  • 3/4 Extension racks : 2
  • Concealed element : true
  • Electronic oven control : true
  • Food probe : true
  • Internal light : true
• Secondary oven functions
  • Convection bake : true
  • Air fry : true
  • Bake : true
  • Convection broil : true
  • Maxi broil : true
  • Number of secondary oven functions : 11
  • Pizza bake : true
  • Roast : true
  • Classic bake : true
  • Pastry bake : true
  • Rapid proof : true
  • Warm : true

Description

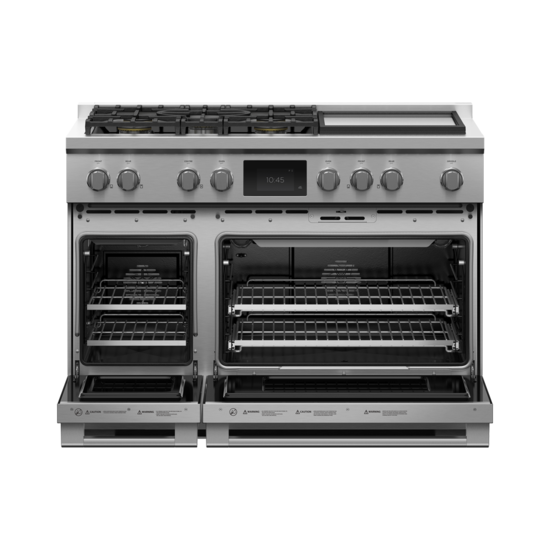

With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.

Features

• Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
• Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
• No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
• Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
• This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
• The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
