Specifications

• Accessories (included)
  • Adjustable feet covers : true
  • Branded coin end cap : true
• Accessories (sold separately)
  • Square handle option : AH-R48
• Burner ratings
  • Maximum burner power : 19000 BTU
  • Power back left : 11500BTU
  • Power back right : 11500BTU
  • Power centre : 19000BTU
  • Power front left : 15000BTU
  • Power front right : 15000BTU
  • Power griddle : 24000BTU
  • Total cooktop power : 96000 BTU
• Capacity
  • Shelf positions (main oven) : 5
  • Shelf positions (second oven) : 5
  • Total capacity (main oven) : 4.8cu ft
  • Total capacity second oven : 2.1cu ft
  • Usable capacity (main oven) : 3.8cu ft
• Cleaning
  • Easy clean porcelain basepan : true
  • Pyrolytic self-clean : true
• Controls
  • Electric circuit : 4 wire
  • High resolution display : true
  • Multi-language interface : true
  • Precise cooking with food probe : true
  • Recipe and food based functions : true
  • Sabbath mode : true
  • Tilting touch screen interface : true
  • Wi-Fi connectivity : true
  • Metal illuminated dials : true
  • Dial with illuminated halo : true
  • Dual control oven dials : true
  • Smart Appliance : true
• Gas requirements
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
  • Supply Pressure (LPG) : 11" to 14" W.C
• Oven features
  • Auto re-ignition system : true
  • Concealed element : true
  • Electronic oven control : true
  • Full extension telescopic sliding shelves : true
  • Internal light : true
  • Titanium coated, illuminated metal dials : true
• Oven functions
  • Bake : true
  • Convection bake : true
  • Dehydrate : true
  • Maxi Broil : true
  • Number of functions : 15
  • Pastry bake : true
  • Roast : true
  • Slow cook : true
  • Warm : true
  • Classic bake : true
  • Convection broil : true
  • True convection : true
  • Air fry : true
  • Clean : true
  • Pizza bake : true
  • Rapid proof : true
• Oven performance
  • Main oven - True convection power : 2500W
  • Bake power : 4600
  • Broil : 3600W
• Power requirements
  • Connection : 4-prong grounding type [NEMA 14-50 plug]
  • Power supply : 120 / 240 V, 60 Hz
  • Service : 50 A
• Product dimensions
  • Height : 35 3/4 - 36 3/4"
  • Depth : 29 1/8"
  • Width : 47 7/8"
• Rangetop features
  • Sealed range top : true
  • Vent trim included : true
• Recommended Back Guards Ventilation
  • Recommended hood : HCB48-12_N (48"" Professional Range Hood, Dual Blower)
  • Combustible situation : BGRV3-3048H
  • Non combustible situation : BGRV2-3048 / BGRV2-1248
• Safety
  • ADA compliant : true
• Secondary oven features
  • Food probe : true
  • Electronic oven control : true
  • Internal light : true
  • 3/4 Extension racks : 2
  • Concealed element : true
• Secondary oven functions
  • Convection bake : true
  • Pastry bake : true
  • Air fry : true
  • Bake : true
  • Classic bake : true
  • Convection broil : true
  • Maxi broil : true
  • Number of secondary oven functions : 11
  • Pizza bake : true
  • Rapid proof : true
  • Roast : true
  • Warm : true

Description

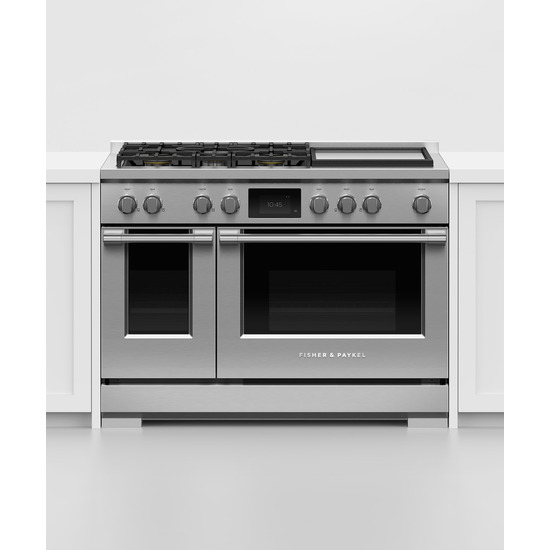

With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.

Features

• Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
• Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
• No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
• Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
• This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
• The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
