Specifications

• Accessories (included)
  • Adjustable feet covers : true
  • Branded coin end cap : true
• Accessories (sold separately)
  • Square handle option : AH-R36
• Burner ratings
  • Power back centre : 18500BTU
  • Power back left : 18500BTU
  • Power back right : 18500BTU
  • Power front centre : 18500BTU
  • Total cooktop power : 121000 BTU
  • Maximum burner power : 23500 BTU
  • Power front left : 23500BTU
  • Power front right : 23500BTU
• Capacity
  • Shelf positions : 5
  • Total capacity : 4.8cu ft
  • Usable capacity : 3.8cu ft
• Cleaning
  • Easy clean porcelain basepan : true
  • Pyrolytic self-clean : true
• Controls
  • Metal illuminated dials : true
  • Multi-language interface : true
  • Precise cooking with food probe : true
  • Sabbath mode : true
  • Smart Appliance : true
  • Tilting touch screen interface : true
  • Wi-Fi connectivity : true
  • Dial with illuminated halo : true
  • Electric circuit : 4 wire
  • High resolution display : true
  • Recipe and food based functions : true
• Gas requirements
  • Fitting and pipe : ½ NPT, min. ?" Ø flex line
  • Supply Pressure (natural gas) : 6" to 9" W.C
• Oven features
  • Concealed element : true
  • Auto re-ignition system : true
  • Electronic oven control : true
  • Large broil pan : true
  • Self-clean proof side racks : true
  • Titanium coated, illuminated metal dials : true
  • Food probe : true
  • Full extension telescopic sliding shelves : true
  • Internal light : true
• Oven functions
  • Air fry : true
  • Classic bake : true
  • Clean : true
  • Convection broil : true
  • Dehydrate : true
  • Maxi Broil : true
  • Number of functions : 15
  • Pastry bake : true
  • Rapid proof : true
  • Roast : true
  • Slow cook : true
  • True convection : true
  • Warm : true
  • Bake : true
  • Convection bake : true
  • Pizza bake : true
• Oven performance
  • Bake power : 4600W
  • Broil : 4000 BTU
  • Main oven - True convection power : 2500W
• Power requirements
  • Connection : 4-prong grounding type [NEMA 14-50 plug]
  • Power supply : 120 / 240 V, 60 Hz
  • Service : 30 A
• Product dimensions
  • Width : 35 7/8"
  • Depth : 29 1/8"
  • Height : 35 3/4 - 36 3/4"
• Rangetop features
  • Sealed range top : true
  • Vent trim included : true
• Recommended Back Guards Ventilation
  • Combustible situation : BGRV3-3036H
  • Non combustible situation : BGRV2-3036 / BGRV2-1236
  • Recommended hood : HCB36-6_N (36" Professional Range Hood) / HCB36-12_N (36" Professional Range Hood, Dual Blower)
• Safety
  • ADA compliant : true
  • Full extension telescopic sliding shelves : true
• Secondary oven features
  • Food probe : true

Description

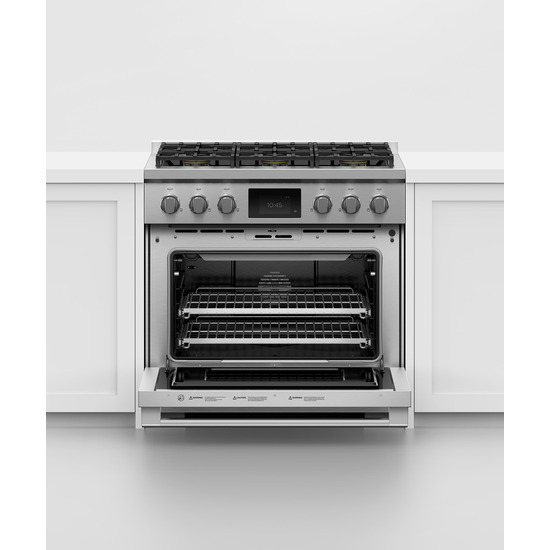

Get the best of gas and convection technology in this striking range with intuitive touchscreen and specialized cooking functions.

Features

• Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
• Featuring a large 4.8 cu ft total capacity convection oven, with enough room to fit a 32 lb turkey and full-size baking sheets.
• No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
• Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
• This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
• The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
