Specifications

• Accessories (included)
  • 2-pc grill system (Broil pan and Grill rack) : true
  • Broil rack : true
  • Full extension sliding shelves : 2 sets (part 578755)
  • Full extension telescopic shelves : 2 sets (part 578744)
  • Broil pan : true
• Accessories (sold separately)
  • Hob rear trim : 3" (part 81654)
  • Kick strip, stainless steel (optional) : KICKOR36X1
  • Kick strip, white (optional) : KICKOR36W1
  • Kick strip, black (optional) : KICKOR36B1
  • Kick strip, red (optional) : KICKOR36R1
• Capacity
  • Shelf positions : 7
• Cleaning
  • Drop down broil element : true
  • Pyrolytic proof shelf runners : true
  • Pyrolytic self-clean : true
  • Removable oven door : true
  • Removable shelf runners : true
  • Acid resistant graphite enamel : true
  • Flat easy clean glass surface : true
• Controls
  • Audio feedback : true
  • Automatic cooking/minute timer : true
  • Automatic pre-set temperatures : true
  • Celsius/Fahrenheit temperature : true
  • Electronic clock : true
  • Precise electronic temperature control : true
  • Sabbath mode : true
  • High resolution display : true
  • Laser etched graphics : true
  • Turned stainless steel clock buttons : true
  • Toughened fused glass graphics : true
  • Turned stainless steel clock crown (dial) : true
• Oven features
  • Bright chromed, cast zinc dials with illuminated halos : true
  • Full extension telescopic sliding shelves : true
  • Soft open/close door : true
  • Turned stainless steel clock dial : true
  • Concealed element : true
  • Convection : true
  • Electronic oven control : true
  • Twin cavity fans : true
  • Internal light : 4 x 25W halogen (2 side & 2 top)
  • AeroTech™ technology : true
  • Automatic rapid pre-heat : true
  • Warming drawer : true
• Oven functions
  • Aero™ Pastry with Pizza mode : true
  • Bake : true
  • Number of functions : 9
  • Rapid proof : true
  • Roast : true
  • Self-clean function : true
  • True Aero : true
  • Aero Bake : true
  • Aero Broil : true
• Oven performance
  • Broil power : 4300W
  • CoolTouch door : Quadruple glazed
  • Warming drawer power : 220W
• Power requirements
  • Connection : 4-prong [NEMA 14-50P power cord]
  • Power supply : 120 / 240 V or 120 / 208 V, 60 Hz
  • Service : 40 A
• Product dimensions
  • Depth : 25 1/4"
  • Height : 35 3/4 - 37 1/4"
  • Width : 35 7/8"
• Rangetop features
  • Auto heat reduce : true
  • Dual zones : true
  • Heat settings : 9
  • SmartZone : 1
  • Zone bridging : true
  • Gentle heat : true
  • Induction cooking technology : true
  • Hob rear trim : 3" (part 81654)
• Rangetop Performance
  • PowerBoost : true
  • Centre : 2600W
  • Number of cooking zones : 5
• Safety
  • ADA compliant : true
  • Full extension telescopic sliding shelves : true
  • Pan detection system : true
  • Balanced oven door : true
  • Catalytic venting system : true
  • Child lock : true
  • CoolTouch door : true
  • Non-tip shelves : true
  • Safety time out : true
  • Spill containment : 1/8 gallon
  • Spillage auto off : true
  • Advanced cooling system : true
  • Anti-tilt bracket : true
  • Surface hot indicators : true

Description

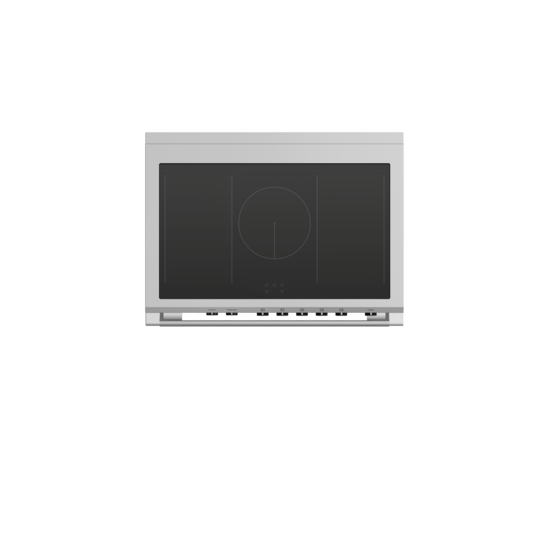

Heritage styling meets modern performance, including an induction cooktop with the ability to pair zones to create a large cook zone.

Features

• Discover the flexibility to get creative in the kitchen with nine oven functions including Bake, Roast, and Aero™ Pastry with Pizza Bake. The AeroTech™ system circulates air evenly throughout the entire oven, perfect for multi-shelf cooking.
• The induction cooktop provides instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
• Every detail has been carefully crafted, from the heritage design cues, to the solid, perfectly balanced soft-close door, and to the chromed cast zinc dials. They all add up to an exceptional, premium range.
• The large 4.9 cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.
• The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new. The oven door and runners can also be removed for easy cleaning.
• Designed for your safety and convenience, this range features full extension telescopic sliding shelves, a quadruple-glazed CoolTouch door, and a child lock. Induction cooktops heat only the cookware, not the elements, so they are much safer in family kitchens.
