Specifications

• Accessories (included)
  • Small pot support : 1 (part 533981)
  • 2-pc grill system (Broil pan and Grill rack) : true
  • Broil rack : true
  • Broil pan : true
  • Full extension telescopic shelves : 2 sets (part 578744)
• Accessories (sold separately)
  • Kick strip, stainless steel (optional) : KICKOR36X1
  • Kick strip, black (optional) : KICKOR36B1
  • Kick strip, white (optional) : KICKOR36W1
  • Kick strip, red (optional) : KICKOR36R1
• Burner ratings
  • Semi-rapid burner (natural gas) : 1500 - 8000BTU
  • Dual wok burner inner/outer (natural gas) : 1000 - 18000BTU
  • Maximum burner power : 18000 BTU
  • Semi-rapid burner (LPG) : 1500 - 7600BTU
  • Triple ring wok burner (LPG) x2 : 6100 - 12000BTU
  • Total cooktop power : 62000 BTU
  • Dual wok burner inner/outer (LPG) : 1000 - 18000BTU
  • Triple ring wok burner (natural gas) x2 : 6100 - 14000BTU
• Capacity
  • Total capacity : 4.9cu ft
  • Shelf positions : 7
  • Usable capacity : 4.3cu ft
• Cleaning
  • Removable oven door : true
  • Removable shelf runners : true
  • Acid resistant graphite enamel : true
  • Drop down grill element : true
  • Pyrolytic self-clean : true
  • Drop down broil element : true
  • Flat easy clean glass surface : true
  • Pyrolytic proof shelf runners : true
• Controls
  • Celsius/Fahrenheit temperature : true
  • Precise electronic temperature control : true
  • Audio feedback : true
  • Automatic cooking/minute timer : true
  • Automatic pre-set temperatures : true
  • Electronic capacitive touch controls : true
  • Electronic clock : true
  • High resolution display : true
  • Laser etched graphics : true
  • Turned stainless steel clock buttons : true
  • Turned stainless steel clock crown (dial) : true
  • Sabbath mode : true
• Gas requirements
  • Supply Pressure (LPG) : 11" W.C.P
  • Supply Pressure (natural gas) : 4" W.C.P
• Oven features
  • Soft open/close door : true
  • AeroTech™ technology : true
  • Auto re-ignition system : true
  • Bright chromed, cast zinc dials with illuminated halos : true
  • Electronic oven control : true
  • Full extension telescopic sliding shelves : true
  • Automatic rapid pre-heat : true
  • Twin cavity fans : true
  • Concealed element : true
  • True convection : true
  • Turned stainless steel clock dial : true
  • Internal light : 4 x 25W halogen (2 side & 2 top)
  • Warming drawer : true
• Oven functions
  • Broil : true
  • Number of functions : 9
  • Self-clean function : true
  • True Aero : true
  • True convection : true
  • Aero Bake : true
  • Rapid proof : true
  • Aero™ Pastry with Pizza mode : true
  • Aero Broil : true
  • Bake : true
  • Roast : true
• Oven performance
  • CoolTouch door : Quadruple glazed
  • Warming drawer power : 220W
  • Broil power : 4300W
• Power requirements
  • Amperage : 30A
  • Supply frequency : 60Hz
• Product dimensions
  • Depth : 25 1/4"
  • Height : 35 3/4 - 37 1/4"
  • Width : 35 7/8"
• Rangetop features
  • LPG/Natural gas compatible : true
  • Sealed range top : true
  • Hob rail : true
  • Brass burner spreader (power burner) : true
  • Embossed brass burner cap (power burner) : true
• Rangetop Performance
  • Number of burners : 5
• Safety
  • Anti-tilt bracket : true
  • Balanced oven door : true
  • Full extension telescopic shelves : 2 sets (part 578744)
  • ADA compliant : true
  • Advanced cooling system : true
  • Catalytic venting system : true
  • Spill containment : 5/8 gallon
  • Full extension telescopic sliding shelves : true
  • Non-tip shelves : true

Description

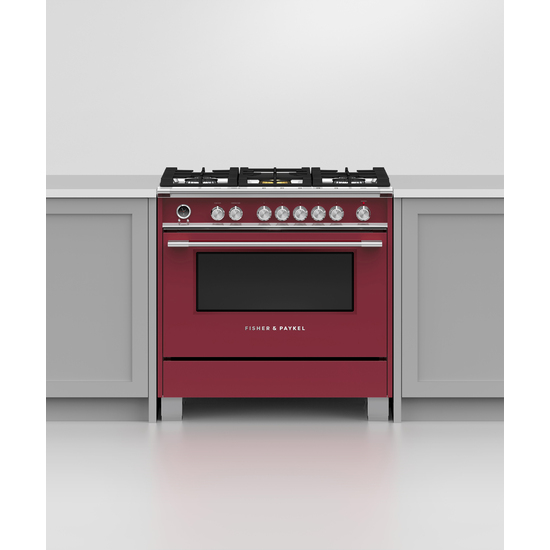

Get the best of both worlds with dual fuel. A gas cooktop is paired with a large, nine function convection oven.

Features

• Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
• Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop trivets and glowing halo dials all add up to an exceptional, premium range.
• Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The self-clean function breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.
• Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
• The generous 4.9 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 32 lb turkey.
• Accurate electronically-controlled oven heat gives you better results in the kitchen.
