Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
• Accessories (sold separately)
  • Door panel stainless steel : ADDW24TPX
  • Handle kit Classic : AHCL-DDDW-24X
  • Handle kit Contemporary round, aluminium : AHS-OBDD-60S
  • Handle kit Contemporary square fine, aluminium : AHD5-OBDD-60SX
  • Handle kit Contemporary square fine, black : AHD5-OBDD-60SB
  • Handle kit Contemporary square, aluminium : AHD3-OBDD-60S
  • Handle kit Professional round flush, Dark Copper off-stands : AHP3DDDW24DC
  • Handle kit Professional round flush, Brass off-stands : AHP3DDDW24BA
  • Handle kit Professional round flush : AHP3-DWDD-SX
• Capacity and loading
  • Accommodates round plates up to (lower basket) : 12 9/16"
  • Wine glass supports with stemware grippers : true
  • Fold down tines : true
  • Large crockery insert in lower basket : true
  • Adjustable height, foldable cupracks : true
  • Full width cutlery/utensil tray : true
  • Place settings : 15
  • Telescopic slides : true
  • Accommodates round plates up to (top basket) : 9 13/16"
• Consumption
  • Energy rating : Energy star Most efficient
  • Energy usage : 210kWh/year
  • Water usage (per wash cycle) : 3.2 gal
• Controls
  • Internal light : true
  • Internal wash selector : true
  • Intuitive capacitive touch controls : true
  • Rinse aid indicator light : true
  • Smart Appliance : true
  • Energy saving delay start option of up to 12 hours : true
  • Floor light cycle feedback : true
  • Keylock : true
• Features
  • Air curtain for bench protection : true
  • Auto Door Open Dry : true
  • Fan assisted drying : true
  • Flood protection : true
  • Variable wash pressure technology : true
  • Three-stage filtration system : true
  • Fully independent spray arms : true
  • Half load option : true
  • Internal tub material : Stainless Steel
  • Motor type : BLDC
• Performance
  • Noise emissions : 42dBA
• Power requirements
  • Amperage : 10A
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
• Product dimensions
  • Height : 33 3/4 - 36 1/8"
  • Width : 23 1/2"
  • Depth : 22 13/16"
• Warranty
  • Parts and labor : 2 years
• Wash Program Modifiers
  • Dry + : true
  • Half-load : true
  • Intensive : true
  • Sanitize : true
  • Wash modifiers : 4
• Wash programs
  • 60 min : true
  • Auto : true
  • Eco : true
  • Glassware : true
  • Heavy : true
  • Light : true
  • Medium : true
  • Wash programs : 8
  • Rinse : true
• Water connection
  • Water pressure : 30kPa - 1000 kPa

Description

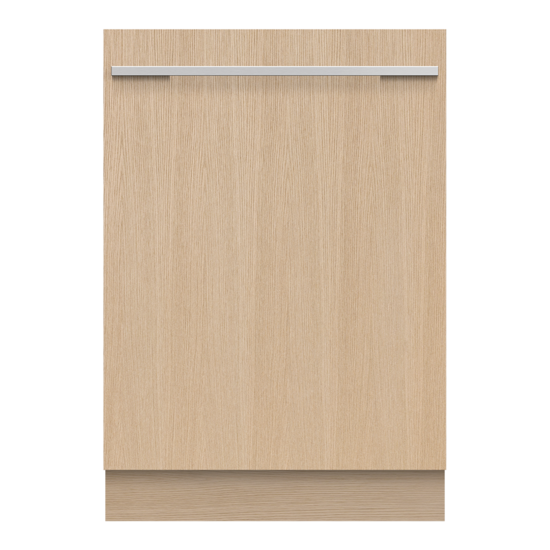

24-inch fully integrated built-in panel-ready smart dishwasher.

Accommodates up to 15 place settings for larger households or gatherings.

Offers 8 versatile wash cycles to handle various cleaning needs.

Operates quietly at a 42 dBA noise level for minimal disruption.

Features SmartHQ™ technology for remote control and monitoring.

Includes a sanitize option for enhanced hygiene and thorough cleaning.

ENERGY STAR certified for energy efficiency and eco-friendliness.

Features

• Customize your dishwasher with a panel and handle matching your cabinetry, for a seamless finish in your kitchen.
• For beautifully dry dishes every time, this dishwasher features an advanced drying system. It combines fan-assisted drying with an automatic door opening at the cycle's end. The Auto Door Open Dry feature releases excess steam, ensuring dishes are immediately ready for use or storage. An innovative air curtain channels the steam away from the adjacent benchtop, protecting your cabinetry.
• This dishwasher offers eight wash programs including Glassware and Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
• Create the perfect wash with our range of modifiers, from Intensive for a thorough clean to Half Load, ideal for a partial load. The Sanitize modifier provides extra protection, killing 99.9% of bacteria* in the final rinse, while Dry+ is great for plastic dishes. *Certified to NSF/ANSI Standard 184
• Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance, with minimal noise.
• With an Energy Star Most Efficient rating, this dishwasher is recognised as among the most energy efficient models on the market. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
• Designed to fit 15 place settings, this spacious model lets you stack large items with ease. Adjustable rack options provide flexibility for any load, with a full-width cutlery tray, height-adjustable middle rack, cup holders and wine glass supports.
