Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
• Capacity and loading
  • Accommodates round plates up to : 11"
  • Fold down tines : true
  • Place settings : 7
  • Adjustable height, foldable cupracks : true
  • Pitch adjustable tines : true
• Consumption
  • Energy usage : 144kWh/year
  • Water usage (per wash cycle) : 1.64 gal
  • Energy rating : Energy star
• Controls
  • Electronic fault/Diagnostic indicator : true
  • End of cycle beeps : true
  • Keylock : true
  • Internal wash selector : true
  • One button start : true
  • Smart Appliance : true
  • Energy saving delay start option of up to 12 hours : true
  • Rinse aid indicator light : true
• Features
  • Fan assisted drying : true
  • SmartDrive™ technology : true
  • Flood protection : true
  • Flow through detergent dispenser : true
  • Quiet operation : true
• Performance
  • Noise emissions : 42dBA
• Power requirements
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
  • Rated current : 15A
  • Amperage : 5A
  • Electric circuit : 3 wire
• Product dimensions
  • Depth : 22 3/4"
  • Height : 17 7/8"
  • Width : 23 9/16"
• Safety and compliance
  • ADA compliant : true
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Quick : true
  • Sanitize : true
  • Wash modifiers : 3
  • Extra Dry : true
• Wash programs
  • Heavy : true
  • Medium : true
  • Rinse : true
  • Delicate : true
  • Eco : true
  • Wash programs : 6
  • Fast : true
• Water connection
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Water supply : 3/8" to suit Male Compression Fitting
  • Inlet water temperature : Max 140°F

Description

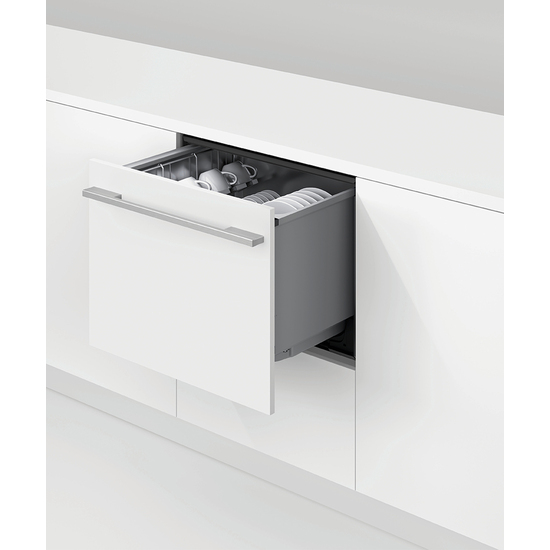

24 Inch Fully Integrated Single DishDrawer with 7 Place Settings

11 Wash Programs to accommodate a variety of cleaning needs

Quiet operation at 44 dBA for minimal noise during use

Convenient One Button Start for ease of operation

Includes a cutlery basket and foldable cup racks for flexibility

Delay Start option allows you to schedule washes at your convenience

ADA Compliant, ensuring accessibility for all users

Energy Star Certified for energy-efficient operation, reducing electricity consumption

Features

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• DishDrawer™ Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
• Running at a very low decibel rate, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
