Specifications

• Accessories
  • Cutlery basket : true
  • Kickstrip : true
  • Knife clip and multipurpose clip : true
• Capacity and loading
  • Accommodates round plates up to : 12.25" (top) 11" (bottom)
  • Adjustable height, foldable cupracks : true
  • Place settings : 14
  • Fold down tines : true
  • Pitch adjustable tines : true
• Consumption
  • Energy usage : 263kWh/year
  • Water usage (per wash cycle) : 3.28 gal running both tubs
• Controls
  • Energy saving delay start option of up to 12 hours : true
  • Electronic fault/Diagnostic indicator : true
  • Internal wash selector : true
  • One button start : true
  • Rinse aid indicator light : true
  • Wi-Fi connectivity : true
  • End of cycle beeps : true
  • Keylock : true
• Features
  • Fan assisted drying : true
  • Flood protection : true
  • Flow through detergent dispenser : true
  • Quiet operation : true
  • SmartDrive™ technology : true
• Performance
  • Noise on standard cycle top drawer : 44dBA
• Power requirements
  • Rated current : 15A
  • Supply frequency : 60Hz
  • Electric circuit : 3 wire
  • Supply voltage : 100 - 120V
  • Amperage : 10A
• Product dimensions
  • Height : 34 - 36 3/8"
  • Depth : 22 9/16"
  • Width : 23 9/16"
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Extra Dry : true
  • Sanitize : true
  • Wash modifiers : 3
  • Quick : true
• Wash programs
  • Medium : true
  • Delicate : true
  • Rinse : true
  • Wash programs : 6
  • Heavy : true
  • Eco : true
  • Fast : true
• Water connection
  • Inlet water temperature : Max 140°F
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Water supply : 3/8" to suit Male Compression Fitting

Description

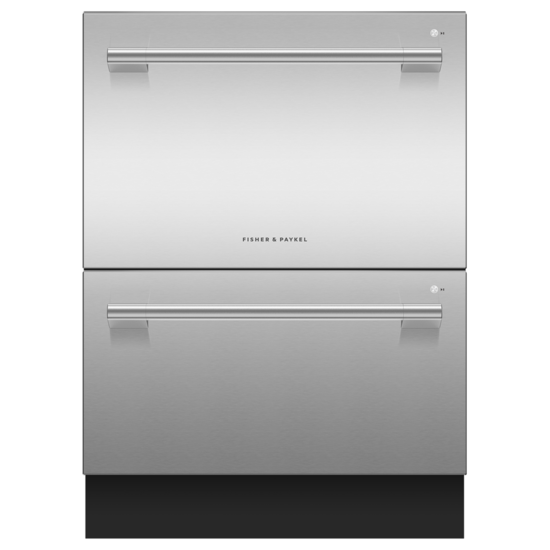

24-inch fully integrated double DishDrawer with 14 place settings capacity

9 wash programs to handle a variety of dishwashing needs

Independent wash functionality for separate cycles in each drawer

Quiet operation ensures minimal noise during washing

True Half Load option for energy and water savings with smaller loads

Adjustable racks for flexible dish arrangement

Delay start feature for scheduling washes at your convenience

Sanitize option for a hygienic and thorough clean

Round flush handles for a modern, sleek design

Energy Star certified for energy-efficient performance

Features

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
• Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can operate simultaneously to accommodate a variety of loads.
• DishDrawer™ Dishwashers are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials for a stylish finish in your kitchen.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
• Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
