Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
  • Knife clip and multipurpose clip : true
• Accessories (sold separately)
  • Door panel stainless steel : ADDD24DTPX
  • Handle kit Classic : AHCL-DDDW-24X
  • Handle kit Contemporary round, aluminium : AHS-OBDD-60S
  • Handle kit Contemporary square fine, aluminium : AHD5-OBDD-60SX
  • Handle kit Contemporary square fine, black : AHD5-OBDD-60SB
  • Handle kit Contemporary square, aluminium : AHD3-OBDD-60S
  • Handle kit Professional round flush : AHP3-DWDD-SX
  • Handle kit Professional round flush, Dark Copper off-stands : AHP3DDDW24DC
  • Handle kit Professional round flush, Brass off-stands : AHP3DDDW24BA
• Capacity and loading
  • Adjustable height, foldable cupracks : true
  • Fold down tines : true
  • Pitch adjustable tines : true
  • Place settings : 14
  • Accommodates round plates up to : 12.25" (top) 11" (bottom)
  • Wine glass supports with stemware grippers : true
• Consumption
  • Energy usage : 225kWh/year
  • Energy rating : Energy star Most efficient
  • Water usage (per wash cycle) : 3.1 gal
• Controls
  • Electronic fault/Diagnostic indicator : true
  • Smart Appliance : true
  • Spray arm sensing : true
  • Rinse aid indicator light : true
  • Energy saving delay start option of up to 12 hours : true
  • Internal wash selector : true
  • Intuitive capacitive touch controls : true
  • Keylock : true
  • Knock to pause : true
  • End of cycle beeps : true
• Features
  • Fan assisted drying : true
  • Flood protection : true
  • Flow through detergent dispenser : true
  • Internal tub material : Stainless steel
  • Quiet operation : true
  • SmartDrive™ technology : true
  • Soft close drawer : true
• Performance
  • Noise on standard cycle top drawer : 44dBA
• Power requirements
  • Amperage : 10A
  • Rated current : 15A
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
• Product dimensions
  • Depth : 22 1/2"
  • Height : 34 - 36 3/8"
  • Width : 23 9/16"
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Wash modifiers : 3
  • Dry + : true
  • Quiet : true
  • Sanitize : true
• Wash programs
  • 60 min : true
  • Eco : true
  • Medium : true
  • Heavy : true
  • Auto : true
  • Glassware : true
  • Light : true
  • Rinse : true
  • Wash programs : 8
• Water connection
  • Inlet water temperature : Max 140°F
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Water supply : 3/8" to suit Male Compression Fitting

Description

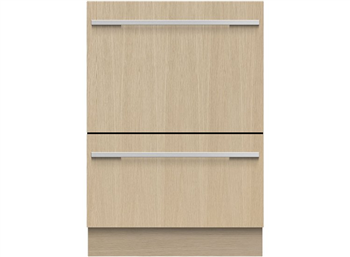

24 Inch Fully Integrated Panel Ready Smart DishDrawerâ„¢ Dishwasher

14 place setting capacity, ideal for larger households

8 wash cycles for versatile cleaning options

44 dBA silence rating for quiet operation

SmartDriveâ„¢ Technology for improved performance and efficiency

Stainless steel interior drawer for durability and easy maintenance

ENERGY STAR® rated for energy-efficient performance

Panel ready design to seamlessly blend with kitchen cabinetry

Child lock feature for added safety

Eco-friendly and cost-effective operation

Features

• Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
• DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 12 1/4 inches, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
• Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
• Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
• Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
• For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
• With a Energy Star Most Efficient rating, this DishDrawer™ Dishwasher is recognised amongst the most energy efficient models on the market.
