Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
  • Knife clip and multipurpose clip : true
• Capacity and loading
  • Adjustable height, foldable cupracks : true
  • Fold down tines : true
  • Place settings : 14
  • Place settings per drawer : 7
  • Pitch adjustable tines : true
  • Accommodates round plates up to : 12.25" (top) 11" (bottom)
• Consumption
  • Energy usage : 265kWh/year
  • Water usage (per wash cycle) : 3.44 gal running both tubs
• Controls
  • Keylock : true
  • Smart Appliance : true
  • Energy saving delay start option of up to 12 hours : true
  • Intuitive capacitive touch controls : true
• Features
  • Fan assisted drying : true
  • Flood protection : true
  • Flow through detergent dispenser : true
  • Quiet operation : true
  • SmartDrive™ technology : true
  • Motor type : BLDC
• Performance
  • Noise on standard cycle top drawer : 42dBA
• Power requirements
  • Supply voltage : 100 - 120V
  • Amperage : 10A
  • Supply frequency : 60Hz
• Product dimensions
  • Width : 23 9/16"
  • Depth : 22 9/16"
  • Height : 34 - 36 3/8"
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Dry + : true
  • Quick : true
  • Sanitize : true
  • Wash modifiers : 3
• Wash programs
  • Light : true
  • Medium : true
  • Wash programs : 7
  • Glassware : true
  • Heavy : true
  • Rinse : true
  • 60 min : true
  • Eco : true
• Water connection
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Water supply : 3/4" BSP (20mm) Connector Water Inlet Hose

Description

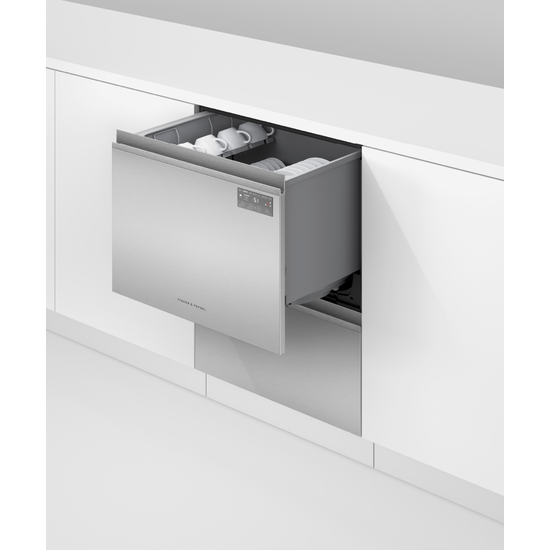

24 Inch Full Console Built-In Smart Double DishDrawerâ„¢ Dishwasher

14 place setting capacity, providing ample space for dishes

6 wash cycles and 3 wash options to suit various cleaning needs

Quiet operation at 44 dBA noise level for a peaceful environment

Flexible racking system for adjusting and fitting different sized items

Child lock for added safety

Flood protection system for enhanced security

SmartDriveâ„¢ technology for efficient and reliable performance

Features

• Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. Designed to match the Fisher & Paykel family of kitchen appliances with recessed handles for a streamlined look.
• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Dry+ setting is perfect for plastic dishes.
• Each drawer holds a true half load for small, fast washing that won't waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
• With the ability to use both drawers independently and select different wash programs, the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
• Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
• Our DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
