Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
  • Knife clip and multipurpose clip : true
• Accessories (sold separately)
  • Door panel stainless steel : ADDD24DPX
  • Handle kit Contemporary square fine, aluminium : AHD5-OBDD-60SX
  • Handle kit Contemporary square fine, black : AHD5-OBDD-60SB
  • Handle kit Professional round flush, Dark Copper off-stands : AHP3DDDW24DC
  • Handle kit Contemporary square, aluminium : AHD3-OBDD-60S
  • Handle kit Professional round flush : AHP3-DWDD-SX
  • Handle kit Classic : AHCL-DDDW-24X
  • Handle kit Contemporary round, aluminium : AHS-OBDD-60S
  • Handle kit Professional round flush, Brass off-stands : AHP3DDDW24BA
• Capacity and loading
  • Adjustable height, foldable cupracks : true
  • Fold down tines : true
  • Pitch adjustable tines : true
  • Place settings : 14
  • Accommodates round plates up to : 11" (top drawer) 11" (bottom drawer)
• Consumption
  • Water usage (per wash cycle) : 3.28 gal running both tubs
  • Energy usage : 265kWh/year
• Controls
  • Electronic fault/Diagnostic indicator : true
  • Energy saving delay start option of up to 12 hours : true
  • Keylock : true
  • Internal wash selector : true
  • Smart Appliance : true
  • End of cycle beeps : true
  • Knock to pause : true
  • Rinse aid indicator light : true
• Features
  • Flood protection : true
  • Flow through detergent dispenser : true
  • SmartDrive™ technology : true
  • Quiet operation : true
  • Fan assisted drying : true
• Performance
  • Noise on standard cycle top drawer : 43dBA
• Power requirements
  • Amperage : 10A
  • Electric circuit : 3 wire
  • Rated current : 15A
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
• Product dimensions
  • Height : 32 5/16 - 34 5/8"
  • Depth : 21 3/4"
  • Width : 23 9/16"
• Safety and compliance
  • ADA compliant : true
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Quick : true
  • Sanitize : true
  • Wash modifiers : 3
  • Extra Dry : true
• Wash programs
  • Fast : true
  • Medium : true
  • Delicate : true
  • Wash programs : 6
  • Eco : true
  • Rinse : true
  • Heavy : true
• Water connection
  • Inlet water temperature : Max 140°F
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Water supply : 3/8" to suit Male Compression Fitting

Description

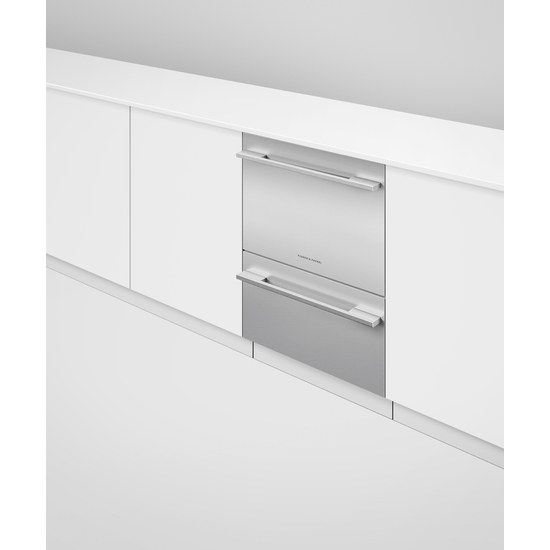

24 Inch Fully Integrated Panel Ready DishDrawerâ„¢ Dishwasher

14 Place Setting Capacity for larger dish loads

15 Wash Programs offering a range of options for all your dishwashing needs

Operates at a quiet 44 dBA noise level for a peaceful environment

Knock to Pause feature allows you to pause and resume the wash cycle with a simple knock

Keylock and Childlock provide enhanced safety during operation

46 dBA sound level for a quieter wash experience

Delay Start option allows you to set the dishwasher to run at a more convenient time

ADA Compliant design for accessibility and ease of use

ENERGY STAR® certified for energy efficiency and environmental benefits

Features

• Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.
• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
• Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
• Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
• Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
