Specifications

• Accessories (included)
  • Cutlery basket : true
  • Knife clip and multipurpose clip : true
  • Kickstrip : true
• Accessories (sold separately)
  • Handle kit Contemporary square fine, black : AHD5-OBDD-60SB
• Capacity and loading
  • Adjustable height, foldable cupracks : true
  • Fold down tines : true
  • Pitch adjustable tines : true
  • Place settings : 14
  • Accommodates round plates up to : 12.25" (top) 11" (bottom)
• Consumption
  • Energy usage : 263kWh/year
  • Water usage (per wash cycle) : 3.28 gal running both tubs
• Controls
  • End of cycle beeps : true
  • Energy saving delay start option of up to 12 hours : true
  • Internal wash selector : true
  • Keylock : true
  • Rinse aid indicator light : true
  • Smart Appliance : true
  • Electronic fault/Diagnostic indicator : true
• Features
  • Fan assisted drying : true
  • Flood protection : true
  • Flow through detergent dispenser : true
  • Quiet operation : true
  • SmartDrive™ technology : true
• Performance
  • Noise on standard cycle top drawer : 42dBA
• Power requirements
  • Amperage : 10A
  • Electric circuit : 3 wire
  • Rated current : 15A
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
• Product dimensions
  • Width : 23 9/16"
  • Depth : 22 9/16"
  • Height : 34 - 36 3/8"
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Extra Dry : true
  • Quick : true
  • Wash modifiers : 3
  • Sanitize : true
• Wash programs
  • Delicate : true
  • Eco : true
  • Fast : true
  • Heavy : true
  • Medium : true
  • Rinse : true
  • Wash programs : 6
• Water connection
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water pressure : 30kPa - 1000 kPa
  • Inlet water temperature : Max 140°F
  • Water supply : 3/8" to suit Male Compression Fitting

Description

Fan Assisted Drying: Ensures dishes come out dry and ready to use.

Quiet Operation: Operates at a low noise level of 42 dBA, so it's hardly noticeable.

Independent Wash: Allows each drawer to run a separate cycle for maximum flexibility.

Quick Wash: Fast cleaning option for lightly soiled dishes.

Extra Dry: Adds an extra drying cycle to ensure your dishes are thoroughly dry.

Sanitize Wash: Kills bacteria and ensures dishes are safe and clean.

Tall Dishes Capability: Ideal for washing large items like pots and pans.

ENERGY STAR® Certified: Eco-friendly and energy-efficient, saving you money and reducing your carbon footprint.

Stainless Steel Finish: Sleek, modern design to complement any kitchen decor.

Features

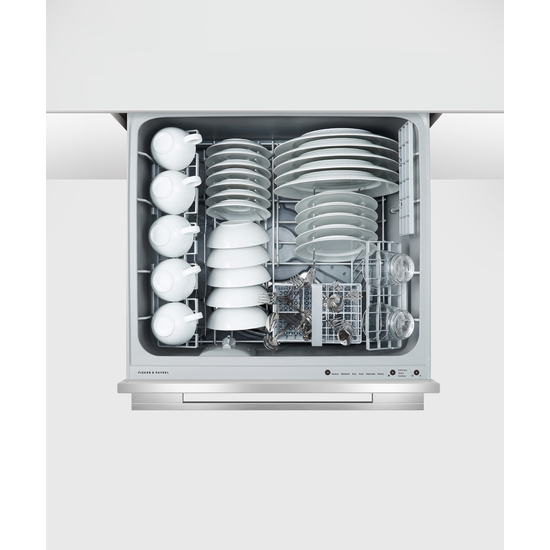

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
• Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can operate simultaneously to accommodate a variety of loads.
• DishDrawer™ Dishwashers are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials for a stylish finish in your kitchen.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
• Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
