Specifications

• Accessories (included)
  • Cutlery basket : true
  • Kickstrip : true
  • Knife clip and multipurpose clip : true
• Capacity and loading
  • Accommodates round plates up to : 12.25" (top) 11" (bottom)
  • Adjustable height, foldable cupracks : true
  • Fold down tines : true
  • Pitch adjustable tines : true
  • Place settings : 14
  • Place settings per drawer : 7
• Consumption
  • Energy usage : 282kWh/year
  • Water usage (per wash cycle) : 3.81 gal running both tubs
• Controls
  • Electronic fault/Diagnostic indicator : true
  • End of cycle beeps : true
  • Rinse aid indicator light : true
  • Smart Appliance : true
  • Energy saving delay start option of up to 12 hours : true
  • Keylock : true
• Features
  • Built-in water softener : true
  • Flow through detergent dispenser : true
  • Motor type : BLDC
  • SmartDrive™ technology : true
  • Fan assisted drying : true
  • Flood protection : true
  • Quiet operation : true
• Performance
  • Noise on standard cycle top drawer : 42dBA
• Power requirements
  • Amperage : 10A
  • Supply frequency : 60Hz
  • Supply voltage : 100 - 120V
  • Electric circuit : 3 wire
  • Rated current : 15A
• Product dimensions
  • Width : 23 9/16"
  • Depth : 22 9/16"
  • Height : 34 - 36 3/8"
• Warranty
  • Parts and labor : Limited 2 years
• Wash Program Modifiers
  • Extra Dry : true
  • Wash modifiers : 3
  • Quick : true
  • Sanitize : true
• Wash programs
  • Heavy : true
  • Medium : true
  • Rinse : true
  • Wash programs : 6
  • Eco : true
  • Fast : true
  • Delicate : true
• Water connection
  • Supplied hose to suit 3/8" (9mm) male compression fitting : true
  • Water supply : 3/8" to suit Male Compression Fitting
  • Water pressure : 100kPa - 1000kPa

Description

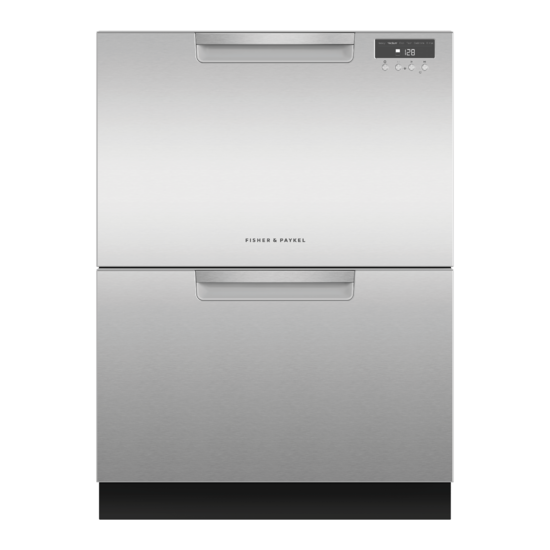

24-inch semi-integrated double DishDrawer with a 14-place setting capacity

Offers 15 wash cycles for various dishwashing needs

Includes 6 wash programs for customized cleaning

Features 3 wash modifiers for more flexibility

Operates at a quiet 44 dBA sound level

Adjustable upper rack to accommodate taller items

Sanitize option for hygienic cleaning

Sleek stainless steel finish for a modern, stylish look

Features

• DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
• With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
• The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
• Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
