Specifications

• Dimensions: 30" W x 21 1/2" D x Min: 28 3/8" - Max: 42 1/16" H
• Blower Type (internal): 600 CFM (3-speed + boost)
• Noise (sones): 6.8 sones for efficient yet quiet operation
• Finish: Stainless Steel for a sleek and modern appearance
• Controls: Multi-function electronic controls with an LCD display for user-friendly operation
• Illumination: 2 LED lights, 6.5 W, 3000 K, providing optimal brightness for the cooking area
• Grease Filter: Dishwasher-safe Stainless Steel Microhole Filters (2 for 30" & 3 for 36")
• Duct Transition: Round 6" Top Discharge for efficient ventilation
• Installation Type: Can be installed as ducted or recirculating (recirculating kit sold separately)
• Telescopic Chimney: Accommodates ceiling heights from min 7'5" to max 9'2" (ducted) and min 7'5" to max 9'5" (recirculating)
• Electrical: 120V-60 Hz, 450 W power usage
• Kits:
  • Recirculating Kit: KIT02766 (includes 6" Deflector and 2 Round Carbon Filters)
  • Long Chimney Extension: KIT02762 (extends to 8'5" - 11'3" ducted or 8'7" - 11'7" recirculating)
• Warranty: Two (2) Years Parts & In-Home Labor, with an additional One (1) Year of Parts & In-Home Labor when registered on elica.com

Description

• 3-Speed + Booster Function: Features three fan speeds and a booster mode for enhanced ventilation during high-intensity cooking.
• 600 CFM Blower: Powerful 600 CFM motor efficiently clears smoke, steam, and odors from your kitchen.
• Electronic Controls: Easy-to-use electronic controls for precise operation of fan speed and lighting.
• LED Lighting: Energy-efficient LED lights provide bright, even illumination for your cooktop.
• Dishwasher-Safe Microhole Filters: Filters are easy to clean and maintain with a dishwasher-safe microhole design, capturing grease and cooking residue effectively.

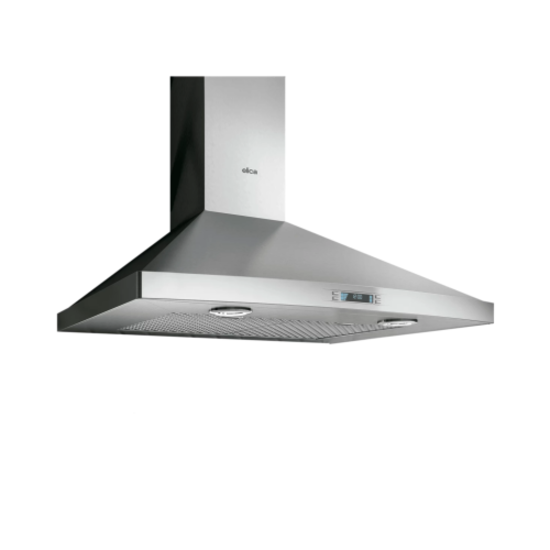

• 30-Inch Design: A sleek and modern 30-inch wall mount range hood that adds a stylish touch to your kitchen while offering high performance.

Features

• • 3-Speed + Booster: Helps effectively remove smoke, grease, and odors from the kitchen.
  • 600 CFM Blower: Provides sufficient ventilating power for most kitchens, ensuring a clean and fresh environment.
  • Electronic Controls: Multi-function electronic controls with an LCD display for convenience and enhanced safety.
  • LED Lighting: Energy-efficient LED lighting with an expected life of over 20,000 hours, ensuring long-lasting brightness throughout the hood's lifespan.
  • Dishwasher-Safe Microhole Filters: Easy to clean filters that capture grease, dirt, smoke, and other particles, keeping your kitchen free from pollutants.
  • CFM Reduction: Exclusive CFM Reduction System (CRS) allows the user to reduce blower CFM to meet local code requirements.
  • Hush System: Exclusive sound-deadening technology that reduces noise levels by up to 35% compared to typical range hoods.
  • Top Performance: High fume capturing capacity, averaging 600 CFM with low noise levels ranging from 1.2 to 1.7 sones at working speed.
  • Clean Filter Alarm: Emits a beep signal when it's time to clean the filters, with an optional light indicator to remind you until cleaning is complete.
  • Replace Filter Alarm: Emits a beep signal when it's time to replace carbon filters, with instructions on how to activate this feature.
