Specifications

• Certifications and Approvals
  • ADA Compliant : No
  • ENERGY STAR Certified : Yes
  • Meets ASSE 1006 Requirements : Yes
  • NSF Certified : Yes
  • UL Listed : Yes
  • CEE Tier : Tier 1
  • cUL Listed : Yes
• Controls
  • Control Location : Top
  • Control Lock : Yes
  • Delay Start Hours : 1-12 Hours
  • Digital Display : Yes
  • Rinse Aid Indicator : Yes
• Dimensions and Volume

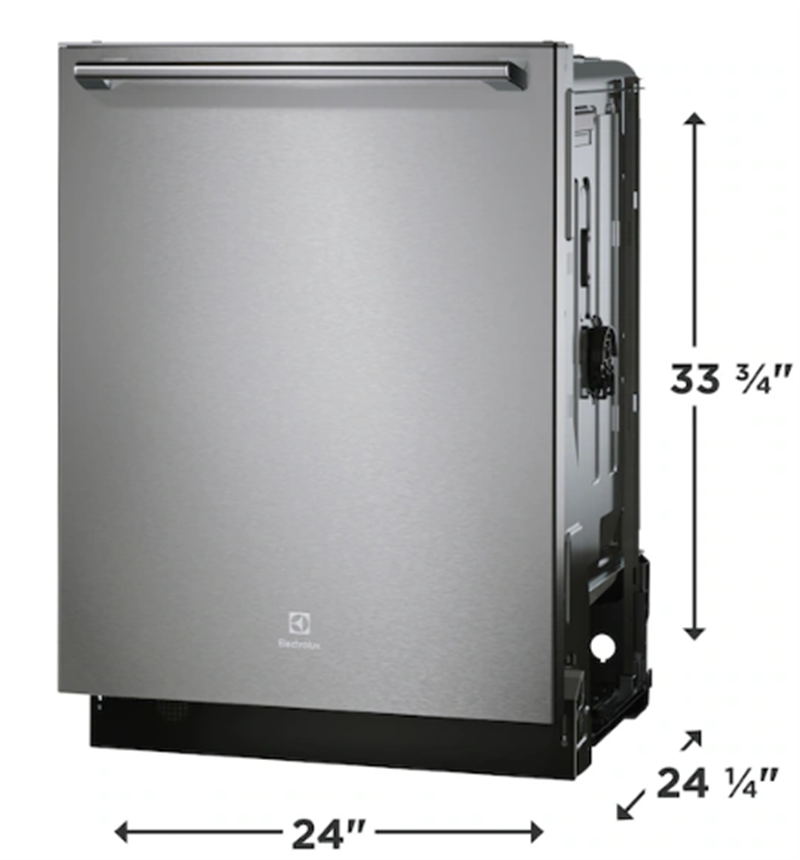

  • Minimum Height : 33 3/4"
  • Depth With Door Open : 50 1/4"
  • Depth With Handle : 26 69/100"
• Dishwasher
  • Filtered Water : 100 %
  • Interior Light : Yes
  • Leak Detection System : Yes
  • Motor Speeds : Multi-Speed
  • Place Setting Capacity : 14
  • Upper Spray Arm : Spray Arm
  • Status Indicator Floor Beam : Yes
  • Tub Color : Stainless Steel
  • Tub Material : Stainless Steel
  • Wash Levels : 5
  • Wash System : Direct Feed
  • Automatic Temperature Control : No
  • Detergent Dispenser : Yes
  • Hard Food Disposer or Filtration : Yes
  • Rinse Aid Dispenser : Yes
  • Lower Spray Arm : Orbit
  • Filter Trap : Removable
  • Filter Material : Stainless Steel
  • Smart Soil Sensor : Yes
  • Middle Spray Arm : Bi-Beam
  • Tub Design : Tall Tub
• Dishwasher Cycles
  • China Crystal : Yes
  • Energy Saver : Yes
  • Favorite : Yes
  • Rinse Only : Yes
  • Number of Cycles : 8
  • Quick : Yes
  • Sanitize : Yes
  • Normal : Yes
  • Heavy : Yes
• Dishwasher Options
  • Air Dry : Yes
  • Dry - Air : Yes
  • Dry - Heat : Yes
  • Dry - Max : Yes
  • Drying System : Perfect Dry
  • Heated Dry : Yes
  • Start/Cancel : Yes
• Electrical Specifications
  • Amps @ 120 Volts : 15 Amps
  • Voltage Rating : 120 V
• Exterior
  • Door and Handle Design : Handle
  • Door Latch : Pull
  • Door Type : StayPut
• General Specifications
  • Sound Level : 45 dBA
  • Product Weight : 86 lbs
  • Warranty - Parts : 1 Year
  • Annual Energy : 240 kWh
  • Prop 65 Label : No
  • Warranty - Labor : 1 Year
• Installation
  • Water Inlet Location : Left Bottom Front
  • Connection Location : Right Bottom
  • Number of Leveling Legs : 3
• Lower Rack
  • Maximum Height Clearance : 13 1/4"
  • Minimum Height Clearance : 11 1/4"
  • Number of Silverware Basket Lids : 2
  • Rack Coating : Nylon
  • Number of Silverware Basket : 1
  • Rack Type : Deluxe
  • Fold-Down : Yes
• Third Level Rack
  • Third Level Rack : Yes
  • Rack Coating : Nylon
• Upper Rack
  • Fold-Down : Yes
  • Rack Coating : Nylon
  • Targeted Wash Zone : Yes
  • Minimum Height Clearance : 8 1/2"
  • Rack Handles : Yes
  • Rack Type : Deluxe
  • Cup Shelf : Yes
  • Maximum Height Clearance : 10 3/8"
  • Stemware Holder : Yes

Description

Capacity: 14 place settings for larger loads

Wash Cycles: 8 wash cycles to meet diverse cleaning needs

Noise Level: 45 dBA for a quiet cleaning experience

SmartBoostâ„¢: Enhances wash performance with advanced technology

Max Dry Technology: Provides superior drying performance for dishes

30-Minute Clean Cycle: Fast and efficient cleaning for when you're in a hurry

NSF Certified: Ensures sanitary cleaning with professional-grade results

UL Listed: Meets safety standards for electrical performance

ENERGY STAR® Certified: Energy-efficient operation to save on utility bills

Features

• Our patented SmartBoost™ Clean technology effectively premixes your detergent with water before reaching your dishes, delivering powerful cleaning results and helping remove tough baked on foods
• Our most powerful drying feature with a final rinse cycle hot enough to also sanitize.
• By avoiding hand washing and putting your dishes straight in the dishwasher, not only will you get great cleaning results, you can save over 1000 gallons of water per year.
• Avoid pre-rinsing with our DishSense® sensor technology that automatically adjusts the cycle based on the soil level of your dishes.
• Completely clean dishes of all shapes and sizes like water bottles, casserole dishes wine glasses and more with our Target Wash Zones
• Our exclusive LuxCare® Wash Arm uses water more effectively to tackle even the toughest dishes without wasting valuable resources
• Flexibility to get dishes sparkling clean between courses with our 30-Minute Clean cycle
• Easily clean serving utensils and culinary tools with the seamless organization of our third-level rack
• Dish racks so smooth they extend effortlessly to help making loading and unloading easier.
• Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dish load
• Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dish load
• Make loading the dishwasher easier with adjustable racks, providing enough space to fit even your largest items.
• Sanitize option removes 99.9% of common household bacteria.
• So quiet your dishwasher won't disturb you, even if you run it while you're in the room -- runs at 45 dBA
• Illuminate the floor with a blue light when your dishes are washing and a white light when they are clean
• Maximize your energy and dollar savings with ENERGY STAR® Certified Appliances.
• Our exclusive limited warranty that includes two year coverage on parts and one year on labor
