Specifications

• Certifications and Approvals
  • RoHS : Yes
  • ADA Compliant : No
  • CSA Listed : Yes
  • Star-K Certification : Yes
  • UL Listed : Yes
• Connectivity
  • ??Wi-Fi Enabled : Yes
• Controls
  • Control Lock : Yes
  • Sabbath Mode : Yes
• Convection Cooking
  • Convection Cooking - Bake : Yes
  • Convection Element : 1650 Watts
• Cooking Controls
  • Air Fry : Yes
  • Air Sous Vide : Yes
  • Bake : Yes
  • Convection Roast : Yes
  • Dehydrate : Yes
  • Delay Clean : Yes
  • Fast Preheat : Yes
  • Kitchen Timer : Yes
  • Preheat : Yes
  • Set Clock : Yes
  • Start : Yes
  • Start Time : Yes
  • Steam Bake : Yes
  • Steam Clean : Yes
  • Broil : Yes
  • Convection Bake : Yes
  • Steam Roast : Yes
  • Stop : Yes
  • Temperature Display : Yes
  • User Preferences : Yes
  • Clock : Yes
  • Light : Yes
  • Self Clean : Yes
  • Cancel : Yes
  • Off : Yes
  • Oven Light : Yes
  • Timed Bake : Yes
  • Timer On / Off : Yes
  • Bake Time : Yes
  • Bread Proof : Yes
  • Keep Warm : Yes
  • My Favorite : Yes
  • Perfect Turkey : Yes
  • Child Lock : Yes
  • Clear Off : Yes
  • Cook Time : Yes
  • Delay Start : Yes
  • Slow Cook : Yes
  • Probe : Yes
• Cooking Controls Function
  • Change between Continuous Bake Setting or 12-Hour Energy Saving Feature : Yes
  • Delayed Bake : Yes
  • Program Fahrenheit or Celsius : Yes
  • Silent Control Panel : Yes
  • Timed Cooking : Yes

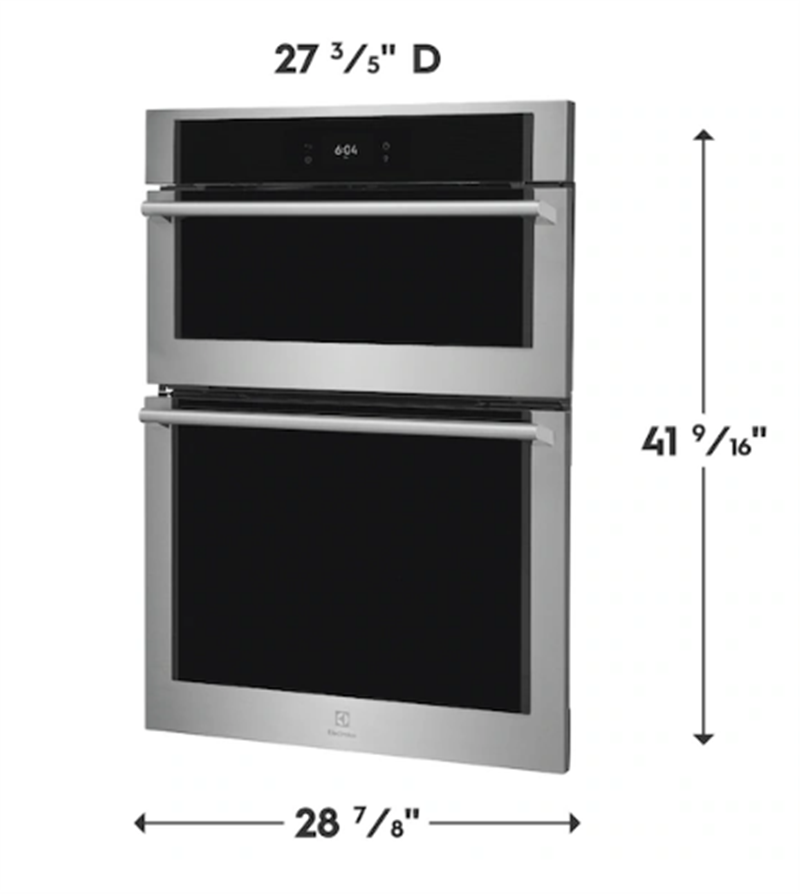

• Dimensions and Volume
  • Minimum Cutout Width : 28 1/2"
  • Maximum Cutout Height : 41 1/2"
  • Maximum Cutout Width : 29"
  • Microwave Capacity : 1.7 Cu. Ft.
  • Oven Capacity : 5.3 Cu. Ft.
  • Oven Interior Depth : 19 7/8"
  • Depth With Door 90° Open : 47 3/16"
  • Depth With Handle : 27 3/5"
  • Cutout Depth : 23 5/8"
  • Oven Interior Height : 18 1/8"
  • Oven Interior Width : 25 3/16"
  • Microwave Interior Height : 9 5/16"
  • Microwave Interior Width : 18 7/8"
  • Microwave Interior Depth : 16 1/8"
  • Minimum Cutout Height : 40 5/8"
• Display
  • Display Interface Color : White
  • Display Light Color : White
  • Display Type : Capacitive Touch
  • Control Location : Front
• Electrical Specifications
  • Amps @ 240 Volts : 40 Amps
  • Minimum Circuit Required : 40 Amps
  • Voltage Rating : 240 V
  • Connected Load @ 240V : 8.3 kW
• General Specifications
  • Product Weight : 245 lbs
  • Prop 65 Label : Yes
  • Warranty - Labor : 1 Year
  • Warranty - Parts : 1 Year
  • AB-1200 : Information available at electrolux.com/en/ab1200
• Installation
  • Power Supply Connection Location : Top Left
• Internal Specifications
  • Rack : Yes
  • Turntable Material : Glass
  • Turntable Diameter : 14"
• Microwave Control Features
  • + 30 Seconds : Yes - One Touch
• Microwave Cooking
  • Bacon : Yes
  • Beverage : Yes
  • Defrost : Yes
  • Popcorn : Yes
  • Reheat : Yes
  • Rice : Yes
  • Melt / Soften : Yes
  • Microwave Cooking Power : 1000 Watts
  • Top Grill Mode : Yes
  • Veggies : Yes
• Oven
  • Bake Element Pass : 8
  • Bake Element Type : Hidden
  • Cleaning System : Yes
  • Convection : Yes
  • Convection Type : Total
  • Number of Convection Fans : 1
  • Number of Rack Positions : 6
  • Oven Interior Color : Midnight Black
  • Oven Light Quantity : 2
  • Oven Light Type : Halogen
  • Rack Position Type : Embossed
  • Rack Type 1 : Handle Bull Nose
  • Rack Type 2 : Glide
  • Rack Type 3 : Air Fry Tray
  • Broil Element Pass : 6
  • Broil System : Yes
  • Convection Element : 3800 Watts
  • Bake Element : 2500 Watts
  • Broil Element : 4000 Watts
  • Rack Type 3 Quantity : 1
  • Oven Light Watts : 40 Watts
  • Rack Type 1 Quantity : 1
  • Rack Type 2 Quantity : 1

Description

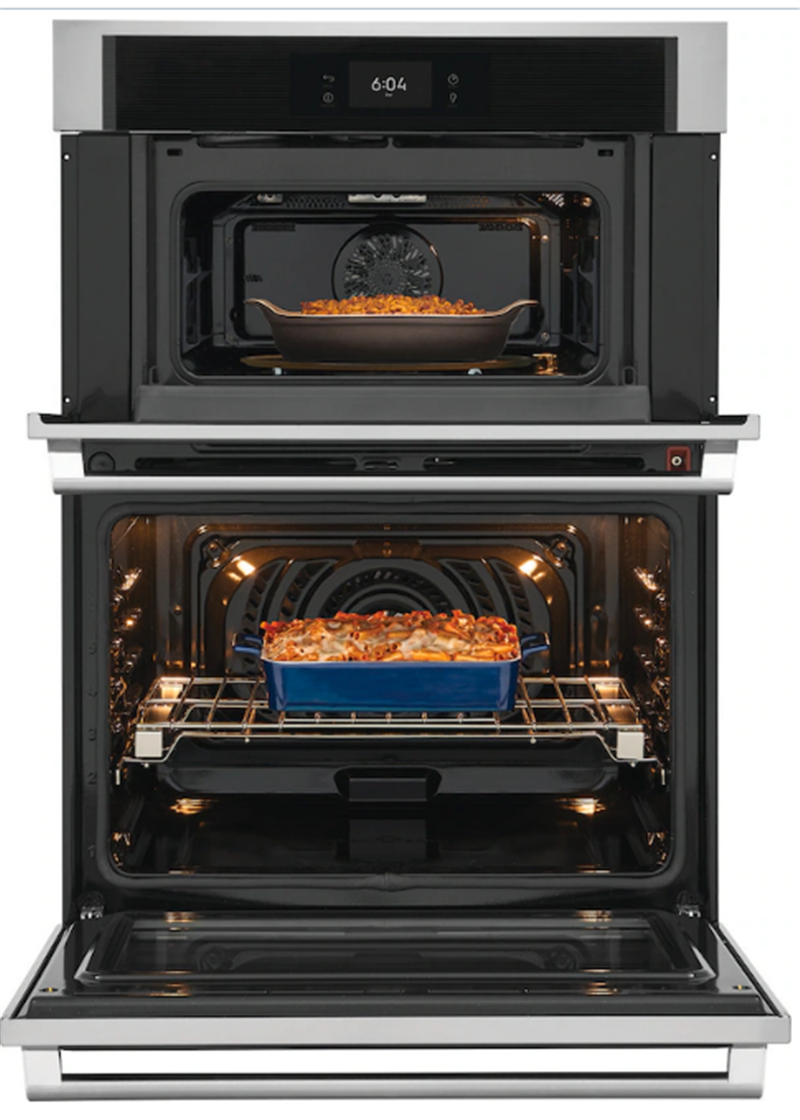

30 Inch Combination Smart Electric Wall Oven with a 5.3 Cu. Ft. convection oven and 1.7 Cu. Ft. microwave for versatile cooking options.

Advanced Convection and Microwave Convection technology for even cooking and faster results.

Air Fry and Air Sous Vide modes to prepare healthier meals with perfect crispness and flavor.

Touch controls for a user-friendly and modern interface.

Self Clean feature for easy oven maintenance with minimal effort.

Delay Bake function allows you to set cooking times in advance for greater convenience.

Sabbath Mode for religious observances, compliant with Star-K standards.

Star-K Certified to ensure kosher compliance.

Features

• Preserve natural flavors & lock in moisture with our Air Sous Vide technology that uses precisely-controlled heat and airflow to give you sous vide results without the water bath
• Enhance natural flavors - from meats to pastries and more - by creating a crisp, golden crust and a juicy, flavorful inside with the power of steam
• Cooking is more effortless with Electrolux Connect Technology, which allows you to set, preheat and monitor cook time remotely. When cook time ends, get alerts and even switch to “keep warm” mode to ensure dishes are all ready at the same time
• Create crispy vegetable chips, juicy chicken parmesan and more with just a little oil with Built-In Air Fry
• Even your most challenging recipes turn out delicious with the precisely-controlled heat and air circulation of Advanced Convection

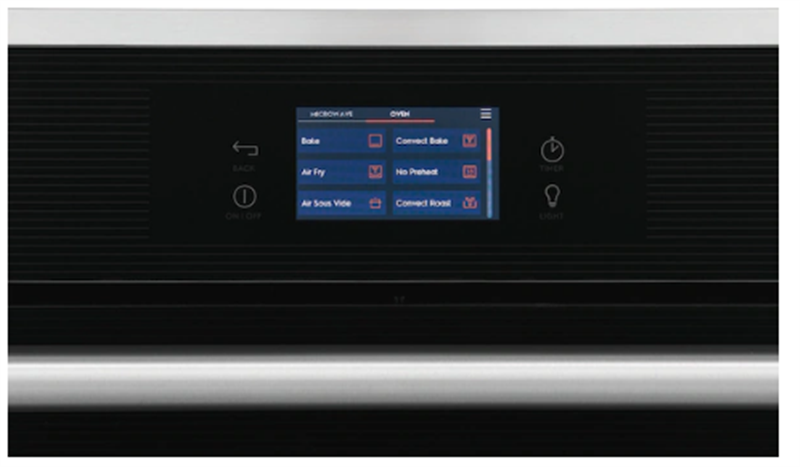

• Operate your oven with ease with our intuitive Full-Color Touch Controls
• Get your culinary delights on the table faster with No Preheat
• All your proteins cook to perfection with the Temperature Probe that prevents under- or over-cooking
• Oven racks are so smooth they extend effortlessly
• Get full visibility into the oven’s interior with our ramp-up halogen Luxury-Design® Lighting
• Get perfectly crisp tempura shrimp, samosas and more with ideal air fry results from the included air fry tray
• Keep your oven looking its best with the 30-minute Steam Clean cycle that's chemical- and odor-free
• Raise airy breads and balanced pizza dough with the gentle heat of the Bread Proof function
• Create healthy snacks with intense flavor by preserving fruits, lean meats and herbs with the Dehydrate function
• Precisely times your convection roast for turkey that is perfectly done -- crispy on the outside and juicy on the inside
• The sleek design of this microwave/wall oven combination with full color touch controls, stainless steel handles with gunmetal chrome standoffs and Electrolux signature pinstripe design looks beautiful in any kitchen
• Bake and brown your favorite foods with Convection Cooking in the microwave, the convenience of a microwave and the performance of an oven
• Making delicious meals is more effortless with Keep Warm mode which allows you to keep food warm while you finish the rest of the meal
• Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts.
