Specifications

• ACCESSORIES
  • Side by Side Install Toe-Kick Kit : 72" ZKK72R
  • Optional Kits : CXSB3H3PVBT - Brushed Black, CXSB3H3PVBZ - Brushed Bronze, CXSB3H3PVCG - Brushed Brass, CXSB3H3PVCU - Brushed Copper, CXSB3H3PVFB - Flat Black
  • Trim Kit : 36" Trim Kit for 24" deep cabinets ZKW36V, 72" Trim Kit for 24" deep cabinets ZKW72V
  • SxS Install Heater/Unification Kit : ZKMV
• APPEARANCE
  • Adjustable Rollers : 2
  • Handle Color : Brushed Stainless
  • Installation : Fully Integrated Installation
  • Color Appearance : Stainless Steel
  • Case Color : Gray
  • Door Swing : Hinges on Left
  • Coil-Free Back : Yes
  • Hidden Door Hinge(s) : Yes
  • Door Style : Solid Door
  • Door Stops : 90 Degree and 115 Degree
• CAPACITY
  • Fresh Food Capacity : 13.69 cu ft
  • Convertible Drawer Capacity : 2.91 cu ft
  • Freezer Capacity : 3.45 cu ft
  • Total Capacity (cubic feet) : 20.1 cu ft
• ECONOMICAL / QUIET
  • Quiet Package : 36 dBA
• FEATURES
  • Dispenser : Non-Dispenser
  • Product Type : Bottom Freezer Refrigerator, Built-In Refrigerator
  • Temperature Management Features : Dual Evaporator, Independent Temperature Controls
  • Control Type : Integrated, Upfront Capacitance Touch Controls
  • Icemaker : Factory-Installed
  • WiFi Connect : Built-In
  • Filter Change Indicator : Display water filter status @ 90% usage
  • Door Alarm : Yes
  • Interior Lighting : LED
  • Fresh Food Door Features : 3 Adjustable Bins, Copper Accents, Full-Width, Plastic
  • Leveling System : 4 Point (2 adjustable back rollers, 2 adjustable front legs)
  • Fresh Food Door Bins : 3 Full-Width, Adjustable
  • Fresh Food Features : Display Temp Setpoint, Door Alarm, Filter-Change Indicator, Interior Lighting - Ramp Up LED 4, Sabbath Mode Status
  • Defrost Type : Automatic Defrost
  • Number of Doors : 4
  • Sabbath Mode : Yes
  • Fresh Food Cabinet Shelves : 4 Half-Width, Copper Trim, Glass
  • Freezer Features : Freezer Drawer with Full Extension Slides, Soft-Close
  • Exterior Style : Built-In, Standard Depth
  • Bottom Drawer : One Adjustable Divider, Plastic Interior, Yes, Freezer w/IM
  • Temperature Display : Internal Digital
  • Configuration : Full Door and Double Drawer
  • Refrigerant Type : R600a
  • Fresh Food Cabinet Drawers : 2 Half-Width Adjustable Climate Zone Drawers, Copper Accents, Full-Extension Soft-Close Slides
  • Water Filtration : GE Water Filtration (XWFE Filter)
  • OU Certified : OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
  • Middle Drawer : 4 Settings (Hard Freeze [sync w/freezer], Meats, Cold Beverages, FF/Snack, Yes, Convertible; Plastic Interior
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 654
  • Volts/Hertz/Amps : 115V; 60Hz; 20A
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
• WEIGHTS & DIMENSIONS
  • Overall Height : 83.5 in
  • Overall Depth : 24.75 in
  • Net Weight : 555 lb
  • Overall Width : 35.75 in
  • Approximate Shipping Weight : 621 lb
  • Height to Top of Case : 83.6875 in
  • Height to Top of Hinge : 83.5 in

Description

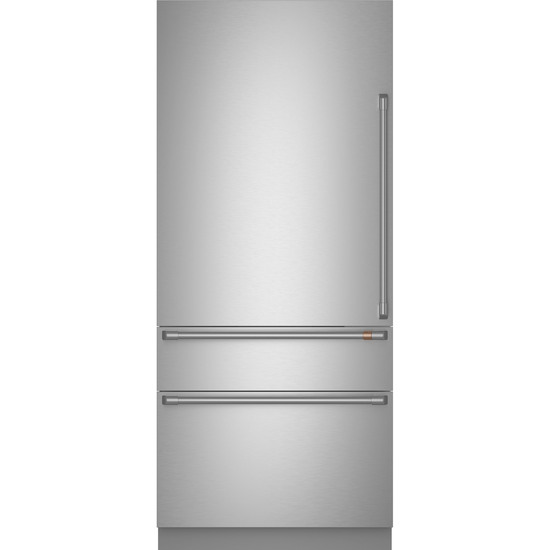

Sleek, Integrated Design: Seamlessly blends into kitchen cabinetry for a custom, built-in appearance.

Spacious Interior: Features adjustable shelves and drawers for flexible storage of fresh and frozen items.

Bottom-Freezer Layout: Offers convenient access to fresh foods in the refrigerator section while keeping frozen items organized in the lower freezer compartment.

Advanced Cooling Technology: Maintains precise temperature control and ensures optimal freshness.

Energy-Efficient: Operates with minimal power consumption while delivering reliable performance.

Quiet Operation: Designed to operate quietly, contributing to a peaceful kitchen environment.

Durable and Long-Lasting: Built for longevity, combining both style and functionality to enhance your kitchen.

Features

• Articulating Hinges + True Flush Installation : Create a seamless, integrated, appearance with a true flush inset installation and hidden articulating hinges that will blend in with surrounding cabinetry for a stylish kitchen aesthetic.
• Convertible Climate Control Drawer with 4 Temperature Settings : Experience the full flexibility of a temperature controlled drawer that offers 4 pre-set customizable options: Meat, Drinks, Snacks and a Full Freeze setting.
• Customizable Hardware Options : Curate a look that complements your style with customizable hardware options that allow you to create a one-of-a-kind refrigerator.
• Bright LED Lighting : Easily find even the smallest items thanks to flush-mounted refrigerator LED lights designed to shed crisp, even light through the interior without wasting space.
• Stylish Interior with Adjustable Door Bins : Complement your kitchen's aesthetic with a stylish refrigerator that offers sophisticated yet functional details throughout the interior.
• Advanced Temperature Control : Create the perfect environment for a variety of foods with a temperature management system that maintains consistency in each refrigerator zone and provides an accurate temperature display.
• Adjustable Glass Shelves : Adjustable glass shelves provide a sophisticated storage solution and a simple way to keep party trays and platters ready to serve.
• Automatic Icemaker : Always have plenty of filtered ice ready to serve thanks to an advanced ice filtration system designed to deliver crisp, fresh-tasting cubes in an instant.
• Advanced Water Filtration System : Enjoy water and ice from the refrigerator with total peace of mind, thanks to an advanced water filtration system that uses XWFE replacement filters to remove 98% of certain pharmaceuticals (Removes 98% of ibuprofen, atenolol, fluoxetine, progesterone and trimethoprim. These pharmaceuticals are not necessarily in all users’ water)
