Specifications

• ACCESSORIES
  • Optional Accessories : JXPROBE1 - Precision cooking probe
• APPEARANCE
  • Frameless : Yes
  • Control Knobs : Black
  • Color Appearance : Black
• FEATURES
  • Filler trim kit : JXTR32B
  • Indicator Lights : 4 Hot Surface, Setting Level Indicators, Surface Element "ON", White/Red
  • Control Location : Front Center
  • Cooktop Type : Induction
  • Cooktop Surface : Black Ceramic Glass with Beveled Edge
  • WiFi Connect : Built-In
  • Cooktop Burner Type : 4 Induction Elements
  • Melt Setting : Yes
  • Fuel Type : Electric
  • Element - Left Front : 7" 2500W
  • Element - Right Rear : 6" 1800W
  • Product Type : Cooktop
  • WiFi Enabled Features : Chef Connect with Hoods/OTRs, Interfaces with SmartHQ App, Works with HestanCue Pans, Works with Precision Cooking Probe
  • Timer : Yes
  • Cooktop Control Features : All-Off Control, Boost (All Elements), Chef Connect, Control Lock Capability, Keep-Warm Setting, Kitchen timer, LED Light level adjustment, Melt Setting, Pan Presence Sensor, Pan Size Sensor, Sound adjustment, Sync-Burners Capability
  • Element - Right Front : 11" 3700W
  • Element - Left Rear : 7" 2500W

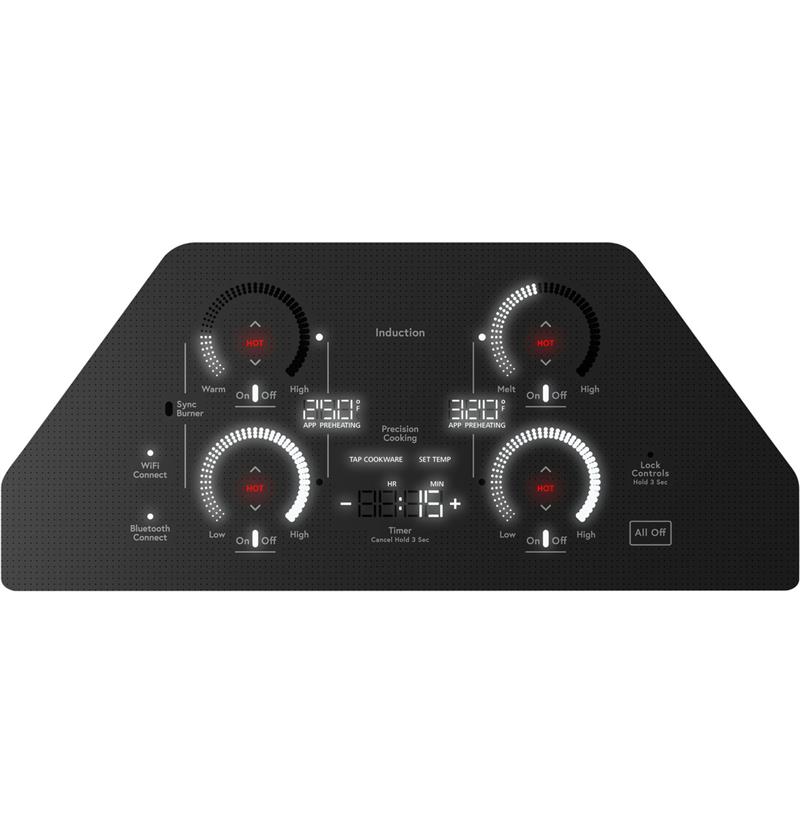

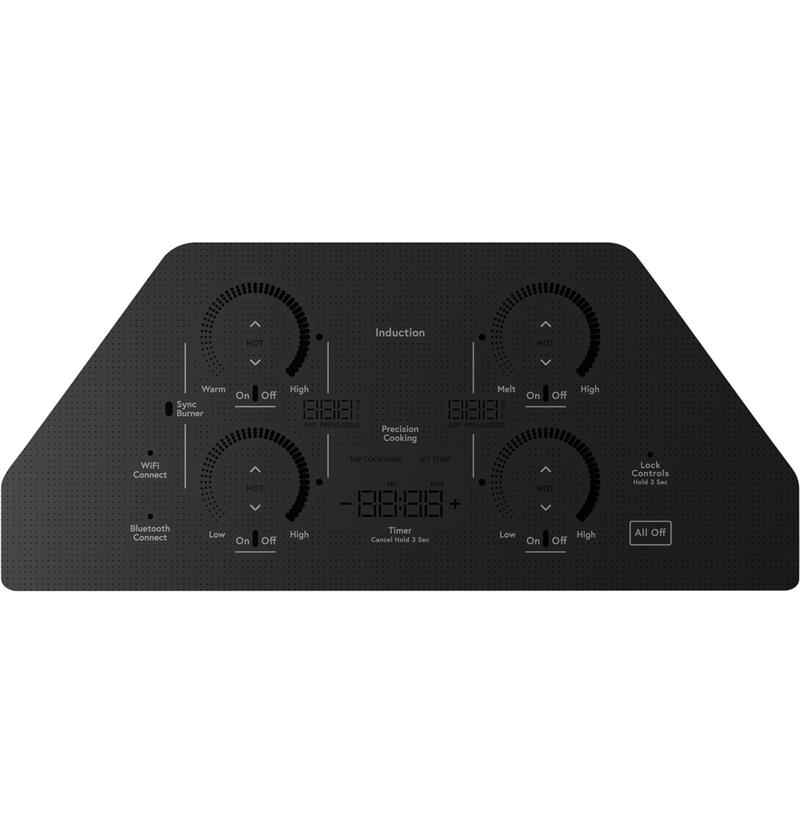

  • Control Type : Electronic, Glide Touch
• FILTER
  • App Filter - SyncBurners : Yes
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Cooktop Type : Induction
  • App Filter - Multi-Element Timers : Yes
  • App Filter - Control Type : Glide touch
  • App Filter - Fuel Type : Electric
• POWER / RATINGS
  • Circuit Breaker (Amps) at 208V : 40
  • KW Rating at 208V : 6.9
  • Max. Current Draw (Amps) at 240V : 32.1
  • Max. Current Draw (Amps) at 208V : 33.2
  • Circuit Breaker (Amps) at 240V : 40
  • KW Rating at 240V : 7.7
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Width : 29.875 in
  • Cooktop Size : 30 in
  • Overall Height : 3.25 in
  • Cabinet Width : 30 in
  • Overall Depth : 21.5 in
  • Cutout Depth (in) : 19 5/8 in
  • Approximate Shipping Weight : 48 lb
  • Net Weight : 42 lb
  • Cutout Width (in) : 28-1/2

Description

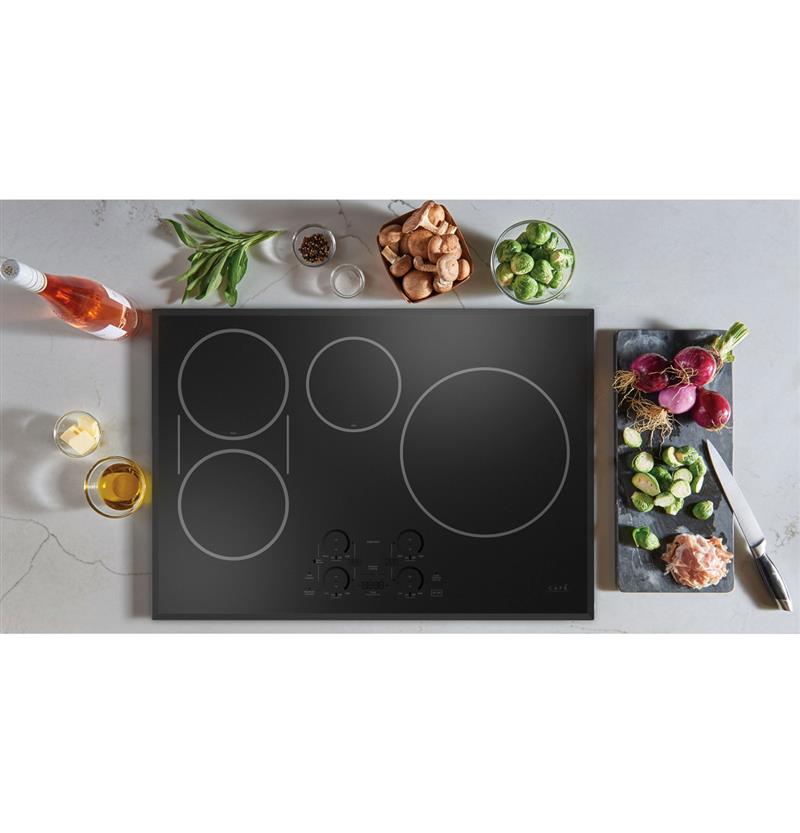

30-Inch Induction Smart Cooktop: A spacious cooktop with four powerful induction elements.

Smooth Glass Surface: Easy to clean and enhances the modern look of your kitchen.

SyncBurners: Allows you to pair two burners for larger cookware, ideal for grilling or large pots.

Wi-Fi Connectivity: Remotely control and monitor the cooktop using a smartphone or smart device.

Guided Cooking: Provides step-by-step instructions to help you cook with precision.

Precision Temperature Control: Ensures consistent cooking results with exact temperature adjustments.

Rapid Boil: Heats up quickly to save time, bringing liquids to a boil in no time.

Touch Control: Simple and intuitive operation with a responsive touch interface.

Timer: Set a timer for each cooking zone to keep track of cooking times.

Control Lock: Prevents accidental changes to settings, providing peace of mind.

All-Off Feature: Automatically shuts off all burners for added safety.

Pan Presence/Size Sensor: Detects the presence and size of cookware to ensure efficient heating.

Hot Surface Indicator: Alerts you when the cooktop surface is still hot, preventing burns.

ADA Compliant: Designed to be accessible and usable for individuals with disabilities.

Features

• Effortless Control and Responsiveness : 19 different heat settings and controls illuminated with white LED lights use induction technology to ensure burners quickly adjust and respond.
• Easy Clean Surface : A smooth glass surface with glide touch controls and induction technology that ensures spills won’t burn makes this an easy clean cooktop
• Guided Cooking : Follow along a video-guided recipe and your burners will automatically adjust time and temperature using a smart pan. Experience the joy of a perfectly cooked meal, from scallops to scrambles. Pan sold separately.
• Rapid Boil : Boil water faster thanks to induction elements that immediately heat your pan, not the cooktop surface.
• Precision Temperature Control : Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.
• Smart Cookware Rebate : Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan
• Safer Surface : Stay free from worry with this induction cooktop that automatically detects your cookware, so when it's removed the burner automatically switches off
• Most Efficient Heating : Energy flows directly to your pan instead of the cooktop surface and surrounding areas, allowing for the most efficient heat available.
• Synchronized Elements : Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
• Chef Connect : Synchronize your cooktop and Café over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect
• Timer : Help coordinate meal preparation and cooking with a convenient kitchen timer.
• Built-in WiFi : This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.
• Fit Guarantee : This cooktop will fit your existing 30" cut-out or Café will help pay for modifications up to $100.
