Specifications

• ACCESSORIES
  • High Altitude Kit : Natural Gas: WB28X39728; LP: WB28X39729
  • Conversion Kit : Included - Nat. Gas to LP
  • Factory-installed island backguard : Yes
  • Optional Kits : CXPR8HKPTBT Brushed Black, CXPR8HKPTBZ Brushed Bronze, CXPR8HKPTCG Brushed Brass, CXPR8HKPTCU Brushed Copper, CXPR8HKPTFB Flat Black, CXPR8HKPTSS Brushed Stainless
  • Optional Backguard : 12" stainless steel backsplash (UX12BS48PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
  • Griddle Cover : WB34X39889
• APPEARANCE
  • Design Style : Professional
  • Color Appearance : Stainless Steel
  • Control Knobs : Dishwasher Safe, Professional-Style, Stainless Steel Appearance
• FEATURES
  • Dishwasher Safe Knobs : Yes
  • Valves (Degree of Turn) : 270
  • Burner - Right Rear : 18,000 BTU
  • Burner - Right Front : 10,000 BTU
  • Control Location : Upfront
  • Cooktop Type : Continuous Grates
  • Ignition System : Electronic w/Auto Reignition
  • Burner - Center : 12,000 BTU Front / 12,000 BTU Rear
  • Cooktop Surface : Gray, Porcelain-Enamel
  • Extra Low Simmer : All Burners - Adjustable
  • Cooktop Burner Grate Material : Heavy Cast
  • Griddle Indicator : Yes
  • Griddle : 18,000-BTU, Stainless Steel and Aluminum Clad, Thermostatically Controlled
  • 140 Deg. Simmer Burner : All Burners - Adjustable
  • Product Type : Rangetop
  • Fuel Type : Natural Gas (factory set)
  • Burner - Left Rear : 18,000 BTU
  • Automatic Re-Ignition : Yes
  • Control Type : Manual, Simmer (1-9) Hi
  • Cooktop Burner Grate Features : Continuous Grates, Dishwasher Safe, Matte Black, Porcelainized Cast Iron
  • Configuration : 6 Burners
  • Burner - Left Front : 21,000 BTU Multi-ring Burner
• FILTER
  • App Filter - Cabinet Width : Cooking 48 in.
  • App Filter - Fuel Type : Gas
  • App Filter - Control Type : Rotary knobs
• POWER / RATINGS
  • Burner BTU Ratings (000's/BTU) - LP Gas : (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1
  • Griddle BTU Rating (000's/BTU) - LP Gas : 16.0
  • Griddle BTU Rating (000's/BTU) - Natural Gas : 18.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Burner BTU Ratings (000's/BTU) - Natural Gas : (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Height : 8.5 in
  • Cabinet Width : 48 in
  • Approximate Shipping Weight : 227 lb
  • Overall Width : 47.875 in
  • Net Weight : 171 lb
  • Overall Depth : 27.5 in

Description

• Burners:
  • 6 sealed burners for precise heat control and durability.
  • Two griddle burners designed for even heating across flat cooking surfaces.
  • Tri-Ring Burner for even heat distribution, perfect for large pots and stir-frying.
• Griddle:
  • Built-in griddle with a thermostat for consistent cooking temperatures, ideal for pancakes, sandwiches, and more.
• Wok Cooking:
  • Inspiralâ„¢ Wok Grate provides optimal heat distribution for wok cooking.
• Grates:
  • Continuous grates for easy movement of cookware across the rangetop.
• Certification & Compliance:
  • CSA certified for safety and reliability.
  • ADA compliant, ensuring accessibility for all users.
• Finish:
  • Elegant matte Stainless steel finish enhances the professional look of your kitchen.

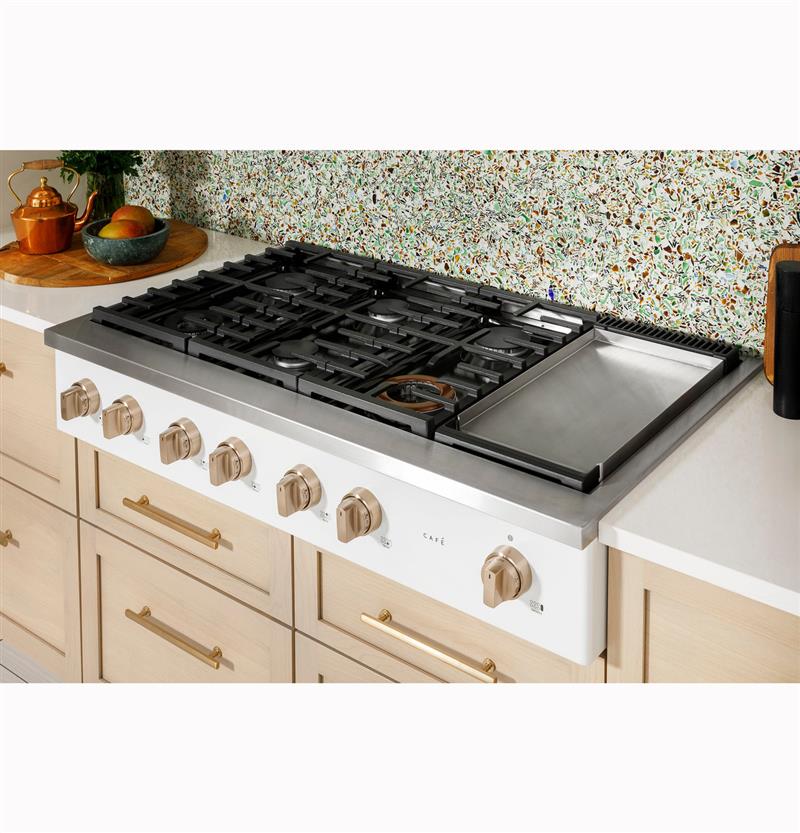

This 48-inch commercial-style gas rangetop in matte white is built for power, precision, and versatility, offering a range of features ideal for professional cooking and home chefs alike.

Features

• Versatile Cooktop : The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
• Color-Matched Manifold : Get a coordinated look with a manifold that matches the rangetop's finish
• Superior Heat Distribution : The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
• Multi-Ring Burner : A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
• Two Griddle Burners : Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory
• Two High-Heat Burners : Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power
• Inspiral™ Wok Grate : Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
• Built-in Griddle with Thermostat : An 18,000-BTU, Stainless Steel and Aluminum clad griddle features an integrated thermostat, which automatically adjusts heat to hold your set temperature
• Reversible Stove Top Grill/Griddle Accessory : Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.
• Sealed Burner Cooktop : Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.
• Continuous Gas Stove Grates : Continuous, cast-iron gas stove grates allow you to easily move heavy cookware across the cooktop surface for a more streamlined cooking experience
• Electric Ignition Stove with Automatic Reignition : Confidently cook over a steady gas flame with this electric ignition stove, its automatic reignition feature instantly revives any accidentally extinguished flames
