Specifications

• ACCESSORIES
  • High Altitude Kit : Natural Gas: WB28X39728; LP: WB28X39729
  • Conversion Kit : Included - Nat. Gas to LP
  • Factory-installed island backguard : Yes
  • Optional Kits : CXPR6HKPTBT Brushed Black, CXPR6HKPTBZ Brushed Bronze, CXPR6HKPTCG Brushed Brass, CXPR6HKPTCU Brushed Copper, CXPR6HKPTFB Flat Black, CXPR6HKPTSS Brushed Stainless
  • Griddle Cover : WB34X39889
  • Reversible Griddle/Grill Accessory : UXPRRGG
  • Optional Backguard : 12" stainless steel backsplash (UX12B36PSS), 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
• APPEARANCE
  • Design Style : Professional
  • Color Appearance : Stainless Steel

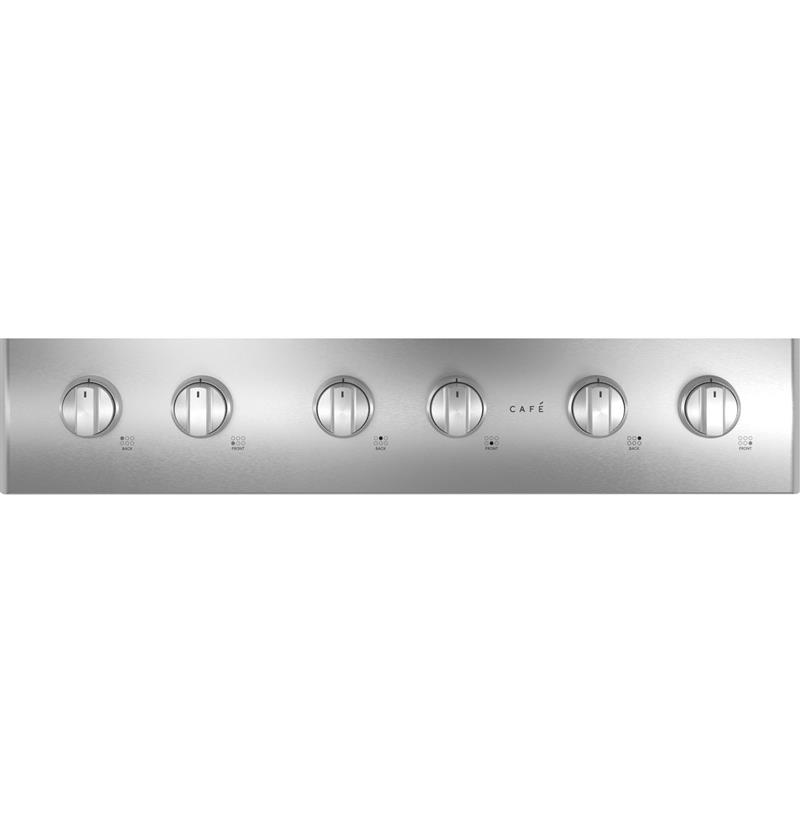

  • Control Knobs : Brushed Stainless, Dishwasher Safe, Professional-Style
• FEATURES
  • Dishwasher Safe Knobs : Yes
  • Valves (Degree of Turn) : 270
  • Burner - Right Rear : 18,000 BTU
  • Ignition System : Electronic w/Auto Reignition
  • Burner - Center : 12,000 BTU Front / 12,000 BTU Rear
  • Burner - Right Front : 10,000 BTU
  • Fuel Type : Natural Gas (factory set)
  • Control Location : Upfront

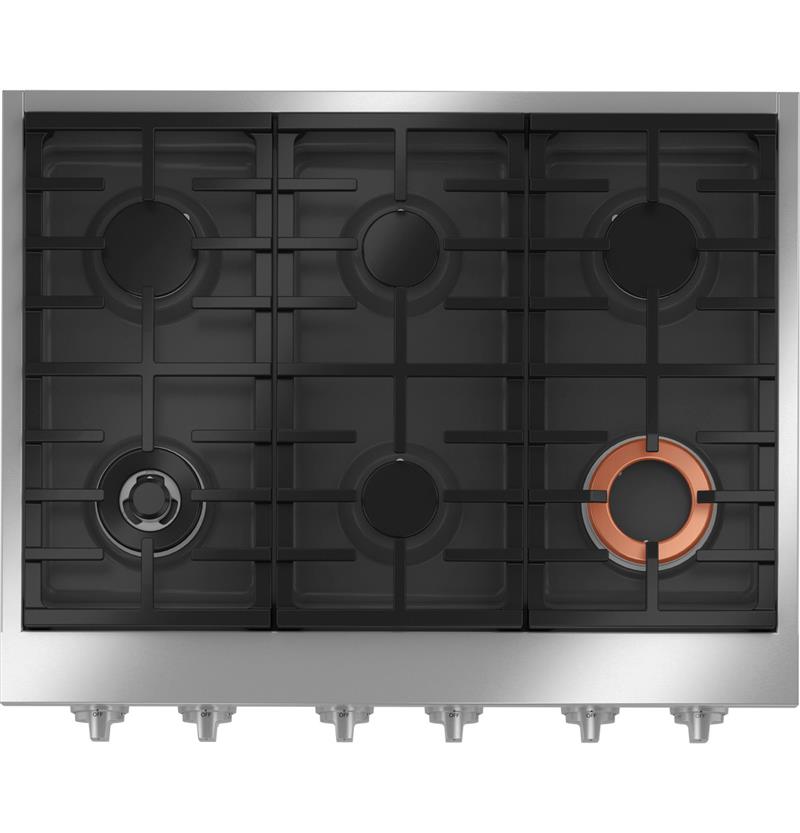

  • Cooktop Type : Continuous Grates
  • Cooktop Surface : Gray, Porcelain-Enamel
  • Extra Low Simmer : All Burners - Adjustable
  • Automatic Re-Ignition : Yes
  • Cooktop Burner Grate Material : Heavy Cast
  • Cooktop Burner Grate Features : Continuous Grates, Dishwasher Safe, Matte Black, Porcelainized Cast Iron
  • 140 Deg. Simmer Burner : All Burners - Adjustable
  • Configuration : 6 Burners
  • Product Type : Rangetop
  • Burner - Left Rear : 18,000 BTU
  • Control Type : Manual, Simmer (1-9) Hi
  • Burner - Left Front : 21,000 BTU Multi-ring Burner
• FILTER
  • App Filter - Cabinet Width : Cooking 36 in.
  • App Filter - Reversible Grates : Yes
  • App Filter - Cooktop Type : Continuous Grates
  • App Filter - Fuel Type : Gas
  • App Filter - Control Type : Rotary knobs
• POWER / RATINGS
  • Burner BTU Ratings (000's/BTU) - LP Gas : (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1
  • Burner BTU Ratings (000's/BTU) - Natural Gas : (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Height : 8.5 in
  • Cabinet Width : 36 in
  • Approximate Shipping Weight : 163 lb
  • Overall Width : 35.875 in
  • Overall Depth : 27.5 in
  • Net Weight : 135 lb

Description

• Burners:
  • 6 sealed burners for precise heat control and durability.
  • Includes 2 high-heat burners for rapid cooking and boiling.
  • Features 2 griddle burners for cooking pancakes, eggs, and other flat-top dishes.
  • Tri-Ring Burner provides even heat distribution for large pots or stir-frying.
• Wok Cooking:
  • Inspiralâ„¢ Wok Grate for optimal wok cooking and heat distribution.
• Grates:
  • Continuous grates allow for easy movement of cookware across the rangetop.
• Certification & Compliance:
  • CSA certified for safety and reliability.
  • ADA compliant for accessibility and ease of use.
• Finish:
  • Matte Stainless steel finish for a sleek and modern appearance.

This 36-inch commercial-style gas rangetop in matte white combines professional-grade performance with innovative features, making it ideal for home chefs and culinary enthusiasts.

Features

• Versatile Cooktop : The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
• Color-Matched Manifold : Get a coordinated look with a manifold that matches the rangetop's finish
• Superior Heat Distribution : The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
• Multi-Ring Burner : A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
• Two Griddle Burners : Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory
• Two High-Heat Burners : Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power
• Inspiral™ Wok Grate : Perfect for specialty cookware like woks, the Inspiral grate is contoured to fit their shape, concentrating the Inspiral burner's heat for better cooking results.
• Reversible Stove Top Grill/Griddle Accessory : Optional, reversible stove top grill/griddle is available for purchase at an additional cost, the part number is UXPRRGG.
• Sealed Burner Cooktop : Keep your kitchen sparkling, even when there's a spill, with a sealed burner cooktop design that contains messes for easy cleanup, every time.
• Continuous Gas Stove Grates : Continuous, cast-iron gas stove grates allow you to easily move heavy cookware across the cooktop surface for a more streamlined cooking experience
• Electric Ignition Stove with Automatic Reignition : Confidently cook over a steady gas flame with this electric ignition stove, its automatic reignition feature instantly revives any accidentally extinguished flames
