Specifications

• ACCESSORIES
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Kits : CXFCGHKPMBT Brushed Black, CXFCGHKPMBZ Brushed Bronze, CXFCGHKPMCG Brushed Brass, CXFCGHKPMCU Brushed Copper, CXFCGHKPMFB Flat Black, CXFCGHKPMSS Brushed Stainless
  • Grates : Included Center Grate
  • Trim Kit : JXFILLR1DD, Optional
  • LP Conversion Kit : Included
• APPEARANCE
  • Control Knobs : Stainless Steel Appearance
  • Cooktop Burner Grate Color : Matte Black
  • Textured Steel Side Panels : Yes
  • Handle Design : Café
  • Handle : Consumer Removable, Customizable, Professional Style
  • Oven Door Features : Big Clear View Oven Window, Matte Black Frameless Oven Door
  • Handle Color : Brushed Stainless
  • Color Appearance : Matte Black
  • Installation : Flush Appearance, Free-standing cut-out
• CAPACITY
  • Total Capacity (cubic feet) : 5.6 cu ft
• FEATURES
  • Cleaning Time : Variable with Delay Clean Option
  • Ignition System : Electronic
  • Oven Interior : 1 Oven Interior Light, Black
  • WiFi Connect : Built-In
  • Cooking System : True Convection
  • Burner - Right Rear : 12,000 BTU
  • Burner - Left Rear : 5,000 BTU Precise Simmer
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Product Type : Slide-In Single Oven
  • Cooktop Type : Standard Grates
  • Fuel Type : Natural Gas (factory set)
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Self Clean, Automatic Oven Timer (Time Bake), Certified Sabbath Mode, Chef Connect, Control Lock Capability, Delay Bake Option (Time Bake), Delay Clean Option, Digipad Numeric Entry, Electronic Clock and Timer, Front Controls, In-Oven Broiling, Self-Clean Cool Down Time Display, Temperature Probe
  • Burner - Left Front : 21,000 BTU Tri-ring Burner
  • Oven Rack Features : 3 Self-Clean Flat Oven Racks
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • Griddle : Included, Integrated Cast Iron
  • Cooktop Burner Grate Material : Cast-Iron
  • Burner - Center : 9,500 BTU Front / 9,500 BTU Rear
  • Style : Commercial
  • Control Location : Front controls
  • Dishwasher Safe Knobs : Yes
  • Control Type : Backlit, Glass Touch
  • Drawer Type : Storage
  • Sabbath Mode : Yes
  • Leveling System : 4 Leveling Legs
  • Cooktop Burner Grate Features : Heavy-Cast Edge-to-Edge Grates
  • Cooking Technology : Convection
  • Configuration : Range with Storage Drawer
  • OU Certified : No
  • Oven Cooking Modes : Baked Goods, Convection Bake, Convection Roast, Frozen Pizza Multi Rack, Frozen Pizza Single Rack (No Preheat), Frozen Snacks Multi Rack, Frozen Snacks Single Rack (No Preheat), No Preheat Air Fry, Proof, Warming
  • Valves (Degree of Turn) : 270
  • Cooktop Surface : Deep Recessed, Gray, Porcelain-Enamel
  • Oven Rack Positions (Single or Upper/Lower) : 6
  • Self-Clean Oven Door Lock : Automatic
  • Grill : Integrated Cast Iron, JXCGRILL1, Optional
  • Cooktop Burner Type : Sealed
  • Burner - Right Front : 15,000 BTU
• FILTER
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Product Type : Ranges Slide-In Single Oven
  • App Filter - Cooking Technology : Convection
  • App Filter - Edge-to-Edge Cooktop : Yes
  • App Filter - Fuel Type : Gas
  • App Filter - Convection : Yes
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Drawer Type : Storage
  • App Filter - Cleaning Type : Self-Clean
  • App Filter - WiFi Connect : Built-In
  • App Filter - Cooktop Type : Standard Grates
• POWER / RATINGS
  • Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 13.5 Broiler
  • Volts/Hertz/Amps : 120v; 60Hz; 15A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0;
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 Tri-Ring; (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0
  • Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 16.5 Broiler
  • Convection Wattage : 1200W
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Net Weight : 224 lb
  • Height to Cooking Surface (in.) : 36 1/4 +/- 1/4
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 291 lb
  • Depth Without Handle : 26.875 in
  • Height to Top of Rear Vent Trim : 37.375 in
  • Overall Height : 37.375 in
  • Overall Width : 29.875 in
  • Overall Depth : 29.5 in
  • Depth with Door Open : 47.5 in
  • Oven Interior Dimensions (W x H x D) (in.) : 24 x 19-1/2 x 20-5/8

Description

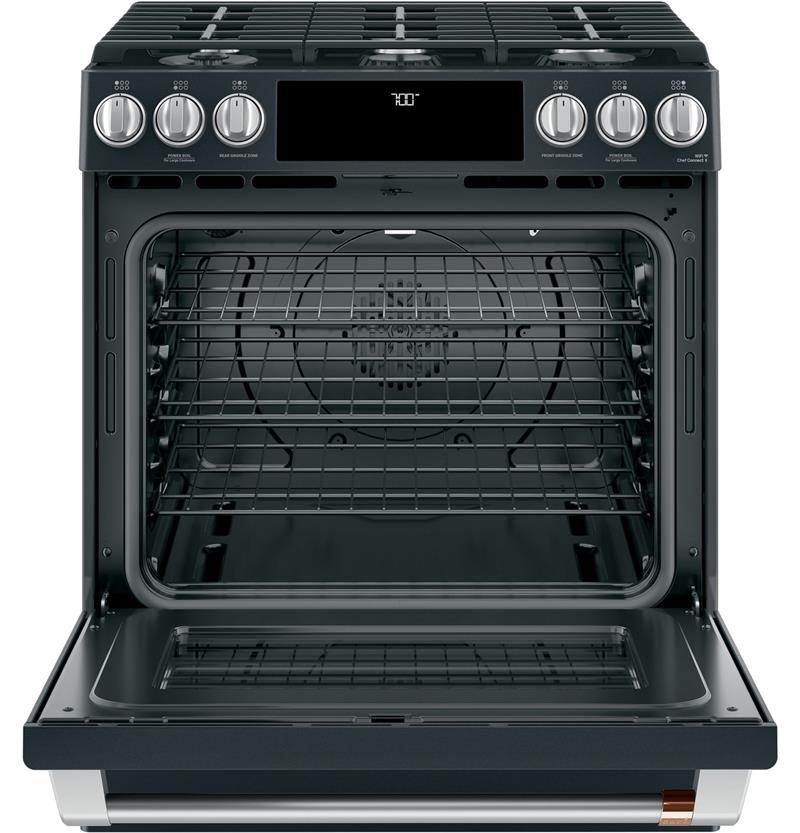

• Product Name: 30-Inch Slide-In Gas Smart Range
• Finish: Matte Black
• Burners:
  • Six sealed burners, including a powerful 21K triple-ring burner for versatile cooking.
• Oven Capacity:
  • Spacious 5.6 cu. ft. oven, perfect for large dishes and multi-rack baking.
• Convenience Features:
  • Built-in storage drawer for easy access to cookware.
  • Continuous grates for smooth movement of pots and pans across burners.
  • Chef Connect technology for enhanced smart appliance connectivity.
• Cleaning Options:
  • Self-clean and steam clean modes for effortless oven maintenance.
• Enhanced Shabbos Mode:
  • Designed to meet specific observance requirements.
• Certifications:
  • CSA and ADA compliant for safety, reliability, and accessibility.

A sleek and innovative choice for modern kitchens, combining style and performance.

Features

• Built-In WiFi, Powered by SmartHQ App : Manage all aspects of your kitchen with the help of the SmartHQ™ App or your voice assistant (Select features require WiFi Connection) See details
• Personalized Features + Upgrades : Usher in the latest features by downloading cooking upgrades right to your oven, putting Air Fry and more in your repertoire
• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray (WiFi Enabled)
• Expansive six-burner cooktop helps you entertain with ease : Entertaining for large groups is easy with the industry's first six burner, edge-to-edge cooktop that can accommodate cookware of all sizes and a cast-iron integrated griddle that provides enough room to perfectly flip crab cakes, arepas and other crowd favorites
• Share favorite creations with your favorite people : Create an unforgettable dinner, using a 21K triple ring burner to do everything from searing scallops to simmering a lemon caper white wine sauce and a 15K power boil burner to boil water quickly for al dente angel hair pasta
• The perfect bake is now perfectly easy : Achieve unrivaled performance with a system that delivers true convection for consistent results on special occasion favorites like roasts, chicken, turkey and more
• Prepare foods to perfect doneness : Get roasts and meats just right with a temperature probe that lets you monitor progress without opening the oven door
• An attractive appearance at all times : Every detail of your kitchen is designed to delight, thanks to a sleek LED control panel that visually disappears when not in use and wakes up when prompted. Plus, backlit knobs bring an extra sparkle to the kitchen
• Create a look that matches your personal style : Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste
• Durable racks that make cleaning easy : Easily remove everything from heavy roasts to delicate desserts with self- clean racks that stay in the oven during the self-clean cycle
• Allow your appliances to interact with one another : Create a chef-like experience with Chef Connect, which can synchronize your appliance clocks and surface lights and vent when a range burner is in use, and even your microwave and range clocks
• Choose the range you want with total confidence : When you’re updating your kitchen, attention to detail is a priority. That’s why Café 30” slide-in ranges are guaranteed for an exact fit or Café Appliances will pay up to $300 toward modifications.
