Specifications

• ACCESSORIES
  • LP Conversion Kit : Included
  • Optional Kits : CXCG1K0PMBT Brushed Black, CXCG1K0PMBZ Brushed Bronze, CXCG1K0PMCG Brushed Brass, CXCG1K0PMCU Brushed Copper, CXCG1K0PMFB Flat Black, CXCG1K0PMSS Brushed Stainless
  • Stainless Steel Cleaner : Included
• APPEARANCE
  • Installation : Above Warming Drawer, Over Single Wall Oven (except Single-Double)
  • Control Knobs : Dishwasher Safe, Stainless Steel Appearance, White LED Backlit
  • Cooktop Burner Grate Color : Matte Black
  • Color Appearance : Stainless Steel
• FEATURES
  • Cooktop Burner Grate Features : Continuous Grates, Dishwasher Safe, Edge-to-Edge Grates, Self-Clean
  • Griddle : JXGRIDL230, Optional
  • Burner - Left Front : 9,500 BTU
  • Valves (Degree of Turn) : 270
  • Burner - Right Rear : 5,000 BTU
  • Burner - Right Front : 12,000 BTU
  • Fuel Type : Natural Gas (factory set)
  • Cooktop Type : Continuous Grates
  • Burner - Center : 18,000 BTU
  • Cooktop Surface : Deep Stainless Steel
  • Burner - Left Rear : 9,500 BTU
  • Control Type : Knob
  • Control Location : Front Center
  • Product Type : Cooktop
  • Cooktop Burner Type : 5 Sealed
  • Ignition System : Electronic
  • Cooktop Burner Grate Material : Porcelain
• FILTER
  • App Filter - Control Type : Rotary knobs
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - Cooktop Type : Continuous Grates with Griddle
  • App Filter - Tri-Ring Burner : Yes
  • App Filter - Fuel Type : Gas
• POWER / RATINGS
  • Burner BTU Ratings (000's/BTU) - LP Gas : (1) 18.0; (1) 12.0; (2) 9.5; (1) 5.0
  • Volts/Hertz/Amps : 120V; 60Hz; 5A
  • Burner BTU Ratings (000's/BTU) - Natural Gas : (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Width : 30 in
  • Overall Depth : 21 in
  • Cabinet Width : 30 in
  • Approximate Shipping Weight : 50 lb
  • Net Weight : 44 lb
  • Cutout Depth (in) : 19 5/8 in
  • Cutout Width (in) : 28-1/2
  • Overall Height : 5.5 in

Description

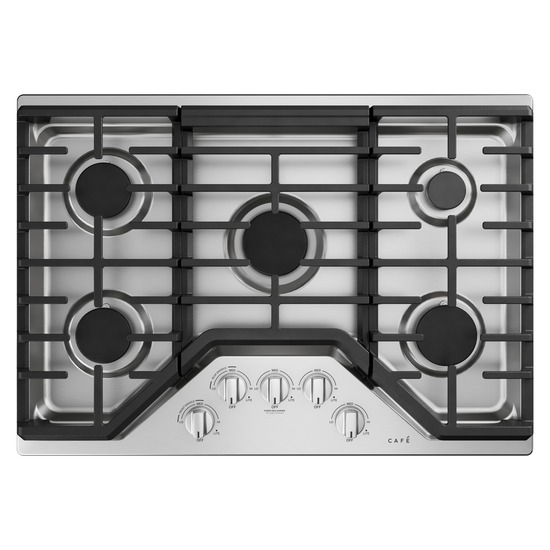

30 Inch Gas Cooktop with 5 sealed cooktop burners for versatile cooking options

18,000 BTU center burner for powerful heat and fast cooking

Dishwasher-safe continuous grates for easy cleaning

Self-clean function for added convenience

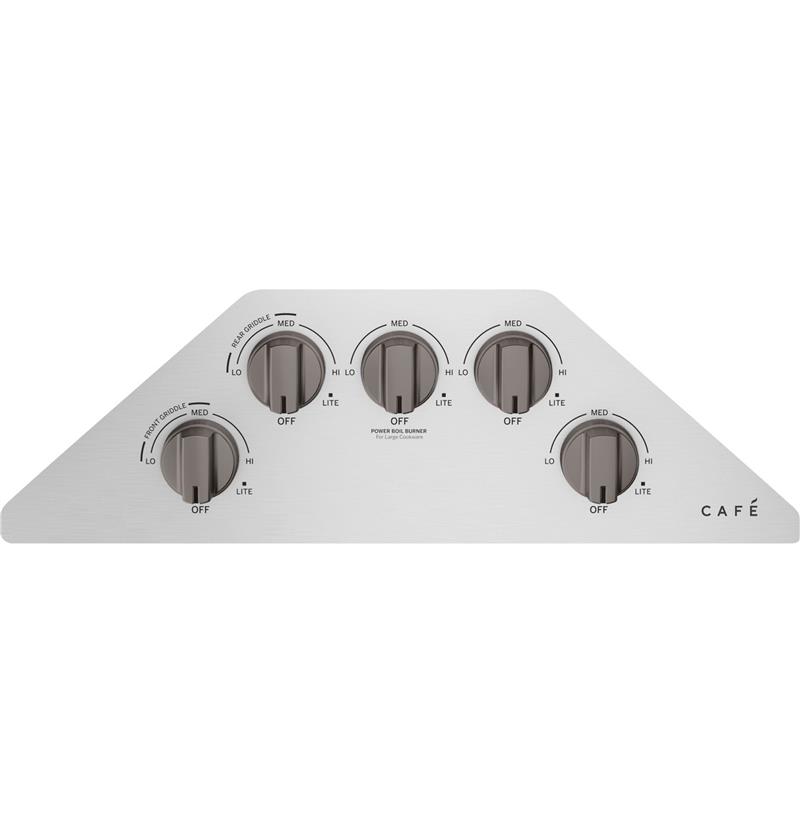

LED backlit heavy-duty knobs for a modern, user-friendly experience

ADA compliant, ensuring accessibility for all users

Features

• Versatile burner complements every cooking style : Sear, fry and sauté on a 18,000 BTU burner
• More cooking with less cookware : Get the most from your cooktop and eliminate the need for extra cookware with an extra-large, integrated cooktop griddle as an optional accessory

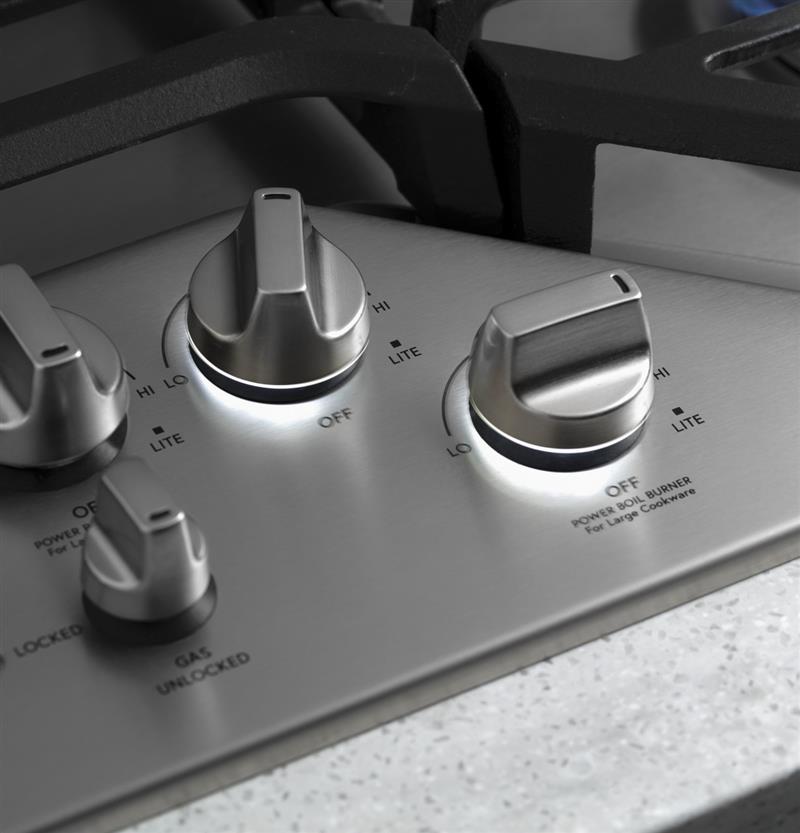

• Lights that do more than shine : Enjoy peace of mind with a touch of style thanks to white LED backlit, heavy-duty knobs that let you know when a burner is activated at a glance
• Guaranteed to fit your space : When you’re updating your kitchen, attention to detail is a priority. That’s why Café cooktops are guaranteed for an exact fit or Café Appliances will pay up to $100 toward modifications.
• Plentiful space for lots of cookware : Cook several dishes at once on a 30" cooktop with five sealed burners that provide multiple levels of heat

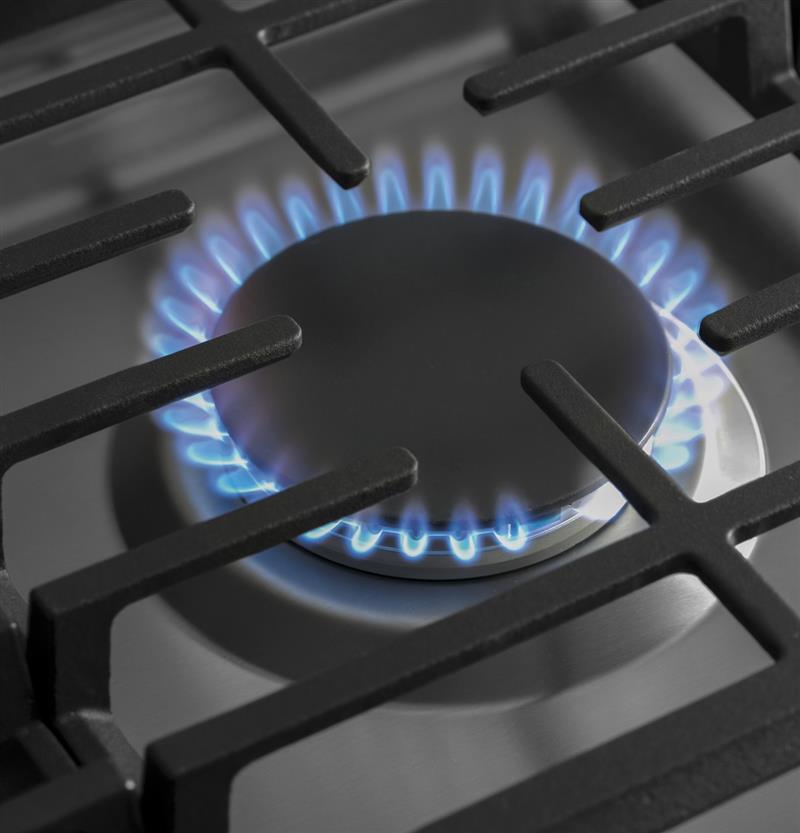

• Simmer away : Always get your hollandaise just right with a simmer burner that provides low, even heat
• Create a look that matches your personal style : Select from premium hardware options to create a stunning look customized to any owner’s taste
• One surface makes cooking easier : Easily move heavy cookware across the surface without worry, thanks to continuous, cast-iron grates
• Safety controls add peace of mind : Prevent unintended burner activation with control lock capability
• Spend more time cooking and less time cleaning up : Keep your kitchen sparkling, even when there's a spill with sealed cooktop burners that contain messes for easy cleanup
• Let the dishwasher do the cleaning : Enjoy the party without worrying about clean up, thanks to dishwasher-safe grates and knobs
