Specifications

• APPEARANCE
  • Color Appearance : Black
  • Frameless : Yes
  • Control Knobs : Black
• FEATURES
  • WiFi Connect : Built-In
  • Filler trim kit : JXTR32B
  • Cooktop Burner Type : 5 Ribbon, Smoothtop
  • Melt Setting : Yes
  • Fuel Type : Electric
  • Element - Left Front : 7" 1500W
  • Element - Right Front : 9"/7"/5" 3000W Power Boil
  • Cooktop Surface : Black Ceramic Glass with Beveled Edge
  • Indicator Lights : 5 Hot Surface, Red, Surface Element "ON"
  • Control Type : Electronic Touch Controls
  • Element - Center : 12"/9"/6" 3600W Power Boil
  • WiFi Enabled Features : Bluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI), Guided cooking with HestanCue Pans (App), Interfaces with SmartHQ App, Precision cooking with HestanCue Pans (HMI and App)
  • Element - Left Rear : 7" 1500W (Keep Warm)
  • Element - Right Rear : 6" 1200W (Melt)
  • Control Location : Front Center
  • Cooktop Type : Radiant Smoothtop
  • Cooktop Control Features : All-Off Control, Control Lock Capability, Custom Settings, Keep-Warm Setting, Kitchen timer, LED Light level adjustment, Melt Setting, Sound adjustment, Sync-Burners Capability
  • Product Type : Cooktop
• FILTER
  • App Filter - Backlit Knobs : Yes
  • App Filter - Cooktop Type : Radiant Smoothtop
  • App Filter - Cabinet Width : Cooking 36 in.
  • App Filter - Fuel Type : Electric
  • App Filter - SyncBurners : Yes
  • App Filter - Control Type : Rotary knobs
• POWER / RATINGS
  • Max. Connected Load (kW) at 240V : 10.9
  • Max. Connected Load (kW) at 208V : 8.2
  • Recommended Circuit Breaker (Amps) at 240V : 50
  • Recommended Circuit Breaker (Amps) at 208V : 40
  • Max. Current Draw (Amps) at 240V : 45.4
  • Max. Current Draw (Amps) at 208V : 39.4
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Overall Height : 3.375 in
  • Cutout Depth (in) : 19 1/8 in
  • Cabinet Width : 36 in
  • Approximate Shipping Weight : 49 lb
  • Overall Width : 36.125 in
  • Cutout Width (in) : 33-7/8
  • Cooktop Size : 36 in
  • Net Weight : 44 lb
  • Overall Depth : 20.375 in

Description

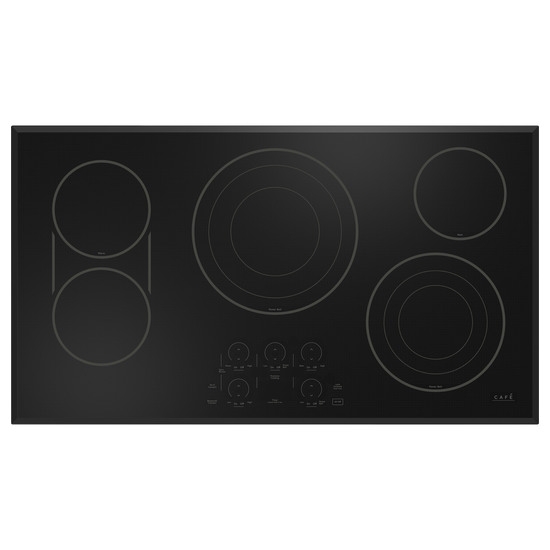

36-inch smoothtop electric cooktop with 5 radiant elements

Synchronized elements for efficient and even heat distribution

Tri/dual ring elements for versatile cooking with different-sized pots and pans

Glide Touch Controls for easy, precise heat adjustments

ADA compliant, ensuring accessibility for various kitchen setups and users

Features

• Power Boil on Tri- and Dual-Ring Elements : Cook more faster with a 3,000W Tri-ring element and a 2,200W dual-ring element that can handle any pan size.

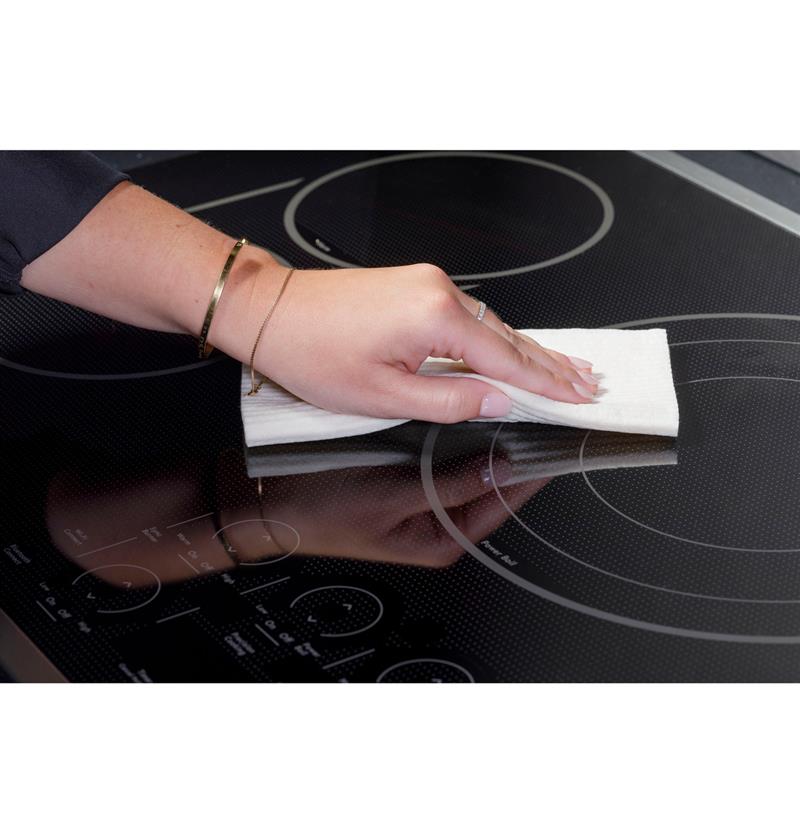

• Easy Clean Surface with Beveled Edge : A smooth glass surface with beveled edge makes this an easy clean electric cooktop that adds a level of aesthetic sophistication
• Glide Touch Controls : Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
• Guided Cooking : Follow along a video-guided recipe and your burners will automatically adjust time and temperature using a smart pan. Experience the joy of a perfectly cooked meal, from scallops to scrambles. Pan sold separately.
• Precision Temperature Control : Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.
• Synchronized Elements : Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
• Chef Connect : Synchronize your cooktop and Café over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect
• Keep Warm Setting : This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
• Control Lock : Protect against unintentionally turning your cooktop on with a safety control lock setting.
• Hot Surface Indicator Lights : A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
• Smart Cookware Rebate : Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan
• Built-in WiFi : This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.
• Fit Guarantee : This cooktop will fit your existing 36" cut-out or Café will help pay for modifications up to $100.
