Specifications

• APPEARANCE
  • Frame Color / Material : Stainless Steel
  • Color Appearance : Stainless Steel
  • Control Knobs : Stainless Steel
• FEATURES
  • Filler trim kit : JXTR32B
  • Melt Setting : Yes
  • Fuel Type : Electric
  • Element - Left Front : 7" 1500W
  • Indicator Lights : 5 Hot Surface, Red, Surface Element "ON"
  • Dual Ring Burners : Yes
  • Element - Right Front : 8"/5" 2200W Dual
  • Control Location : Front Center
  • Cooktop Surface : Slate Ceramic Glass with Stainless Trim
  • Cooktop Control Features : All-Off Control, Control Lock Capability, Custom Settings, Keep-Warm Setting, Kitchen timer, LED Light level adjustment, Melt Setting, Sound adjustment, Sync-Burners Capability
  • Element - Left Rear : 7" 1500W (Keep Warm)
  • Control Type : Electronic, Glide Touch
  • Element - Center : 9"/7"/5" 3000W Tri-ring Power Boil
  • WiFi Connect : Built-In
  • Element - Right Rear : 6" 1200W (Melt)
  • Product Type : Cooktop
  • WiFi Enabled Features : Bluetooth Pairing - Chef Connect with Hoods/OTRs and HestenCue Pans (HMI), Guided cooking with HestanCue Pans (App), Interfaces with SmartHQ App, Precision cooking with HestanCue Pans (HMI and App)
  • Cooktop Burner Type : 5 Ribbon, Smoothtop
  • Cooktop Type : Radiant Smoothtop
• FILTER
  • App Filter - Cabinet Width : Cooking 30 in. (Standard)
  • App Filter - SyncBurners : Yes
  • App Filter - Control Type : Rotary knobs
  • App Filter - Backlit Knobs : Yes
  • App Filter - Cooktop Type : Radiant Smoothtop
  • App Filter - Fuel Type : Electric
• POWER / RATINGS
  • Recommended Circuit Breaker (Amps) at 240V : 40
  • Max. Connected Load (kW) at 240V : 9.5
  • Recommended Circuit Breaker (Amps) at 208V : 40
  • Max. Current Draw (Amps) at 208V : 34.1
  • Max. Current Draw (Amps) at 240V : 39.6
  • Max. Connected Load (kW) at 208V : 7.1
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Cooktop Size : 30 in
  • Overall Height : 3.375 in
  • Cutout Depth (in) : 19 5/8 in
  • Cabinet Width : 30 in
  • Overall Width : 29.875 in
  • Net Weight : 34 lb
  • Cutout Width (in) : 28-1/2
  • Overall Depth : 21.5 in
  • Approximate Shipping Weight : 40 lb

Description

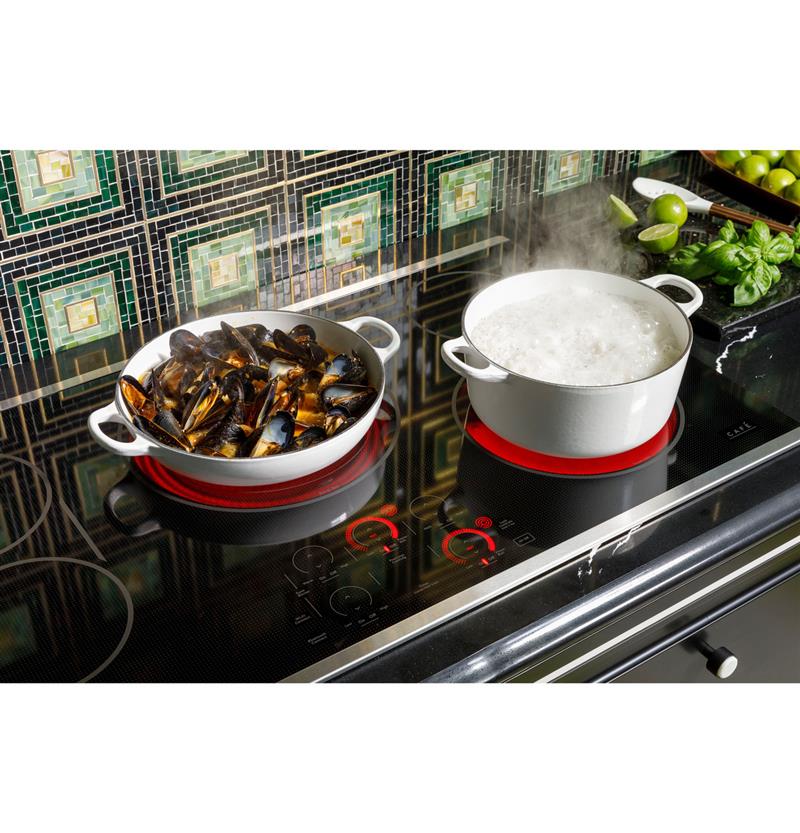

Size and Configuration: 30-inch electric cooktop with five versatile cooking elements

Tri/Dual Ring Element: Features a Tri/Dual ring element for flexible cooking options

Synchronized Elements: Allows for synchronized elements for improved cooking efficiency

Wi-Fi Connectivity: Equipped with Wi-Fi for smart control and monitoring via a mobile device

Glide Touch Control: Intuitive Glide Touch Control for easy and precise temperature adjustments

ADA Compliant: Designed to be accessible for a variety of kitchen setups

Finish: Sleek stainless steel finish that complements modern kitchen aesthetics

Features

• Power Boil on Tri- and Dual-Ring Elements : Cook more faster with a 3,000W Tri-ring element and a 2,200W dual-ring element that can handle any pan size.
• Easy Clean Surface : A smooth glass surface makes this an easy clean electric cooktop that adds a level of aesthetic sophistication
• Glide Touch Controls : Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
• Guided Cooking : Follow along a video-guided recipe and your burners will automatically adjust time and temperature using a smart pan. Experience the joy of a perfectly cooked meal, from scallops to scrambles. Pan sold separately.
• Precision Temperature Control : Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature – from 100 to 500 degrees. Perfect for sauces, candies and frying.
• Synchronized Elements : Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
• Chef Connect : Synchronize your cooktop and Café over-the-range microwave or hood so that your fan and lights automatically come on when a burner is activated with Chef Connect
• Keep Warm Setting : This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
• Control Lock : Protect against unintentionally turning your cooktop on with a safety control lock setting.
• Hot Surface Indicator Lights : A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
• Smart Cookware Rebate : Smart pans and a wireless sous vide probe easily pair with this smart cooktop to ensure you get the perfect cooking results. Earn a rebate for a free Hestan Cue smart pan
• Built-in WiFi : This smart cooktop features Built-In WiFi so you can monitor your burners and view power levels, precision temperature, or on/off.
• Fit Guarantee : This cooktop will fit your existing 30" cut-out or Café will help pay for modifications up to $100.
