Specifications

• ACCESSORIES
  • Optional 12' Drain Hose : Optional hose kit (WD24X10065)
  • Optional Kits : CXADTH1PVBT Brushed Black, CXADTH1PVBZ Brushed Bronze, CXADTH1PVCG Brushed Brass, CXADTH1PVCU Brushed Copper, CXADTH1PVFB Flat Black, CXADTH1PVSS Brushed Stainless
• APPEARANCE
  • Handle : Café™
  • Color Appearance : Matte White
  • Control Panel Color : Matte Dark Slate, Fingerprint Resistant
  • Handle Design : Customizable
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Handle Color : Brushed Bronze
  • Door Style : Long Door with Top Controls
  • Door Appearance : Full-length flat door
• ECONOMICAL / QUIET
  • Door Insulation : Insulation, Mastic
  • Motor Type : Variable Speed
  • Outer Wrap : Bitumen, Full-wrap Blanket
  • Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim
  • Quiet Package : 39 dBA
• FEATURES
  • Wash System : 4-Level, 800 Series
  • Sensor : Clean Sensor
  • Lower Rack : 1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines
  • Tub Type : Tall Tub
  • Leveling System : 3 Point Leveling
  • Additional Protection : Active Flood Protect, Leak Defense with Active Flood Protect
  • OU Certified : No
  • Number of Place Settings : 16
  • Style : Built-In Top Control
  • Water Filtration System : 100% Filtration with Hard Food Disposer and Removable Filter
  • Racking Material : Nylon
  • Smart Assist : Yes
  • Rack Color : Black Pearl
  • Racking System : Full 3rd rack
  • Dishwasher Drying Features : Dual Convection Ultra Dry, Fan Assist Dry, Ultra/Normal/Off
  • Interior Lighting : Yes - 4 - Café Expression
  • Wash Arms : 3rd Rack, 4 Wash Levels, Bottle Jets, Deep Clean Silverware Jets, Lower, Middle, Upper
  • Wash System Features : 90+ Spray Jet Wash System, Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Deep Clean Silverware Jets, Drain Pump, Hard Food Disposer with removable filter, Hidden Heater, Lower Wash Arm, Middle Wash Arm, Variable Speed Dual Pumps and Motors
  • Top Rack/3rd Rack : Washing, Sliding 3rd Rack w/ removable caddy
  • Dispenser : Electronic Low Rinse Aid Sensor, Rinse Aid with Indicator and Adjustment
  • WiFi Connect : Built-In
  • EcoBalance Compatible : Yes

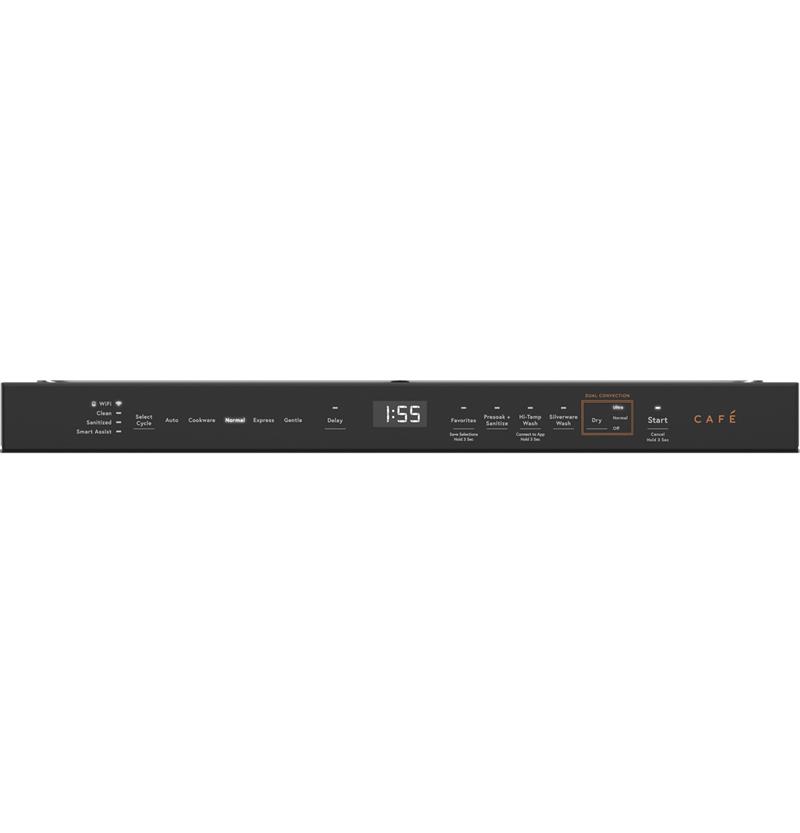

  • Control Type : 8 Touchpads, Cap Touch Controls, Top Controls
  • Number of Cycles : 6
  • Tub and Door Liner : Stainless Steel
  • Upper Rack : 1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines, Fixed tines with Bottle Jets, Lid Manager, Premium Height Adjustable, Smooth Glide Upper Rack
  • Dishwasher Control Features : Audible End-of-Cycle Signal, Cycle Countdown with Bi-Color LED Status Light on door, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory
  • Dishwasher Options : Bottle Wash (on app), Delay Start 1-12 Hr., Favorites, Favorites (on app), Heated Dry Off, Hi-Temp Wash, Lock Controls, Normal Dry, Presoak + Sanitize (Certified to NSF Standard 184), Sabbath Mode, Silverware Wash, Start/Cancel, Ultra Dry, Wash Zones/Half Load (on app), WiFi/Remote Enabled
  • Latch : Pull with Handle
  • Number of Options : 15
  • Rack Features : Adjustable Upper Rack, Ball-Tipped Tines, Cafe Flex Silverware Basket, Full Extension Slides - Upper, Lid Manager
  • Cutlery Tray : One piece removable 3rd rack
  • Floor Protection : Leak Defense with Active Flood Protect - Leak Pan with Sensor
  • Dishwasher Cycles : Auto Wash, Cascade Platinum Plus (on app), Cookware, Express, Gentle, Normal
  • Exterior Style : Customizable Professional
  • Sabbath Mode : Yes
  • Showroom Power Mode : Yes
• POWER / RATINGS
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Energy Consumption (kWh/year) : 240
  • Volts/Hertz/Amps : 120V; 60Hz; 10.2A
  • Calrod Heater Watts : 1200/400
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance

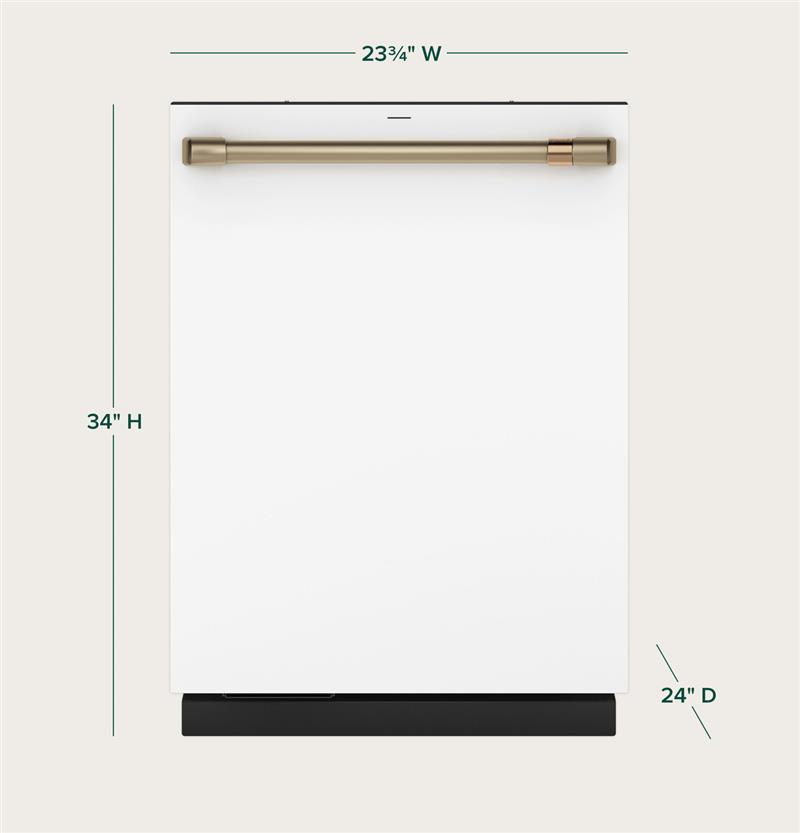

• WEIGHTS & DIMENSIONS
  • Height w/ Legs Retracted - Minimum Height : 33.375 in
  • Overall Depth : 24 in
  • Cabinet Width : 24 in
  • Overall Height : 34 in
  • Cutout Depth (in) : 24 in
  • Depth with Door Open : 27.5 in
  • Approximate Shipping Weight : 137 lb
  • Cutout Height (in) : 33 1/2 in
  • Cutout Width (in) : 24 in
  • Overall Depth with Handle : 27.4 in
  • Net Weight : 124 lb
  • Overall Width : 23.75 in
  • Height w/Legs Extended - Maximum Height : 34.625 in

Description

CustomFit ENERGY STAR Stainless Interior Smart Dishwasher

Equipped with Ultra Wash Top Rack for optimal cleaning

Dual Convection Ultra Dry system for perfect drying results

Features LED lights for improved visibility

Operates at a quiet 39 dBA for a peaceful environment

ENERGY STAR certified for energy efficiency.

Features

• Luminous LED Lights : Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.
• 39 dBA Dishwasher : Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.
• CustomFit Top Rack with Ultra Wash : Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.
• CustomFit Basket with Ultra Wash : Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.
• CustomFit Lid Caddy : Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
• Smart Features Powered by SmartHQ™ : Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
• Smart Assist : Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.
• Ultra Wash & Dry : This ultra-wash and dry dishwasher ensures table-ready dishes. Ranging from gentle for delicate stemware or intense for pots and pans, flexible wash options ensure that dishes get full coverage and the right amount of pressure for an ideal clean.
• Dual Convection Ultra Dry with Hidden Heat : Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. The Dual Convection Ultra Dry with Hidden Heat ensures that every item is fully dried, even dishwasher safe plastics.
• Customizable Dishwasher Handles : Choose from six unique Café handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
• 4 Bottle Wash Jets : This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
• Silverware Wash : Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.
• Presoak + Sanitize : Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.
• Leak Defense with Active Flood Protect : Leak Defense with Active Flood Protect senses and prevents potential overflows. A powerful water sensor alerts and guides you through the new Smart Assist feature if even a small amount of water leaks below the unit.
• Wash Zones : Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.
