Specifications

• ACCESSORIES
  • Optional 12' Drain Hose : Optional hose kit (WD24X10065)
  • Optional Kits : CXADTH1PVBT Brushed Black, CXADTH1PVBZ Brushed Bronze, CXADTH1PVCG Brushed Brass, CXADTH1PVCU Brushed Copper, CXADTH1PVFB Flat Black, CXADTH1PVSS Brushed Stainless
• APPEARANCE
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Handle Color : Brushed Bronze
  • Door Style : Long Door with Top Controls
  • Control Panel Color : Matte Dark Slate, Fingerprint Resistant
  • Handle : Café™
  • Door Appearance : Full-length flat door
  • Color Appearance : Matte White
  • Handle Design : Customizable
• ECONOMICAL / QUIET
  • Quiet Package : 44 dBA
  • Door Insulation : Insulation, Mastic
  • Outer Wrap : Bitumen, Full-wrap Blanket
  • Motor Type : Variable Speed
  • Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim
• FEATURES
  • Tub Type : Tall Tub
  • Additional Protection : Active Flood Protect
  • Number of Place Settings : 16
  • Dishwasher Options : Bottle Wash (on app), Delay Start 1-12 Hr., Favorites, Favorites (on app), Heated Dry Off, Hi-Temp Wash, Lock Controls, Normal Dry, Presoak + Sanitize (Certified to NSF Standard 184), Sabbath Mode, Silverware Wash, Start/Cancel, Ultra Dry, Wash Zones/Half Load (on app), WiFi/Remote Enabled
  • Latch : Pull with Handle
  • Water Filtration System : 100% Filtration with Hard Food Disposer and Removable Filter
  • Cutlery Tray : One piece removable 3rd rack
  • Smart Assist : Yes
  • EcoBalance Compatible : Yes
  • Control Type : 8 Touchpads, Cap Touch Controls, Top Controls
  • Wash Arms : 3rd Rack, 4 Wash Levels, Bottle Jets, Deep Clean Silverware Jets, Lower, Middle, Upper
  • Wash System Features : 90+ Spray Jet Wash System, Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Deep Clean Silverware Jets, Hard Food Disposer with removable filter, Lower Wash Arm, Middle Wash Arm, Variable Speed Dual Pumps and Motors
  • Top Rack/3rd Rack : Washing, Sliding 3rd Rack w/ removable caddy
  • Exterior Style : Customizable Professional
  • Wash System : 4-Level, 800 Series
  • OU Certified : No
  • Number of Options : 15
  • Style : Built-In Top Control
  • Rack Features : Adjustable Upper Rack, Ball-Tipped Tines, Cafe Flex Silverware Basket, Full Extension Slides - Upper, Lid Manager
  • Racking Material : Nylon
  • Rack Color : Black Pearl
  • Racking System : Full 3rd rack
  • Dishwasher Drying Features : Dual Convection Ultra Dry, Heated Dry - Ultra/Normal/Off, Multi-Wattage Wash & Dry Element
  • Sensor : Clean Sensor
  • Lower Rack : 1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines
  • Leveling System : 4 Leveling Legs
  • WiFi Connect : Built-In
  • Dishwasher Control Features : Audible End-of-Cycle Signal, Cycle Countdown with Bi-Color LED Status Light on door, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled, Last Cycle Memory
  • Dishwasher Cycles : Auto Wash, Cascade Platinum Plus (on app), Cookware, Express, Gentle, Normal
  • Dispenser : Rinse Aid with Indicator and Adjustment
  • Upper Rack : 1 Rack handle, 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines, Fixed tines with Bottle Jets, Lid Manager, Premium Height Adjustable, Smooth Glide Upper Rack
  • Number of Cycles : 6
  • Tub and Door Liner : Stainless Steel
  • Sabbath Mode : Yes
  • Showroom Power Mode : Yes
• POWER / RATINGS
  • Calrod Heater Watts : 800/500
  • Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
  • Energy Consumption (kWh/year) : 240
  • Volts/Hertz/Amps : 120v; 60Hz; 7.2A
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Cutout Height (in) : 33 1/2 in
  • Net Weight : 124 lb
  • Overall Width : 23.75 in
  • Approximate Shipping Weight : 137 lb
  • Height w/ Legs Retracted - Minimum Height : 33.375 in
  • Overall Depth : 24 in
  • Cabinet Width : 24 in
  • Height w/Legs Extended - Maximum Height : 34.625 in
  • Depth with Door Open : 25.5 in
  • Overall Height : 34 in
  • Overall Depth with Handle : 26.3 in
  • Cutout Depth (in) : 24 in

Description

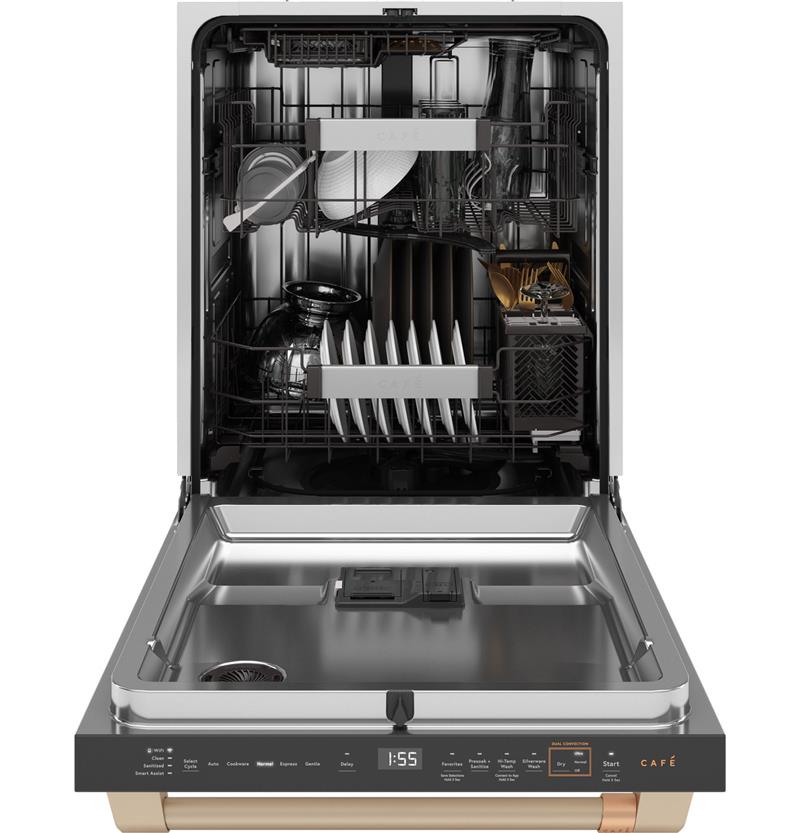

24 Inch Fully Integrated Built-In Smart Dishwasher

16 Place Setting Capacity, ideal for large families and entertaining

6 Wash Cycles, including the powerful Ultra Wash for deep cleaning

Operates at a quiet 44 dBA noise level, ensuring minimal disruption

Sleek Matte White finish with Brushed Bronze Handles for a modern look

Smart technology for efficient cleaning and energy-saving performance

Fully integrated design for a seamless kitchen aesthetic

Fingerprint-resistant surface for easy maintenance and a clean appearance

Features

• CustomFit Top Rack with Ultra Wash : Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.
• CustomFit Basket with Ultra Wash : Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.
• CustomFit Lid Caddy : Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
• Ultra Wash & Dual Convection Ultra Dry : Expect precision cleaning and superior dryness on fine china, dinnerware and plastics in this ultra-wash and dry dishwasher. Exceptional features like Variable-Pressure Jets and Dual-Convection Ultra Dry offer great results with every cycle.
• Customizable Dishwasher Handles : Choose from six unique Café handle finishes to complement the rest of your kitchen thanks to this dishwasher with customizable hardware.
• 4 Bottle Wash Jets : This dishwasher with 4 bottle wash jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the jets directs water and detergent inside to effectively wash hard-to-reach areas.
• Smart Features Powered by SmartHQ™ : Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
• Smart Assist : Smart Assist makes it simple for you to unlock optimal wash and dry performance. Innovative dishwasher sensors and intelligent machine learning enhance and improve cycles over time.
• Smooth-Glide Adjustable Middle Rack : Load your dishwasher your way thanks to an adjustable middle rack. Easily move it up and down to fit bottles, large platters and other items as tall as 10.5".
• Presoak + Sanitize : Save time with a high-temperature cycle that steams and sanitizes. Loosen tough soils before the wash cycle begins without the need to pre-rinse or soak. Plus, a sanitation cycle reduces 99.999% of bacteria on dishes.
• Silverware Wash : Powerful jets in the top rack and and below the basket in the lower rack work in unison using targeted washing action to clean even the most stuck-on foods from silverware and cooking utensils.
• Middle and Lower Rack Fold-Down Tines : Two rows of adjustable tines in both the middle and lower rack allow you to load the way you want. 16 different tine positions offer the ultimate customization to fit all of your items.
• Wash Zones : Wash a true half load in the upper or lower rack whenever you need to in this dishwasher with loading flexibility. Just choose your wash zone: upper or lower. The feature works in combination with most cycles, saving you time and conserving energy.
• Active Flood Protect : Active Flood Protect prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached.
• Flush Installation : Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside.
