Specifications

• ACCESSORIES
  • Optional Kits : CXQD2H2PNBT - Brushed Black, CXQD2H2PNBZ - Brushed Bronze, CXQD2H2PNCG - Brushed Brass, CXQD2H2PNCU - Brushed Copper, CXQD2H2PNFB - Flat Black, CXQD2H2PNSS - Brushed Stainless
• APPEARANCE
  • Handle : Café™
  • Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
  • Handle Color : Brushed Stainless
  • Door Style : 2 Drawer Fronts
  • Door Appearance : 2 Drawer Fronts
  • Control Panel Color : Grey
  • Color Appearance : Stainless Steel
  • Handle Design : Customizable
• ECONOMICAL / QUIET
  • Door Insulation : Yes
  • Motor Type : Variable Speed, BLDC
  • Quiet Package : 46 dBA Single/ 49 dBA Double
  • Outer Wrap : Full Steel Inclosure
• FEATURES
  • Tub Type : Double Drawer
  • Leveling System : 4 Leveling Legs
  • Number of Place Settings : 14
  • Dishwasher Options : Ultra Dry; Fast; Sanitize; Lock Controls, Delay
  • Latch : Pull with Handle; Interior lid closes during cycle
  • Number of Options : 3
  • Style : Built-In Top Control
  • Water Filtration System : 100% Filtration
  • Wash System : 2 completely independent wash systems
  • Additional Protection : Active Flood Protect
  • Racking Material : Nylon
  • Rack Color : Grigio
  • Wash Arms : 2 Total, 1 per Drawer
  • Exterior Style : Traditional
  • Showroom Power Mode : Yes
  • Lower Drawer : 4 Utility Shelves; 2 with StemSafe, Fold Down Tines, Lower drawer fits 10-1/2 inch plates, Silverware Basket with cell covers, Standard
  • Rack Features : 2 long and 2 short articulating plastic utility shelves w/Stemsafe; Fold Down and Adjustable Tines; 2 piece Silverware Basket, Ball-Tipped Tines, Full Extension Slides
  • Dishwasher Cycles : China, Express, Normal, Plus, Pots, Rinse
  • Upper Drawer : 4 Utility Shelves; 2 with StemSafe, Fold Down Tines, Large, Silverware Basket with cell covers, Upper drawer fits 13 inch plates
  • Dispenser : Rinse Aid

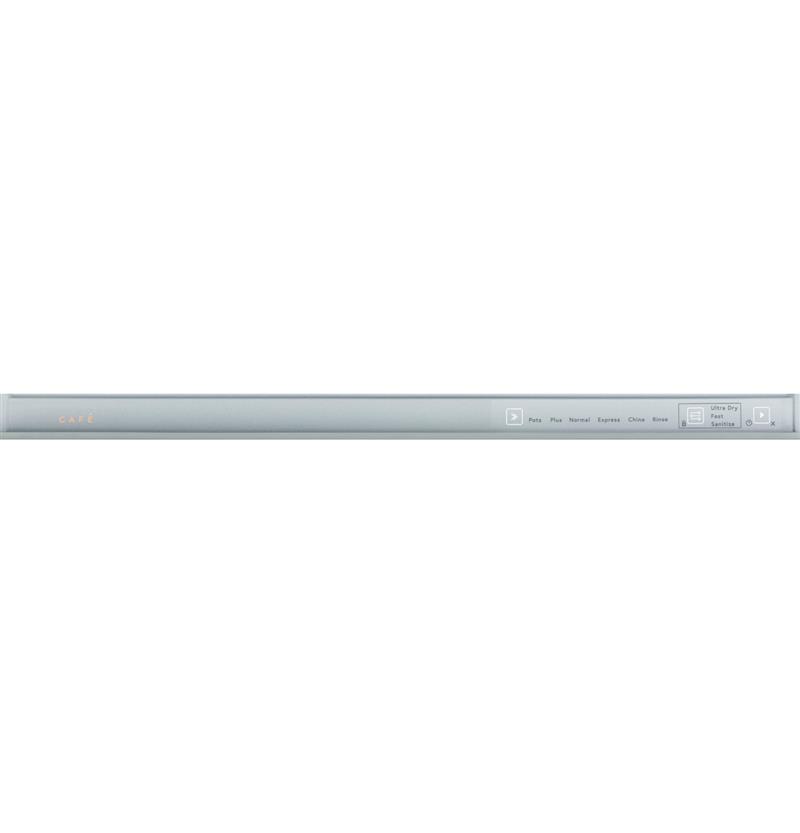

  • Control Type : 3 Touchpads, Cap Touch Controls, Top Controls
  • Active Flood Protection : Active Flood Protect
  • Dishwasher Control Features : Delay and Lock capabilities, Audible End-of-Cycle Signal; Last Cycle Memory, Non Sanitization Temp Error
  • Tub and Door Liner : Gray Plastic
  • Racking System : 2 Racks with 4 Cup Shelves
  • Dishwasher Drying Features : Fan Assist Dry
  • Wash System Features : Automatic Temperature Control, Single pump per system (identical per drawer); Water and Prime regulator for efficiency
  • Number of Cycles : 6
• POWER / RATINGS
  • Energy Consumption (kWh/year) : 270
  • Calrod Heater Watts : 503
  • Power Connection : Power Cord - Included
  • Volts/Hertz/Amps : 120V/60hz/9.4amp
• WARRANTY
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
  • Parts Warranty : Limited 1-year entire appliance
• WEIGHTS & DIMENSIONS
  • Height w/ Legs Retracted - Minimum Height : 34 in
  • Cutout Height (in) : 34 in
  • Overall Depth : 0.1875 in
  • Cabinet Width : 24 in
  • Net Weight : 120 lb
  • Depth Without Handle : 0.5625 in
  • Approximate Shipping Weight : 125 lb
  • Overall Height : 34 in
  • Height w/Legs Extended - Maximum Height : 36.375 in
  • Depth with Door Open : 21.5625 in
  • Overall Width : 23.5625 in
  • Overall Depth with Handle : 0.1875 in

Description

14 Place Settings: Ample space to accommodate large dish loads for efficient cleaning.

6 Wash Cycles: Versatile wash cycles for different cleaning needs, including heavy, normal, and delicate options.

3 Wash Options: Customizable wash options for optimizing performance based on the load.

Knock To Pause: Convenient pause function activated with a simple knock, allowing you to adjust the cycle.

Delay Start: Set the dishwasher to begin at a later time, offering flexibility for your schedule.

Active Flood Protection: Ensures protection from leaks or floods, providing peace of mind during operation.

46 dBA (Single Drawer): Ultra-quiet operation for a peaceful kitchen environment during single drawer use.

49 dBA (Double Drawer): Quiet performance even when both drawers are in use, ensuring minimal disruption.

Adjustable Racks: Flexible and customizable rack system to fit dishes of various sizes and shapes.

sher Double Drawer

Features

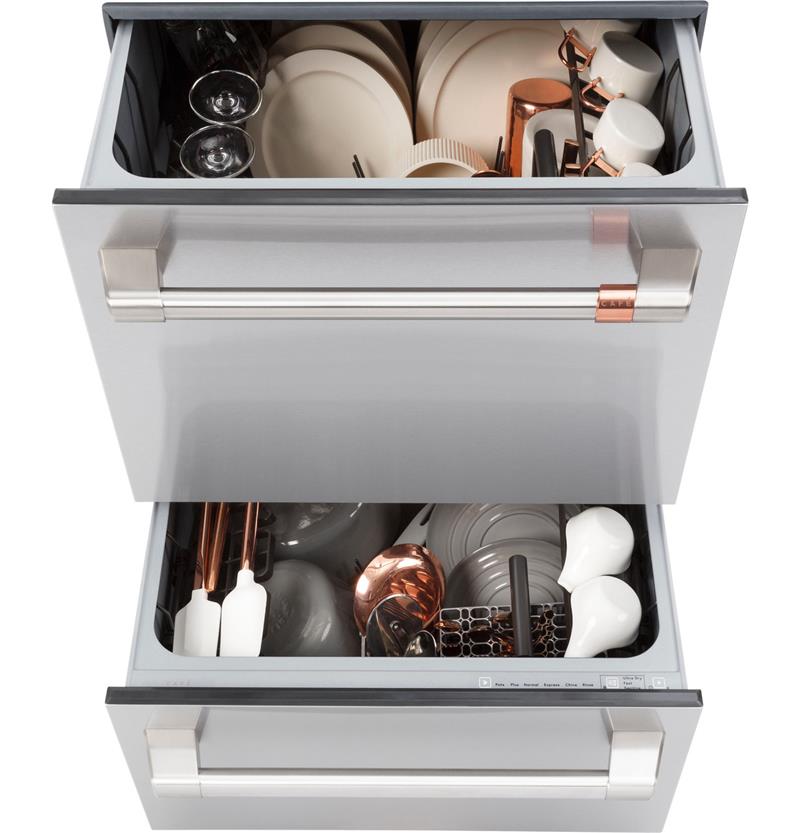

• Double Drawer : Experience the convenience of two drawers that you can use independently to wash everything from heirloom place settings to casserole dishes with separate cycles
• Create a Look That Matches Your Personal Style : With this customizable dishwasher, you can combine any of the premium finishes and hardware options for a stylish appearance that's truly unique
• Small Load Setting : Wash every load with a clean conscience thanks to an energy efficient dishwasher with two special settings for conserving resources. Guilt-free Small Load is ideal for partial loads, while Eco-Cycle was designed to consume less energy and water
• Knock to Pause Function : Pause the dishwasher mid-cycle with a simple knock, then press Start/Play to resume
• Easy to Load and Unload : Keep bending to a minimum while you load and unload the conveniently placed, ergonomically designed upper drawer

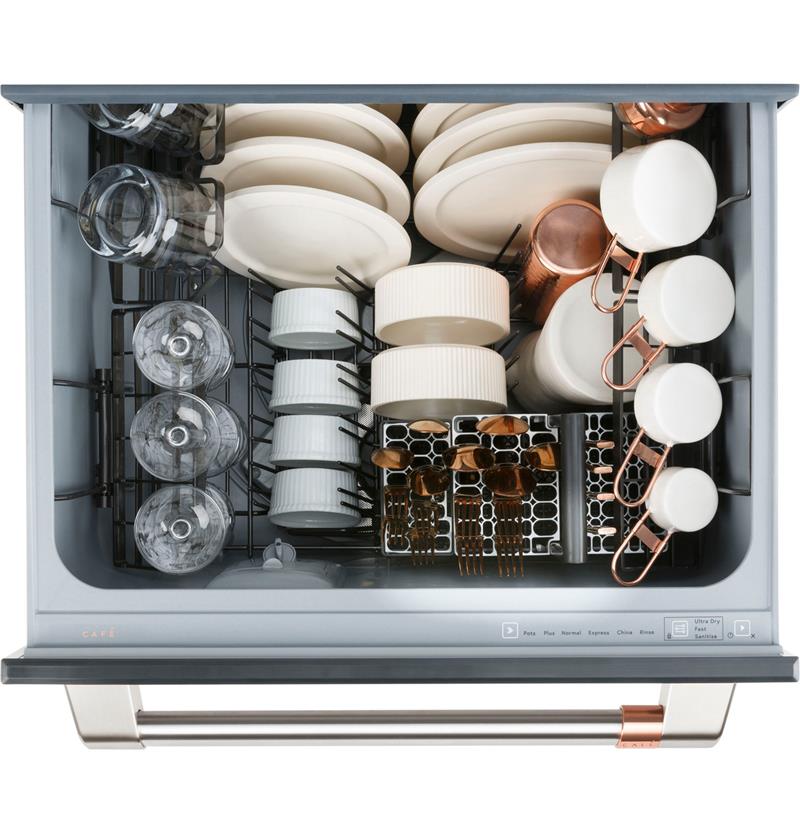

• Accommodates Large Dish Loads : With two removable silverware baskets and enough capacity for 14 place settings, you can wash every item in a single load, even after the largest meals
• 6 Wash Cycles : Go beyond the normal wash and dry with six cycles, plus Fast Dry, Sanitize and Ultra Dry options
• Water Leak Sensor : This dishwasher features Water Leak Sensor, preventing potential overflows for greater peace of mind. A water sensor cancels the wash cycle before a flood can occur and alerts you with blinking lights and a tone
• Fits Standard 24” Cutout : The dishwasher dimensions allow for easy installation in a standard 24"-wide cutout
• Delay Start : A dishwasher delay function lets you set it to start while you're working, sleeping or out of the house

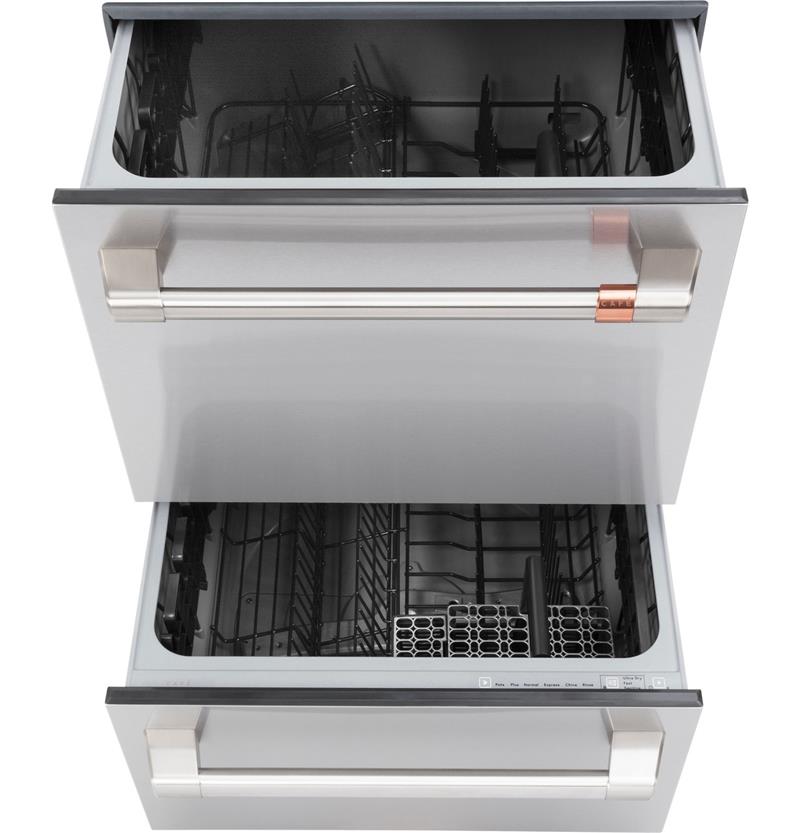

• Adjustable Racks : Never worry about how to load the dishwasher again thanks to the loading flexibility that comes with racks that can be adjusted to accommodate any item
• 46 dBA Single Drawer & 49 dBA Double Drawer : This quiet dishwasher keeps your kitchen peaceful whether you're using one or both of the drawers
