Specifications

• ACCESSORIES
  • Optional Kits : CXQW1H1PPBT - Brushed Black, CXQW1H1PPBZ - Brushed Bronze, CXQW1H1PPCG Brushed Brass, CXQW1H1PPCU - Brushed Copper, CXQW1H1PPFB Flat Black, CXQW1H1PPSS - Brushed Stainless
• APPEARANCE
  • Toe kick : Matte White, 3/4" adjustable
  • Installation : Built-In or Free-Standing
  • Color Appearance : Matte White
  • Handle Color : Brushed Bronze
  • Handle : Café™
  • Door Swing : Reversible Door
  • Door Stops : 110 Degree
• CAPACITY
  • Unit Capacity : 46 Wine Bottles
  • Total Capacity (cubic feet) : 4.7 cu ft
• FEATURES
  • Dual Temp Zone : Yes - Independent Upper & Lower Zones
  • Proximity Lighting Control : Yes - On/Off Option, Multi Key or in App
  • Temperature Range : 41 - 61 F
  • Cooling method : Compressor
  • Large Wine Bottle Capability : Yes, Top Rack in Both Upper and Lower Zones
  • Product Type : Wine Reserve
  • WiFi Connect : Built-In
  • Number of Doors : 1
  • Door Ajar Alarm : Yes, Audible & Visual
  • Triple Pane Glass Door : Yes
  • Wine Racks : 6 Full-Extension, with Matte Black Fronts and Copper Accents
  • Hi Temp Alarm : Yes, Audible & Visual
  • Sabbath Mode : Yes
  • Defrost Type : Auto
  • Interior Lighting : LED/ LED Light Wall
  • Control Type : Electronic
  • OU Certified : No
  • Interior Lighting Control : Door Closed: On/Off Option, Door Open: Always On
  • Adjustable Temperature Control : Yes
  • Choose Temp Zones : Yes, Upper & Lower Zones
  • Refrigerant Type : R600a
  • Leveling System : Leveling Legs
• FILTER
  • App Filter - Dispenser : No
  • App Filter - Capacity : Refer Small & compact (16 cu. ft. and below)
  • App Filter - Icemaker : No
  • App Filter - Product Type : Refer Wine Reserve
• POWER / RATINGS
  • Volts/Hertz : 115V; 60Hz
• WARRANTY
  • Warranty Notes : See written warranty for full details
  • Labor Warranty : Limited 1-year entire appliance
  • Parts Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
• WEIGHTS & DIMENSIONS
  • Back Air Clearances : 0 in
  • Side Air Clearances : 0 in
  • Case Depth Without Door : 21.75 in
  • Height to Top of Hinge : 34.125 in
  • Overall Height : 34.125 in
  • Overall Width : 23.75 in
  • Approximate Shipping Weight : 165 lb
  • Top Air Clearances : 0 in
  • Net Weight : 155 lb
  • Depth Without Handle : 23.375 in
  • Overall Depth : 26 in

Description

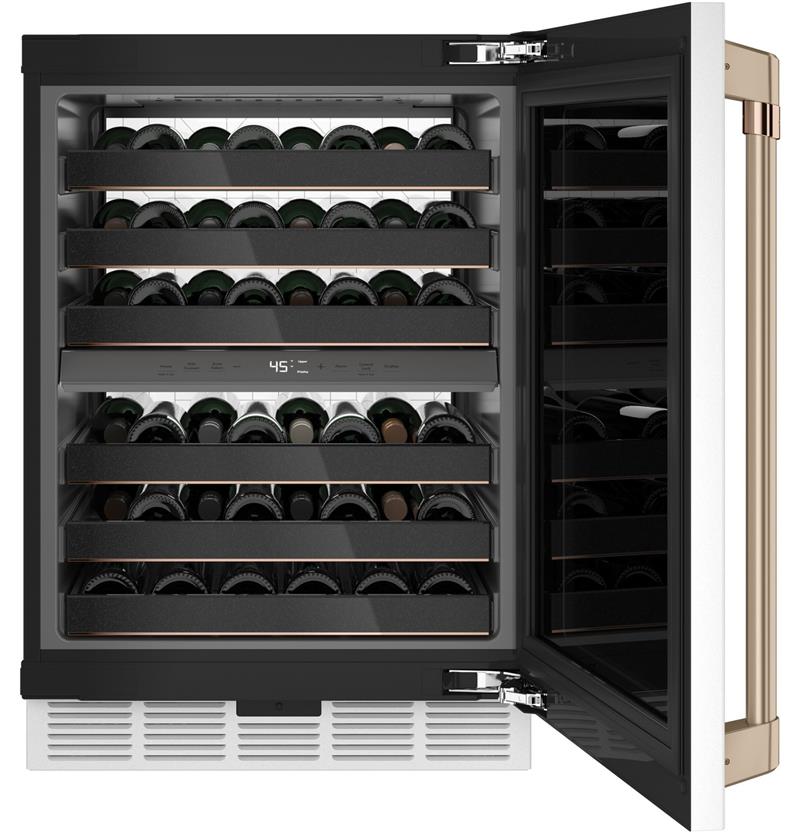

24 Inch Dual Zone Smart Wine Center with a 46-bottle capacity

Features 6 full extension racks for easy access and optimal storage

LED light wall enhances visibility of your wine collection

Electronic controls for precise temperature adjustments in two separate zones

Temperature range from 41

F to 61

F to preserve your wine at ideal conditions

Equipped with smart technology for convenient control and monitoring

Includes Sabbath mode, disabling lights and alarms to comply with religious observances

ADA compliant, ensuring accessibility for all users

Elegant matte white finish to complement any modern kitchen or living space

Features

• LED Light Wall : This wine center has an LED light wall that spans the back panel, illuminating the interior so every item is easy to find
• Magnum Bottle Storage : Chill up to eight 1.5 liter bottles of wine or prosecco without scratching the label or sacrificing space on the other shelves
• Smart Technology : The wine center has Built-In WiFi so you can control it from anywhere. Using the SmartHQ app, you can remotely change your temperature or dim the LED light wall. Plus, you'll get the latest connected home capabilities with new modes and updates
• Flush Installation : With built-in, flush-to-cabinet installation, this wine center fits in perfectly with your home's overall design
• Dual Zone Temperature Control : This wine center has two distinct zones that maintain any temperature between 41 and 61 degrees Fahrenheit, so you can keep both red and white wines at the perfect serving temperature
• 46-Bottle Capacity : Enjoy plenty of space to store rosé, champagne and all of your favorite wines
• Articulating Door Hinges : These hinges prevent the wine center door from striking anything in the kitchen, including your cabinetry. They also help the door open smoothly and close softly
• Open Door Notifications : Protect your bottle collection by receiving a push notification on your smart phone each time the wine center door is open
• Adjustable Lighting : This wine center has flexible lighting options you can change from the SmartHQ app. Choose from proximity lighting that illuminates automatically as you approach, gradient lighting or lighting that turns on and off as you open or close the door
• Temperature Alarm : With a WiFi connected wine center, you receive notifications when the door has been left open or the power goes out. Now you can maintain ideal temperatures even when you're on the go
• Reversible Door Options : Reversible door lets you choose whether the wine center opens to the left or the right
• Hidden Temperature Controls : These temperature controls let you make easy adjustments without distracting from the wine center's overall design
• Customizable Handle Options : Choose from four unique Café handle finishes to complement the rest of your kitchen, or your other Café appliances
• Finish Options : This wine center comes in multiple finish options, including Stainless, Matte Black and Matte White
