Specifications

• ACCESSORIES
  • Optional Accessories : UX12B36PSS: 12" Backsplash; UXADJB36PSS: 36" Backsplash with shelf
  • Air Fry Basket : Optional- JXAFTRAY1VSS
  • Optional Kits : CXPR6HKPTBT Brushed Black, CXPR6HKPTBZ Brushed Bronze, CXPR6HKPTCG Brushed Brass, CXPR6HKPTCU Brushed Copper, CXPR6HKPTFB Flat Black, CXPR6HKPTSS Brushed Stainless
  • High Altitude Kit : Optional Natural Gas: WB28X39728; Optional LP: WB28X39729
  • LP Conversion Kit : Included
  • Grill/Griddle : UXPRRGG (Optional)
• APPEARANCE
  • Cooktop Burner Grate Color : Matte Black
  • Installation : Power Cord Included
  • Handle Color : Brushed Stainless
  • Toe kick : Optional CXPR6TKPMDS: 36" Matte Black
  • Control Knobs : Brushed Stainless, Dishwasher Safe, Professional-Style
  • Color Appearance : Matte Black
  • Handle : Café™
  • Oven Door Features : Big Clear View Oven Window
• CAPACITY
  • Total Capacity (cubic feet) : 5.75 cu ft
• FEATURES
  • Cooking System : True Convection with Reverse Air
  • Burner - Left Rear : 18,000 BTU
  • Connected Capabilities : Amazon Alexa, DiGiorno, Fresco, IFTTT, Innit, Sonos, The Google Assistant
  • WiFi Enabled Features : Meat Probe (App-Based Function), No Preheat Air Fry, Precision Cooking Modes, Remote Notifications, Remote Oven Control, Scan To Cook (Oven), Voice Control
  • Cooktop Type : Standard Grates
  • WiFi Connect : Built-In
  • Oven Cleaning Type : Self-Clean with Steam Clean Option
  • Product Type : Free-Standing Single Oven, Professional Range
  • Style : Commercial
  • Cooktop Burner Grate Material : Heavy Cast
  • Ignition System : Electronic w/Auto Reignition
  • Dishwasher Safe Knobs : Yes
  • Cooktop Burner Grate Features : Continuous Grates
  • Control Type : Digital Temperature Display, with Timer Display
  • Oven Rack Features : 1 Self-Clean Roller Rack, 2 Self-Clean Flat Oven Racks
  • Backguard : Brushed Stainless
  • Burner - Center : 12,000 BTU Front / 12,000 BTU Rear
  • Burner - Left Front : 21,000 BTU Multi-ring Burner
  • Sabbath Mode : Yes
  • Leveling System : 4 Leveling Legs
  • Cooking Technology : Convection
  • Configuration : 6 Burners
  • Oven Features : 8-Pass Broil Element, Hidden Bake
  • OU Certified : OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
  • Burner - Right Rear : 18,000 BTU
  • Oven Cooking Modes : Bake, Broil, Convection Bake, Convection Broil, Convection Roast, Oven Temperature Probe, Proof, Steam-Clean, Timers (All), Warming
  • Cooktop Burner Type : Sealed
  • Valves (Degree of Turn) : 270
  • Cooktop Surface : Gray, Porcelain-Enamel
  • Oven Rack Positions (Single or Upper/Lower) : 5
  • Self-Clean Oven Door Lock : Automatic
  • Cleaning Time : Variable with Delay Clean Option
  • Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Self Clean, Chef Connect, Delay Clean Option, Electronic Timer, Front Controls, In-Oven Broiling, Oven "ON" Light, Scan-to-Cook, Self-Clean Cool Down Time Display, Temperature Probe
  • Fuel Type : 240V Electric and Natural Gas
  • Burner - Right Front : 10,000 BTU
• FILTER
  • App Filter - Control Type : Electronic touchpad
  • App Filter - Fuel Type : Dual Fuel
  • App Filter - Cooking Technology : Convection
  • App Filter - Cabinet Width : Cooking 36 in.
  • App Filter - Product Type : Ranges Professional Range
  • App Filter - Convection : Yes
  • App Filter - Cleaning Type : Steam and Self-Clean
  • App Filter - Voltage : 240V
  • App Filter - Cooktop Type : Continuous Grates
• POWER / RATINGS
  • Volts/Hertz/Amps : 240V; 30A
  • Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (2) 15.0; (2) 12.0; (1) 9.1
  • Amp Rating at 240V : 30
  • Broil Wattage : 4000W
  • Bake Wattage : 2700W
  • Power Connection : Power Cord - Included
  • Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0; (2) 18.0; (2) 12.0; (1) 10.0
  • Amp Rating at 208V : 30
  • Convection Wattage : 2500W
• WARRANTY
  • Parts Warranty : Limited 1-year entire appliance
  • Labor Warranty : Limited 1-year entire appliance
  • Warranty Notes : See written warranty for full details
• WEIGHTS & DIMENSIONS
  • Depth Without Handle : 29.375 in
  • Height to Cooking Surface (in.) : 35 1/4 to 36 3/4
  • Overall Width : 35.875 in
  • Approximate Shipping Weight : 462 lb
  • Cabinet Opening : 36 in
  • Overall Height : 35.25 in
  • Overall Depth : 31.125 in
  • Depth with Door Open : 48.25 in
  • Oven Interior Dimensions (W x H x D) (in.) : 28-1/4 x 16-3/8 x 21-3/8
  • Net Weight : 417 lb
  • Cabinet Width : 36 in
  • Height w/Legs Extended - Maximum Height : 36.75 in

Description

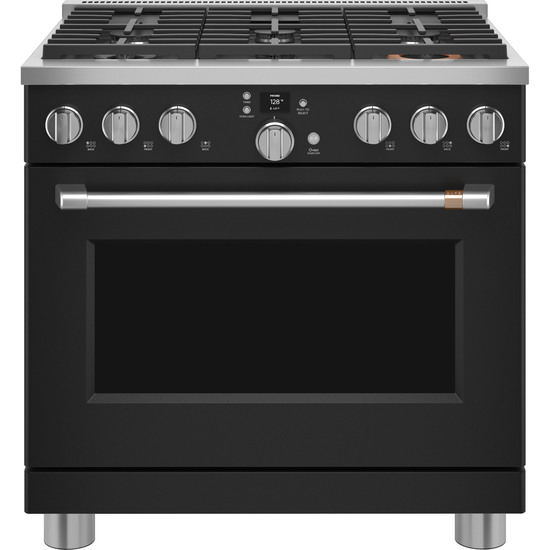

• Product Name: 36-Inch Smart Dual Fuel Professional Range
• Finish: Matte Black
• Cooktop:
  • Six sealed burners for versatile cooking options.
• Oven Features:
  • 5.75 cu. ft. oven capacity, perfect for large meals and baking.
  • True Convection with Reverse Air for even heat distribution and optimal results.
  • Self-clean function with a steam option for easy oven maintenance.
  • Self-clean bake racks for convenient cleaning.
• Smart Features:
  • Wi-Fi connectivity for remote control and monitoring through a smartphone or app.
  • Temperature probe for precise cooking.
• Certifications:
  • ADA compliant, ensuring safety and accessibility.

This Matte Black dual fuel range combines professional-grade performance with modern technology, making it a sleek and efficient addition to any kitchen.

Features

• Versatile Cooktop : The versatile cooktop on this commercial style range features an entire arsenal of burners that give you the right amount of heat and control to perfectly cook anything from delicate sauces to expertly seared meats.
• Caterer Oven : A large capacity oven fits a full-size catering pan and has three racks, large 8-pass bake and broil elements for even heat coverage and Precision Oven modes to help guarantee results for meals of any size
• Color-Matched Manifold with LCD Control : Get a coordinated look with a manifold that matches the range's finish and an LCD control panel that provides information like oven and probe temperatures and cooking time for perfect cooking results
• Superior Heat Distribution : The industry-exclusive Inspiral burner swirls the cooktop flame under cookware to more evenly spread heat from the center to the edges
• Multi-Ring Burner : A versatile burner offers different-sized flame rings on a single burner element, so it's like having multiple burners in one
• Two Griddle Burners : Cook more at once with two 12,000-BTU powerful burners that can be used together or separately with an optional griddle grill accessory (Model # UXPRRGG)
• Two High-Heat Burners : Boil water quickly with two 18,000-BTU Power Boil burners that give you more cooking power
• Built-in WiFi : This smart oven features WiFi connection so you can control oven functions with the SmartHQ app on your smart device. See details
• Precision Oven Modes : Simplify the cooking process with precision oven modes that automatically track progress, make time and temperature adjustments, and work with the SmartHQ™ app.
• Precision Temperature Probe : An innovative temperature probe that helps you achieve the perfect level of doneness for oven favorites
• Three Baking Racks : Cook more at once with two enamel low-profile racks and one partially extended rack
• No-Preheat Air Fry : Cook healthier, crispier versions of your favorite foods in less time, thanks to an air fryer right in your oven that doesn’t require preheating, a basket or a special tray
• Enhanced Shabbos Mode : The Shabbos Keeper connects to your range to automatically enable Shabbos compatible modes each week and before every holiday (Shabbos Keeper sold separately, visit www.zmantechnologies.com for details). WiFi connection via the SmartHQ app required for initial setup
