Specifications

• General
  • SKU: SHP78CM5N
  • Internal article number: SHP78CM5N
  • Construction type: Built-in
  • Installation type: Built-under
  • Type of control: push-button, touch buttons
  • ChildLock: No
  • Door decor panel: Not possible
  • Tub material: Stainless steel
  • Hidden heating element: Yes
  • Current (A): 12
  • Volts (V): 120
  • Frequency (Hz): 60
  • Power cord length (cm): 170.0
  • Power Cord Length: 67''
  • Plug type: Nema5-15P
  • Width of the packed product (mm): 660
  • Minimum height for installation (mm): 860
  • Maximum height for installation (mm): 890
  • Home Connect Connectivity: Wi-Fi
  • Home Connect: Remote Monitoring and Control
  • Third Rack: 3rd Rack 2.0
  • Product group: Dishwasher
  • Removable work top: No
  • Total annual energy consumption (kWh): 240
  • Depth of the packed product (mm): 745
  • Number of place settings: 16
  • Silence level (dBA): 42
  • Length outlet hose : 78 3/4''
  • Enter the minimum temperature for wash (°C): 50
  • Watts (W): 1440
  • Length outlet hose (cm): 200
  • Height of removable worktop (mm): 0
  • Maximum width for installation (mm): 618
  • Depth for installation (mm): 610
  • Single basket washing: No possibility
  • End of cycle sound: End of program audible
  • Cycle Options: HygienePlus, Remote Start, Zeo Dry, ZoneControl™ Back, ZoneControl™ Custom, ZoneControl™ Front
  • Automatic programmes: Yes
  • Safety device: Single Water Protection 24h
  • Interior light: No
  • Optional accessories: SGZ1010UC, SMZ4000UC, SMZ5000, SMZ5002UC
  • Total annual water consumption : 688
  • Brand: Bosch
  • Accessories Parts: no
  • EAN code: 4242005311668
  • Adjustable plinth: No
  • Maximum adjustability feet (mm): 30
  • Depth with open door 90 degree (mm): 1231
  • Energy Efficiency Class: Tier 1
  • Height of the packed product (mm): 908
  • Column installation: Yes
  • Type of control: Electronic
  • Reference programme: Eco
  • Number of different wash temperatures: 6
  • Enter the maximum temperature for wash (°C): 71
  • Required cutout size (HxWxD) : 33 7/8'' x 24'' x 24''
  • Water softener: No
  • Maximum temperature for water intake (°C): 60
  • Start delay options: No delay
  • Status indicator: End of program audible, Time remaining indic. internal
  • Adjustable upper rack: Rackmatic 3-stage
  • Basket with handle: Bottom basket, Top basket
  • Software update: Yes
  • UPC code: 825225965909
  • Minimum width for installation (mm): 610
  • Energy Star® qualified: Yes
  • Net weight (kg): 39.6
  • Five-level wash: Yes
  • Gross weight (kg): 45.8
  • Salt light indicator: Yes
  • Rinse aid light indicator: Yes
  • List of programmes: 1 Hour, Auto, Favorite, Intensive, Normal
  • Number of options: 5
  • Water Usage per Cycle: 3.2
  • Net weight : 87.000
  • Number of wash cycles: 6
  • Drying system: Condensation Dry , Zeolite
  • Digital countdown indicator: Yes

Description

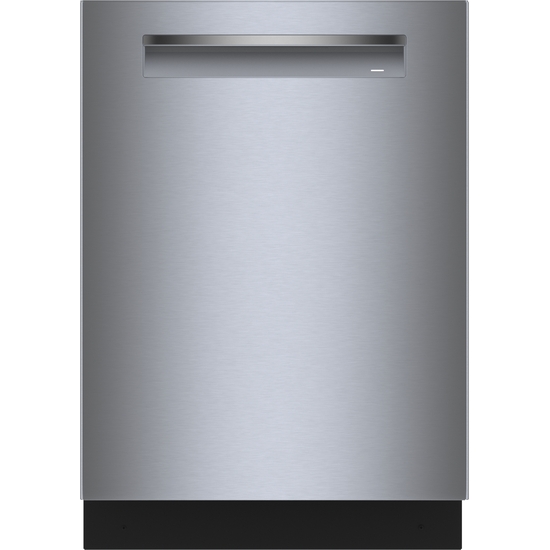

24-inch fully integrated built-in smart dishwasher

16 place setting capacity, ideal for large families or frequent entertaining

8 wash cycles to accommodate various dishwashing needs

Flexible 3rd rack for better space organization

Operates quietly at 42 dBA for a peaceful kitchen environment

PrecisionWash® with PowerControl™ for exceptional cleaning performance

Home Connect® feature allows remote control and monitoring via smartphone

Sleek stainless steel finish to complement modern kitchen designs

Features

• Home Connect®: access additional wash cycles to choose the right one for your needs with Smart Cycle.
• RackMatic®: adjusts the upper rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
• 10 years warranty: our promise against rust-through.
• Extremely Quiet Operation at 42 dBA: creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*
• CrystalDry™: transforms moisture into heat up to 176°F to give dishes, even plastics, the ultimate dry.
